TOYOTA COASTER HZB50L-ZGPRS / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

VALVE BODY OIL STRAINER ATM

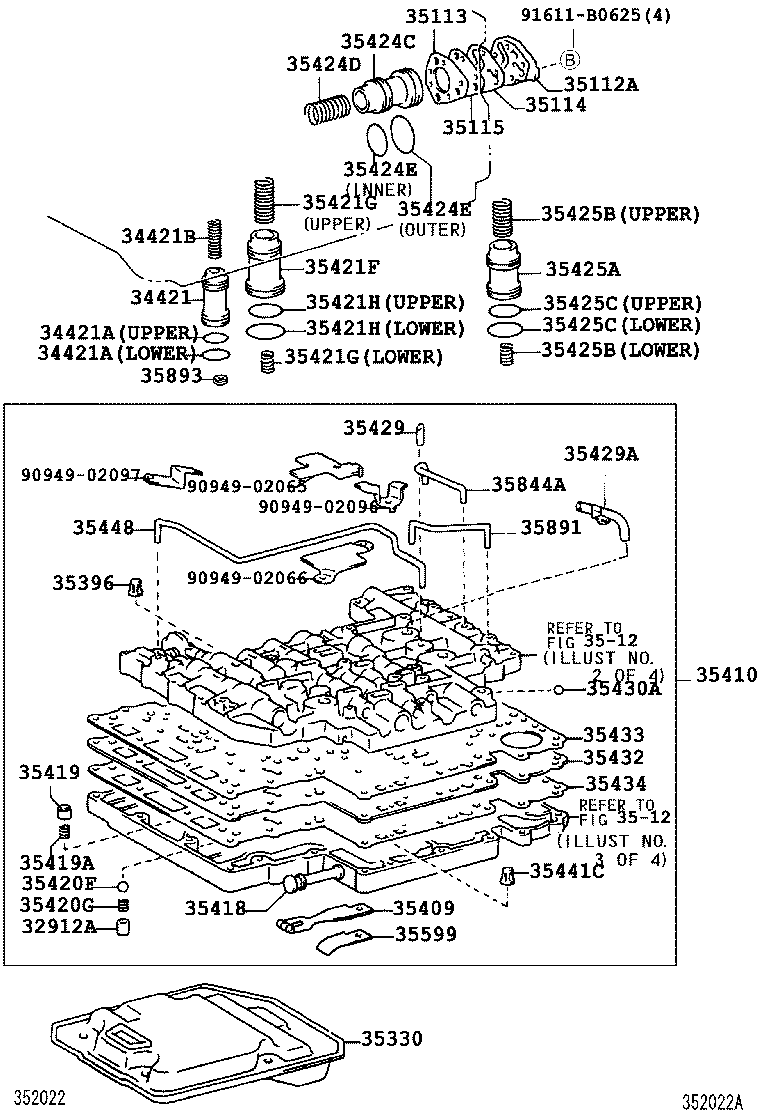

A441E ILLUST NO. 1 OF 4(9301-0108)4FC

 COASTER |  VALVE BODY OIL STRAINER ATM 32912A - CAGE, CHECK VALVE(FOR VALVE BODY) 34421 - PISTON, OVERDRIVE BRAKE ACCUMULATOR 34421A - RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) 34421A - RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) 34421B - SPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) 35112A - COVER, FRONT CLUTCH ACCUMULATOR 35113 - GASKET, FRONT CLUTCH ACCUMLATOR, NO.2 35114 - GASKET, FRONT CLUTCH ACCUMLATOR, NO.1 35115 - PLATE, FRONT CLUTCH ACCUMULATOR ** Refer Fig ** Refer Fig 35330 - STRAINER ASSY, VALVE BODY OIL 35396 - STRAINER, THROTTLE OIL 35409 - SPRING SUB-ASSY, MANUAL DETENT 35410 - BODY ASSY, TRANSMISSION VALVE 35418 - VALVE, MANUAL 35419 - VALVE, CHECK, NO.1 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) 35420F - BALL, CHECK, NO.1 35420G - SPRING, BARREL SHAPED 35421F - PISTON, ACCUMULATOR, NO.2 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) 35421H - RING (FOR ACCUMULATOR PISTON NO.2) 35421H - RING (FOR ACCUMULATOR PISTON NO.2) 35424C - PISTON, C-1 ACCUMULATOR 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) 35425A - PISTON, C-2 ACCUMULATOR 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35429 - TUBE, LINE PRESSURE 35429A - TUBE, LINE PRESSURE 35430A - BALL (FOR REAR UPPER VALVE BODY) 35432 - PLATE, VALVE BODY, NO.1 35433 - GASKET, VALVE BODY, NO.1 35434 - GASKET, VALVE BODY, NO.2 35441C - STRAINER, SOLENOID OIL 35448 - TUBE, 2-3 SHIFT VALVE APPLY 35599 - COVER, MANUAL DETENT SPRING 35844A - TUBE, ACCUMULATOR BACK PRESSURE, NO.1 35891 - TUBE, OVERDRIVE DIRECT CLUTCH 35893 - GASKET, CENTER SUPPORT APPLY  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
