TOYOTA CAMRY WG VCV10R-CWPGKW / ELECTRICAL / METER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

METER

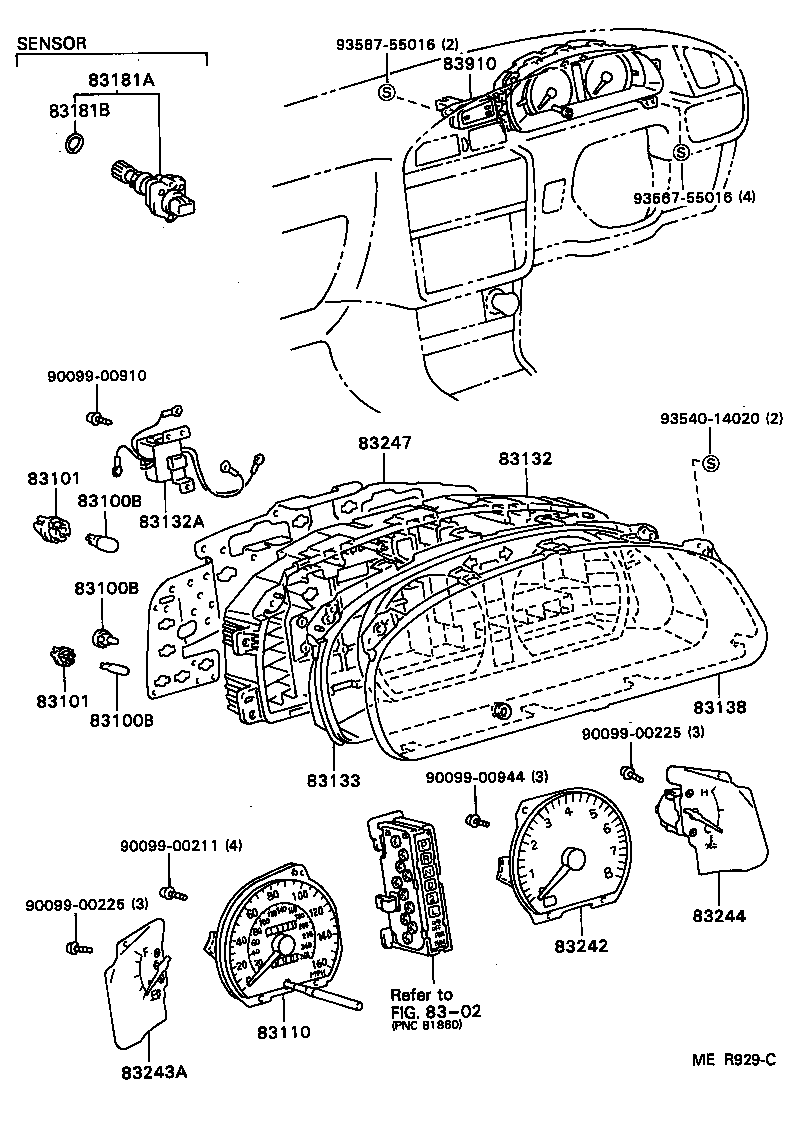

ILLUST NO. 1 OF 2(9106-9608)NAP..RHD

 CAMRY WG |  METER ** Refer Fig 83100B - BULB, COMBINATION METER, NO.1 83100B - BULB, COMBINATION METER, NO.1 83100B - BULB, COMBINATION METER, NO.1 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB 83110 - SPEEDOMETER ASSY 83132 - CASE, COMBINATION METER 83132A - CASE, METER 83133 - PLATE, COMBINATION METER, NO.1 83138 - GLASS, SPEEDOMETER 83181A - SENSOR, SPEEDOMETER 83181B - RING, O (FOR SPEEDOMETER SENSOR) 83242 - TACHOMETER ASSY, ENGINE 83243A - GAUGE SUB-ASSY, FUEL RECEIVER 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER 83247 - PLATE, METER CIRCUIT 83910 - CLOCK ASSY  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
