TOYOTA CAMRY WG VCV10R-CWPGKW / ELECTRICAL / HEATING AIR CONDITIONING HEATER UNIT BLOWER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

HEATING AIR CONDITIONING HEATER UNIT BLOWER

(9106-9608)NAP..RHD

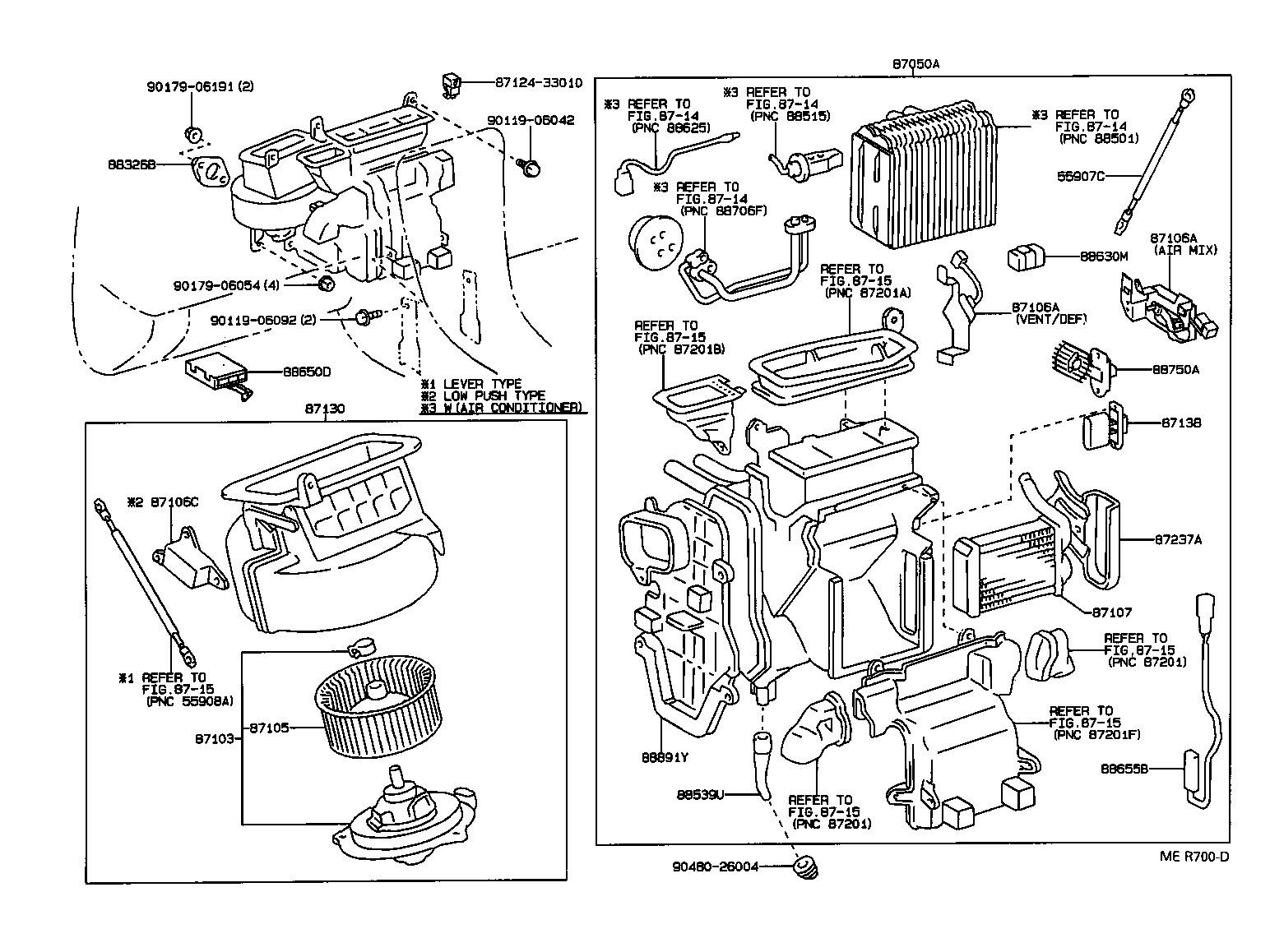

CAMRY WG | HEATING AIR CONDITIONING HEATER UNIT BLOWER 55907C - CABLE SUB-ASSY, WATER VALVE CONTROL 87050A - RADIATOR ASSY, AIR CONDITIONER 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN 87105 - FAN SUB-ASSY, HEATER BLOWER 87106A - SERVO SUB-ASSY, DAMPER 87106A - SERVO SUB-ASSY, DAMPER 87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER) 87107 - UNIT SUB-ASSY, HEATER RADIATOR ** Std Part 87130 - BLOWER ASSY, HEATER, FRONT 87138 - RESISTOR, HEATER BLOWER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 87237A - COVER, HEATER PIPING 88326B - PLATE, COVER 88539U - HOSE, COOLER DRAIN 88630M - RELAY ASSY, COOLER 88650D - AMPLIFIER ASSY 88655B - SWITCH, WATER TEMPERATURE 88750A - TRANSISTOR ASSY, BLOWER RESISTOR 88891Y - COVER, COOLER,NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
