FUEL INJECTION SYSTEM

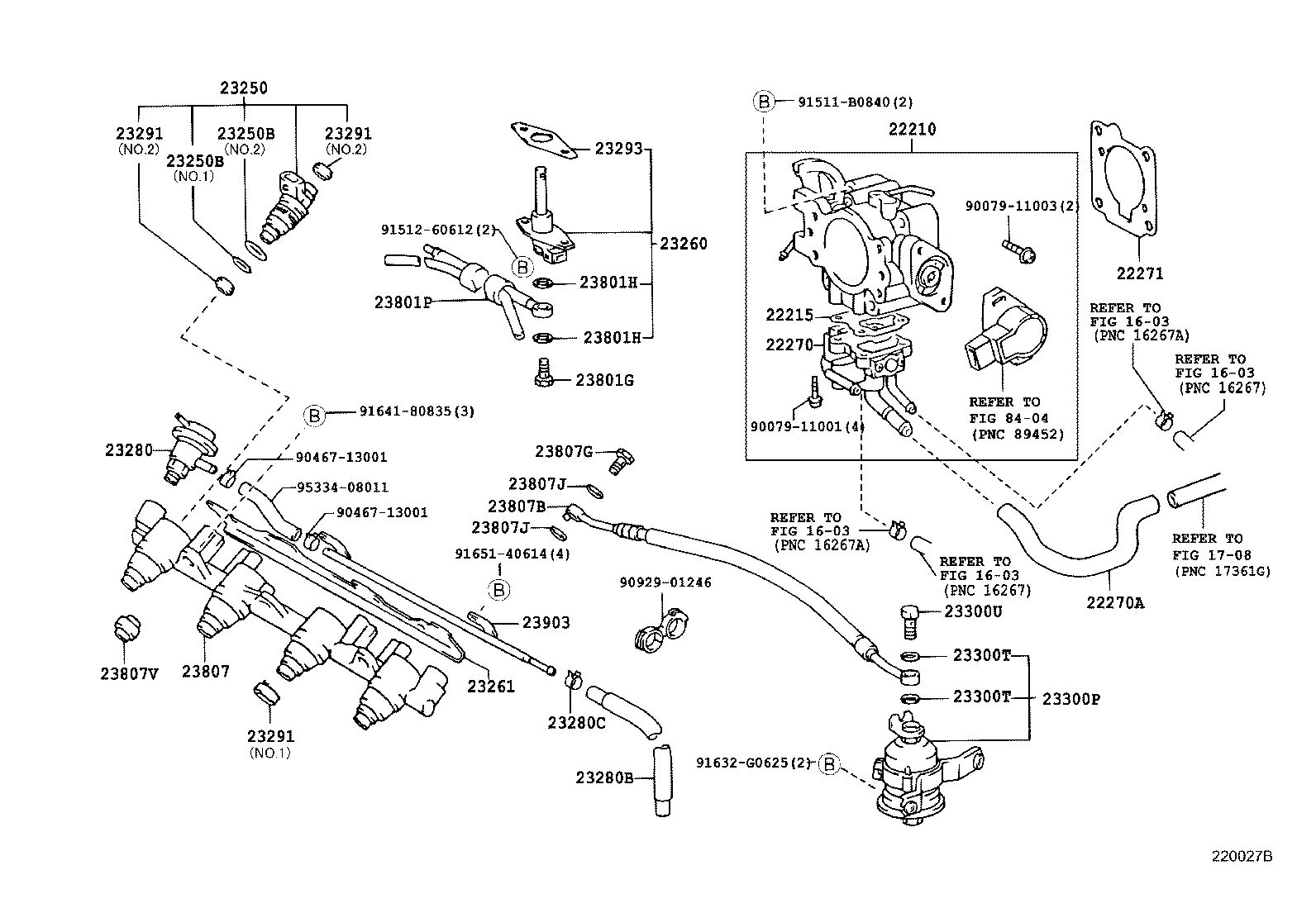

ILLUST NO. 1 OF 2(9402-9606)3SGTE

CELICA | FUEL INJECTION SYSTEM ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 22210 - BODY ASSY, THROTTLE 22215 - GASKET, THROTTLE BODY COVER 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) 22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE) 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250B - RING, O(FOR FUEL INJECTOR) 23260 - INJECTOR ASSY, COLD START FUEL 23261 - COVER, INJECTOR 23280 - REGULATOR ASSY, FUEL PRESSURE 23280B - HOSE, FUEL PRESSURE REGULATOR RETURN 23280C - CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE) 23291 - INSULATOR, INJECTOR VIBRATION 23291 - INSULATOR, INJECTOR VIBRATION 23291 - INSULATOR, INJECTOR VIBRATION 23293 - GASKET, COLD START INJECTOR 23300P - FILTER, FUEL(FOR EFI) 23300T - GASKET(FOR FUEL FILTER) 23300T - GASKET(FOR FUEL FILTER) 23300U - BOLT, UNION(FOR FUEL FILTER) 23801G - BOLT, UNION(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801P - PIPE SUB-ASSY, FUEL, NO.1 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807B - HOSE, FUEL DELIVERY PIPE 23807G - BOLT, UNION PIPE FUEL DELIVARY INLET 23807J - GASKET, PIPE FUEL DELIVARY INLET 23807J - GASKET, PIPE FUEL DELIVARY INLET 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 23903 - TUBE SUB-ASSY, FUEL, NO.3 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
