TOYOTA DYNA 100 YY100L-TBMBS / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

AIR CLEANER

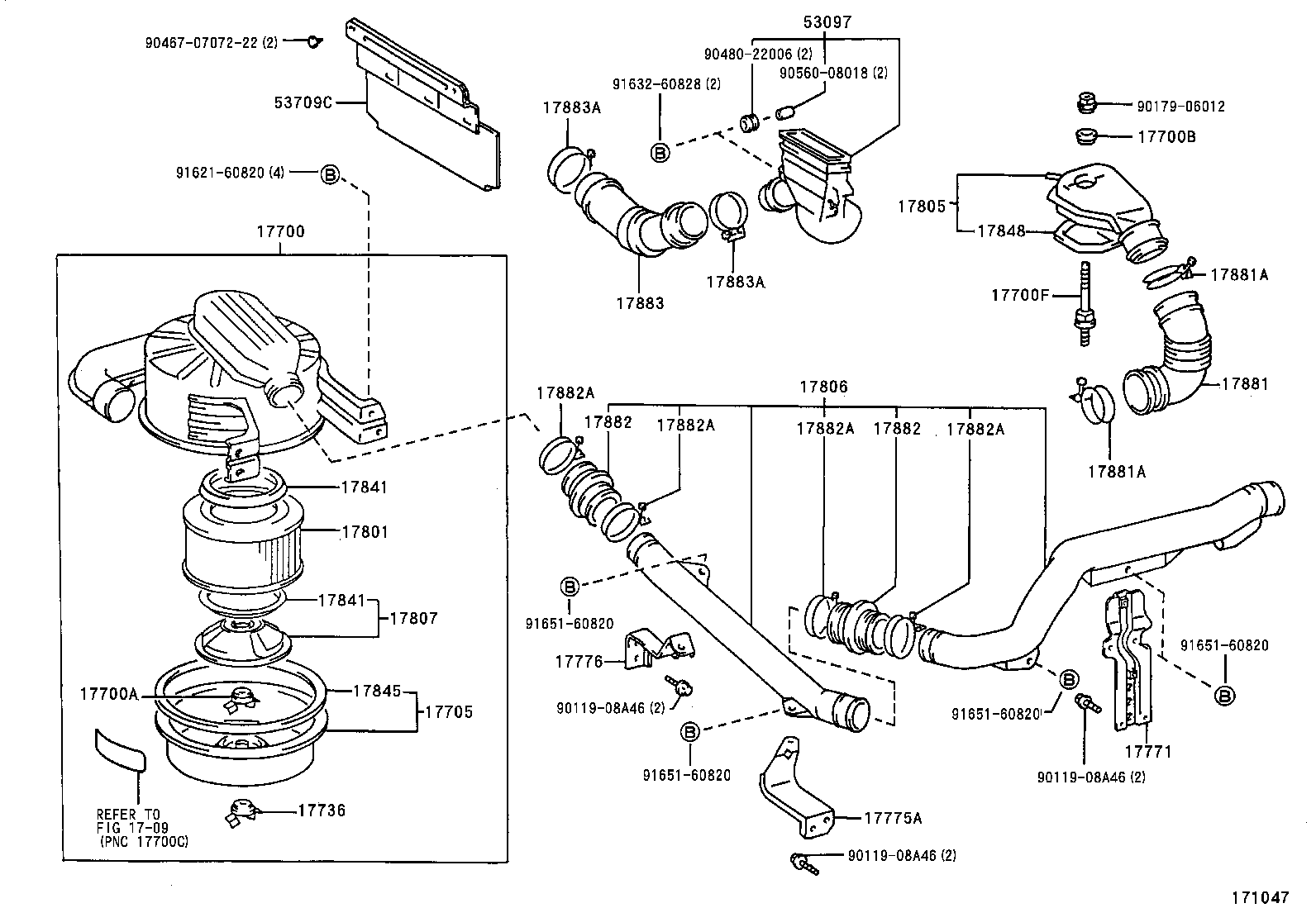

ILLUST NO. 1 OF 2(9505-9905)2Y..CBU

DYNA 100 | AIR CLEANER ** Refer Fig 17700 - CLEANER ASSY, AIR 17700A - NUT, WING(FOR AIR CLEANER) 17700B - WASHER, SEAL(FOR AIR CLEANER) 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) 17705 - CAP SUB-ASSY, AIR CLEANER 17736 - NUT, AIR CLEANER CASE 17771 - BRACKET, AIR CLEANER INLET DUCT 17775A - BRAKET, AIR CLEANER PIPE, NO.3 17776 - BRACKET, AIR CLEANER PIPE, NO.4 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17805 - CONNECTOR SUB-ASSY, INTAKE AIR 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET 17841 - GASKET, FILTER ELEMENT 17841 - GASKET, FILTER ELEMENT 17845 - GASKET, AIR CLEANER CAP 17848 - GASKET, AIR CLEANER TO CARBURETOR 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882 - HOSE, AIR CLEANER, NO.2 17882 - HOSE, AIR CLEANER, NO.2 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17883 - HOSE, AIR CLEANER, NO.3 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) 53097 - INLET SUB-ASSY 53709C - COVER SUB-ASSY, AIR CLEANER INLET ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
