TOYOTA HIACE HIACE S B V RCH18L-RGMDEW / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

POWER STEERING TUBE

(9608-9804)RCH18,28

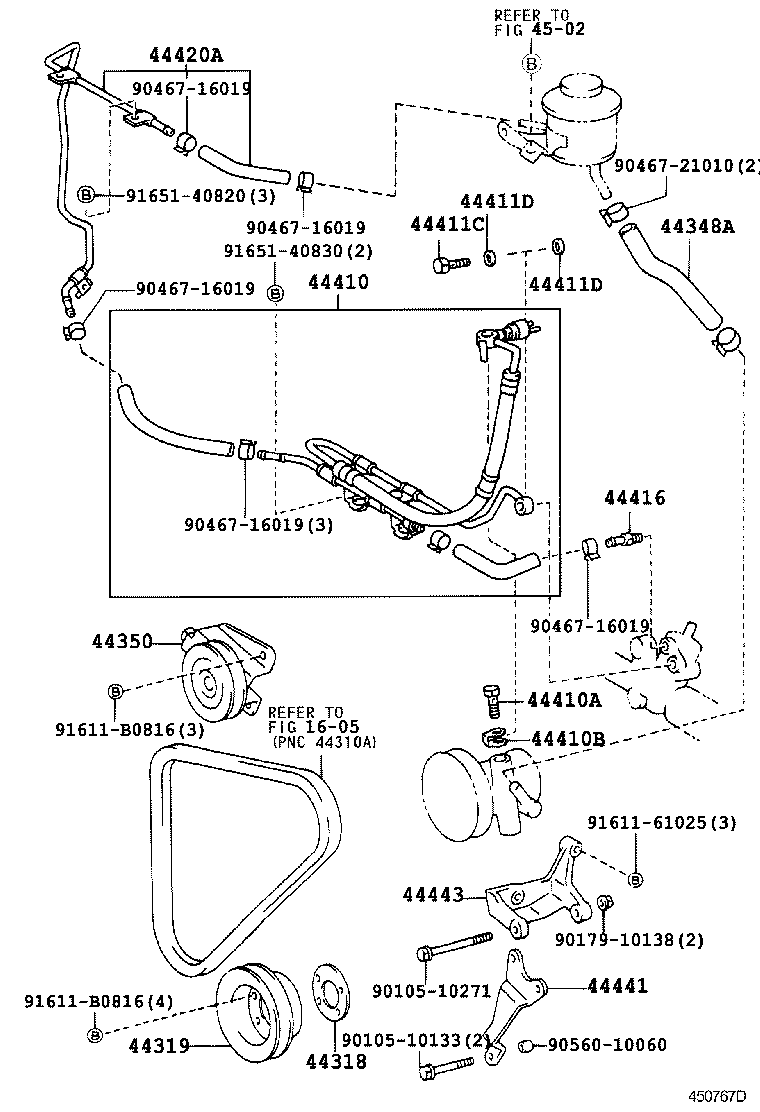

HIACE HIACE S B V | POWER STEERING TUBE ** Refer Fig 44318 - SPACER, VANE PUMP DRIVE PULLEY 44319 - PULLEY, VANE PUMP DRIVE 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44350 - PULLEY ASSY, POWER STEERING IDLE 44410 - TUBE ASSY, PRESSURE FEED 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) 44410B - GASKET(FOR PRESSURE FEED TUBE) 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44420A - TUBE ASSY, RETURN 44441 - BRACKET, PUMP, FRONT 44443 - BRACKET, PUMP ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
