TOYOTA AVENSIS CT220L-AEMNXW / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

BRAKE TUBE CLAMP

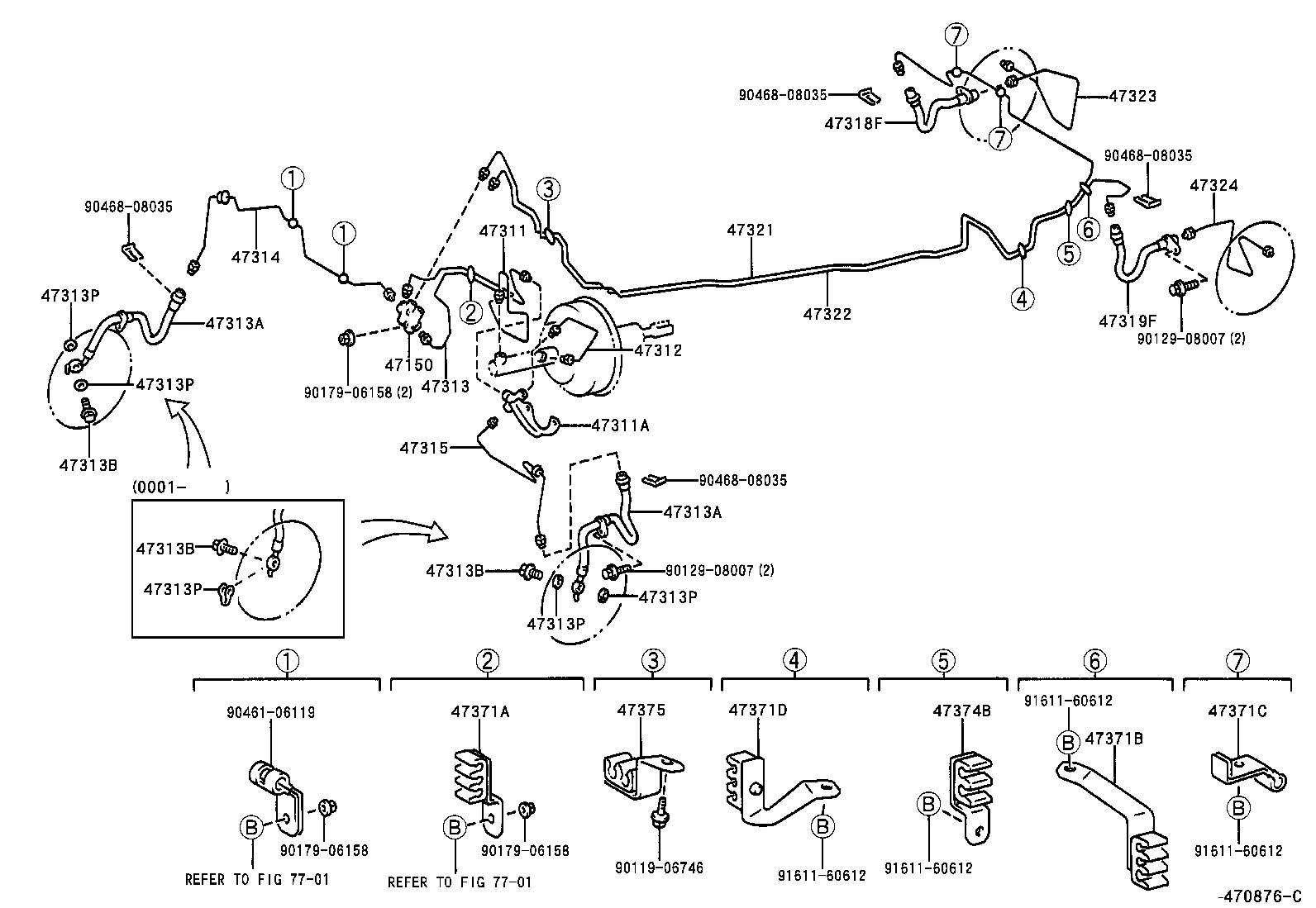

ILLUST NO. 1 OF 3(9710-0007)AT220,CT220..LHD..SED..TERRA..EFI,TD

AVENSIS | BRAKE TUBE CLAMP 47150 - VALVE ASSY, PROPORTIONING 47311 - TUBE, FRONT BRAKE, NO.1 47311A - WAY(FOR FRONT BRAKE TUBE) 47312 - TUBE, FRONT BRAKE, NO.2 47313 - TUBE, FRONT BRAKE, NO.3 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47314 - TUBE, FRONT BRAKE, NO.4 47315 - TUBE, FRONT BRAKE, NO.5 47318F - HOSE, FLEXIBLE(FOR REAR RH) 47319F - HOSE, FLEXIBLE(FOR REAR LH) 47321 - TUBE, REAR BRAKE, NO.1 47322 - TUBE, REAR BRAKE, NO.2 47323 - TUBE, REAR BRAKE, NO.3 47324 - TUBE, REAR BRAKE, NO.4 47371A - CLAMP, BRAKE TUBE, NO.1 47371B - CLAMP, BRAKE TUBE, NO.6 47371C - CLAMP, BRAKE TUBE, NO.7 47371D - CLAMP, BRAKE TUBE, NO.8 47374B - CLAMP, BRAKE TUBE, NO.4 47375 - CLAMP, BRAKE TUBE, NO.5 ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
