TOYOTA AVENSIS CT220L-AEMNXW / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

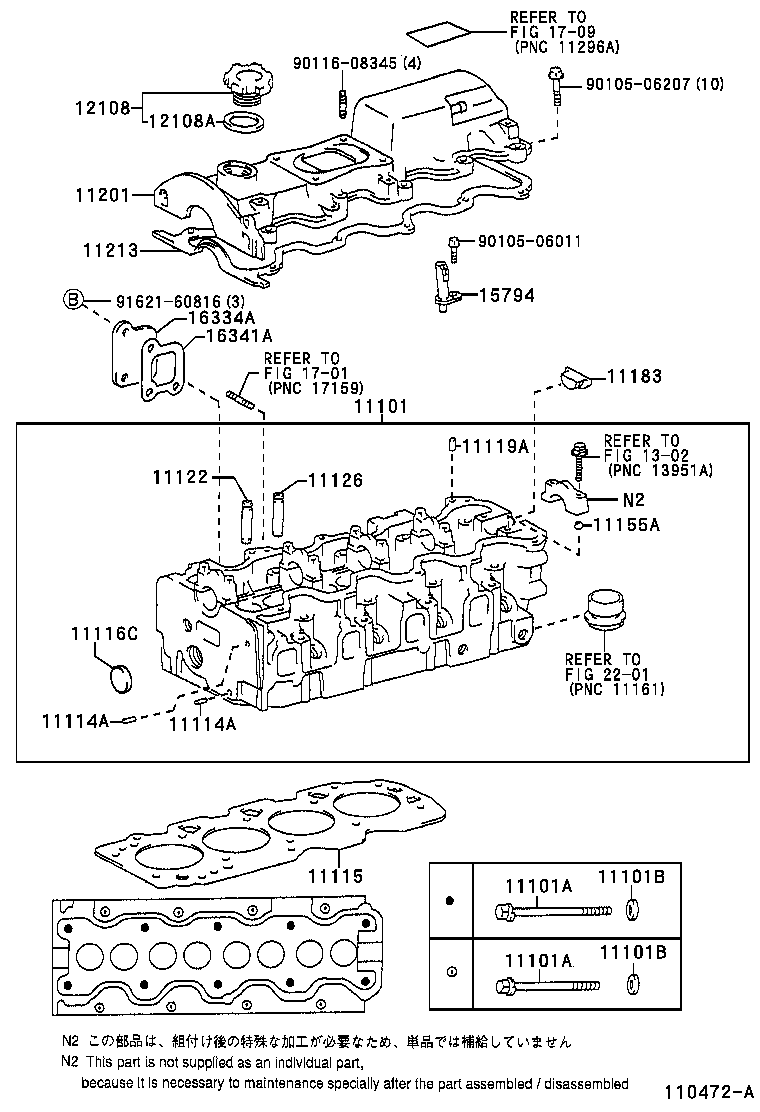

CYLINDER HEAD

(9710-0007)2CT

AVENSIS | CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101A - BOLT(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11114A - PIN, STRAIGHT 11114A - PIN, STRAIGHT 11115 - GASKET, CYLINDER HEAD 11116C - PLUG, TIGHT, NO.3 11119A - PIN, STRAIGHT, NO.1 11122 - BUSH, INTAKE VALVE GUIDE 11126 - BUSH, EXHAUST VALVE GUIDE 11155A - PIN, RING W/HEAD 11183 - PLUG, SEMICIRCULAR 11201 - COVER SUB-ASSY, CYLINDER HEAD 11213 - GASKET, CYLINDER HEAD COVER 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) ** Refer Fig 15794 - NOZZLE, CYLINDER HEAD OIL 16334A - COVER, WATER OUTLET HOUSING 16341A - GASKET, WATER OUTLET ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part
