TOYOTA CAMRY JPP SXV20L-AEPNKK / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

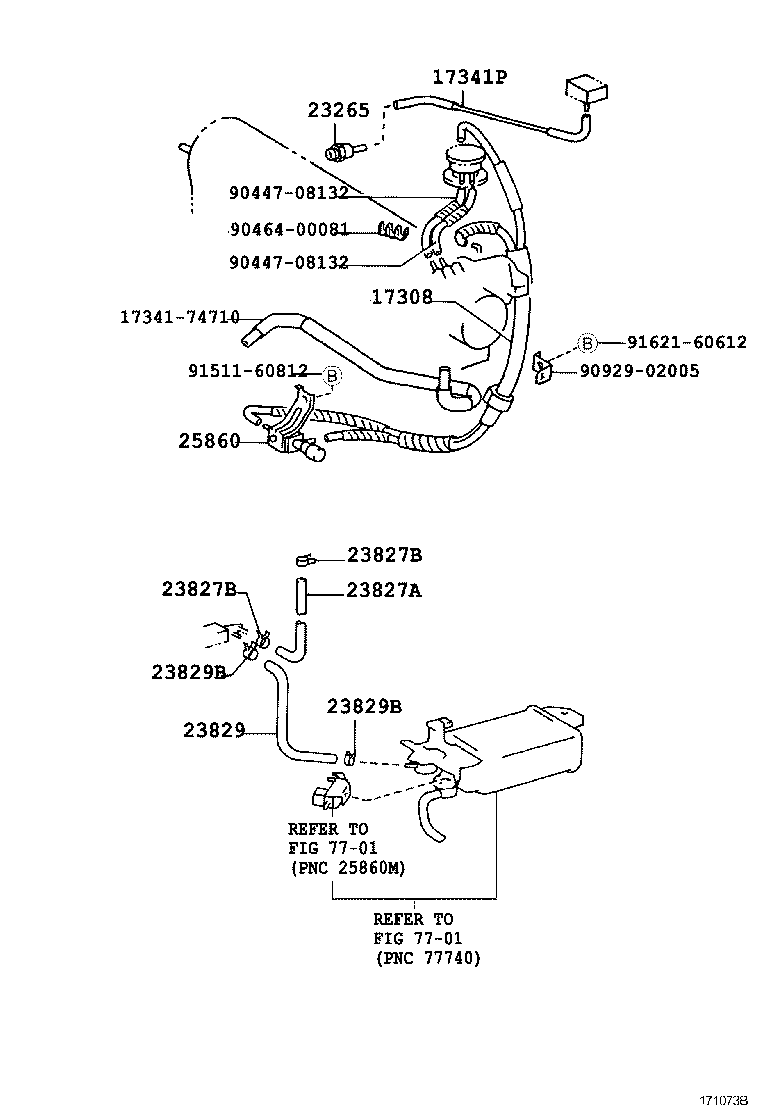

VACUUM PIPING

(9708-9808)5SFE..JPP

 CAMRY JPP |  VACUUM PIPING 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)  ** Std Part 17341P - HOSE, AIR 23265 - FILTER, GAS, NO.1 23827A - HOSE, FUEL VAPOR FEED, NO.2 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) 23829 - HOSE, FUEL VAPOR FEED, NO.3 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
