TOYOTA COASTER BB50R-ZEMQW / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

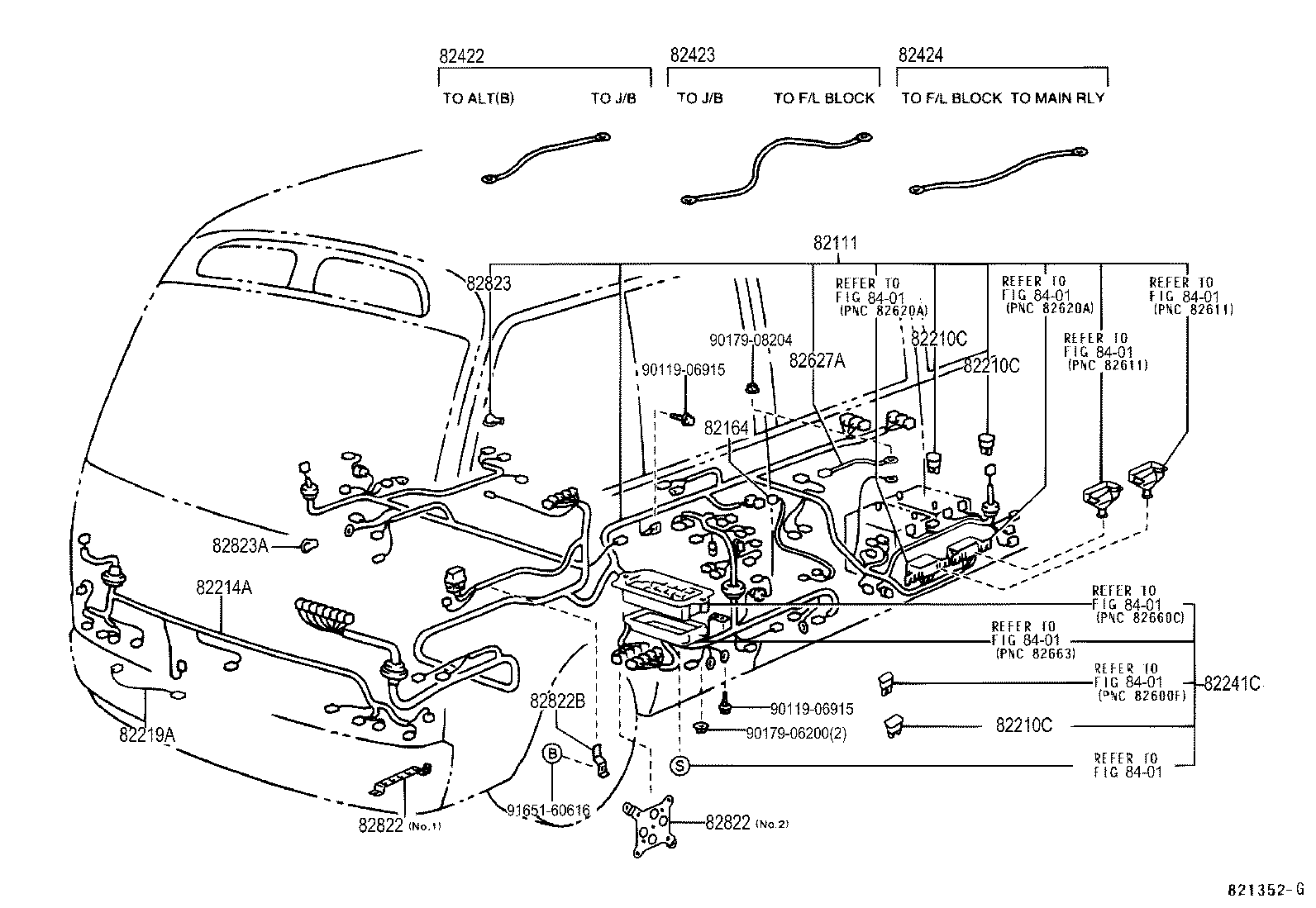

ENGINE ROOM ILLUST NO. 1 OF 9(9301-9907)RHD ; (9907-0608)RHD..IV..6F

 COASTER |  WIRING CLAMP 82111 - WIRE, ENGINE ROOM MAIN 82164 - WIRE, FRAME 82210C - FUSIBLE LINK 82210C - FUSIBLE LINK 82210C - FUSIBLE LINK 82214A - WIRE, LAMP 82219A - WIRE, SENSOR 82241C - WIRE, RELAY 82422 - WIRE, ALTERNATOR SUB, NO.1 82423 - WIRE, ALTERNATOR SUB, NO.2 82424 - WIRE, ALTERNATOR SUB, NO.3 82627A - WIRE, FUSIBLE LINK 82822 - BRACKET,CONNECTOR BLOCK 82822 - BRACKET,CONNECTOR BLOCK 82822B - BRACKET, CONNECTOR BLOCK 82823 - CAP, TERMINAL, NO.1 82823A - CAP, TERMINAL, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
