TOYOTA CAMRY JPP MCV20L-AEPGKK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

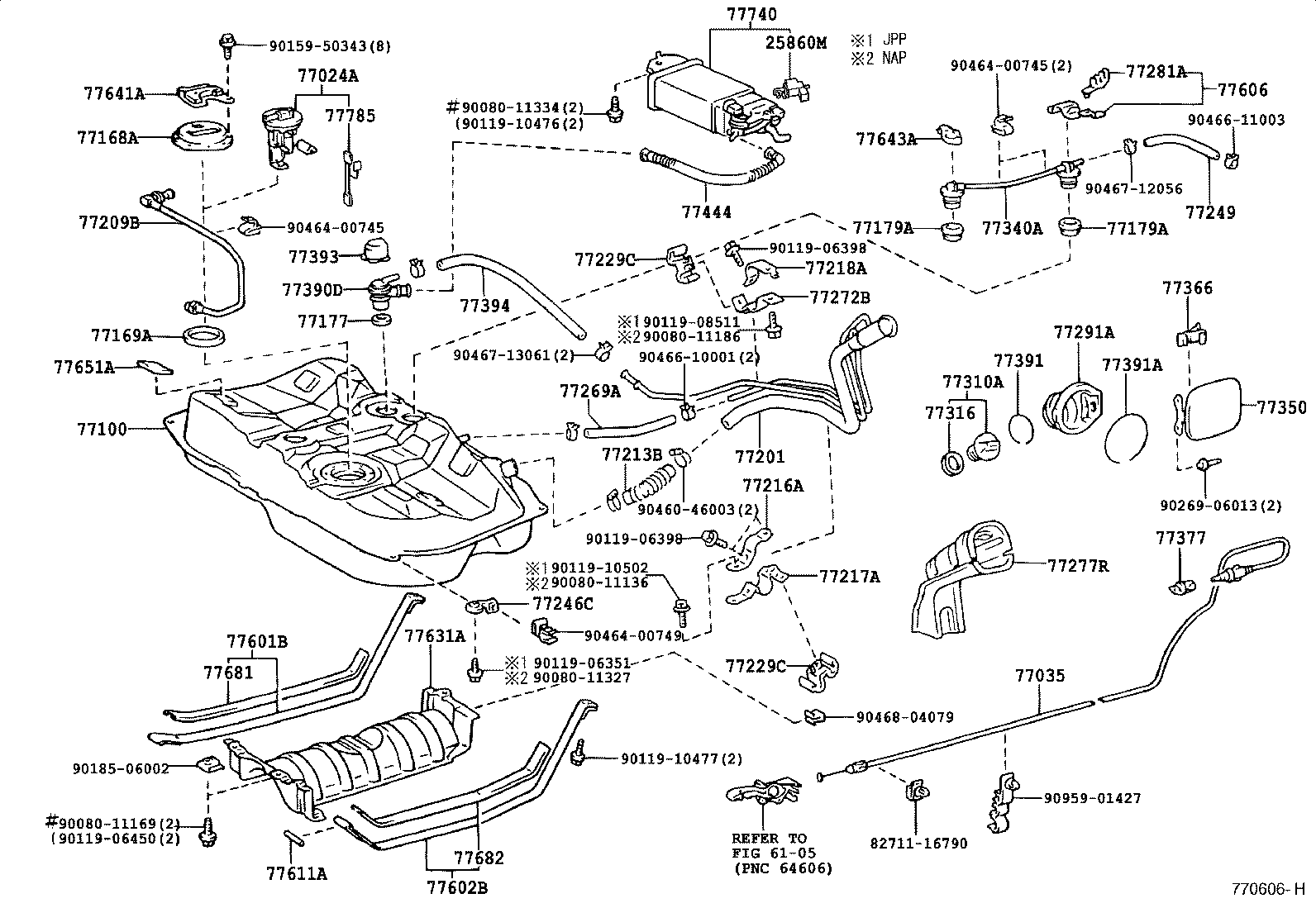

FUEL TANK TUBE

ILLUST NO. 1 OF 2(9708- )SXV20..JPP ; (9808- )MCV20..JPP

CAMRY JPP | FUEL TANK TUBE 25860M - VALVE ASSY, VACUUM SWITCING ** Refer Fig 77024A - PLATE SUB-ASSY, FUEL SUCTION 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77100 - TANK ASSY, FUEL 77168A - PLATE, FUEL TANK VENT TUBE SET 77169A - GASKET, FUEL SUCTION TUBE SET 77177 - GASKET, CHECK VALVE 77179A - GASKET, FUEL TANK BREATHER TUBE 77179A - GASKET, FUEL TANK BREATHER TUBE 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77209B - TUBE SUB-ASSY, FUEL PUMP 77213B - HOSE, FUEL TANK TO FILLER PIPE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 77229C - CLAMP, BREATHER TUBE 77229C - CLAMP, BREATHER TUBE 77246C - SUPPORT, FUEL MAIN TUBE 77249 - HOSE, FUEL EMISSION 77269A - HOSE, FUEL TANK BREATHER 77272B - SUPPORT, BREATHER TUBE, NO.1 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77281A - CLAMP, FUEL FILLER PIPE 77291A - SHIELD, FUEL TANK FILLER PIPE 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77340A - VALVE ASSY, FUEL CUT OFF W/TUBE 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77390D - VALVE ASSY, FUEL TANK OVER FILL CHECK 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77393 - PROTECTOR, CHECK VALVE 77394 - HOSE, VALVE TO FUEL FILLER PIPE 77444 - HOSE, FUEL TANK VENT 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77611A - PIN (FOR FUEL TANK BAND) 77631A - PROTECTOR, FUEL TANK, LOWER CENTER 77641A - PROTECTOR, FUEL TANK, NO.1 77643A - PROTECTOR, FUEL TANK, NO.3 77651A - CUSHION, FUEL TANK, NO.1 77681 - SEAT, FUEL TANK BAND, RH 77682 - SEAT, FUEL TANK BAND, LH 77740 - CANISTER ASSY, CHARCOAL 77785 - HARNESS, FUEL PUMP ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
