INJECTION PUMP BODY

NB PUMP (9605- )15BFT..BB50..CHI,EUR ; (9605- )15B

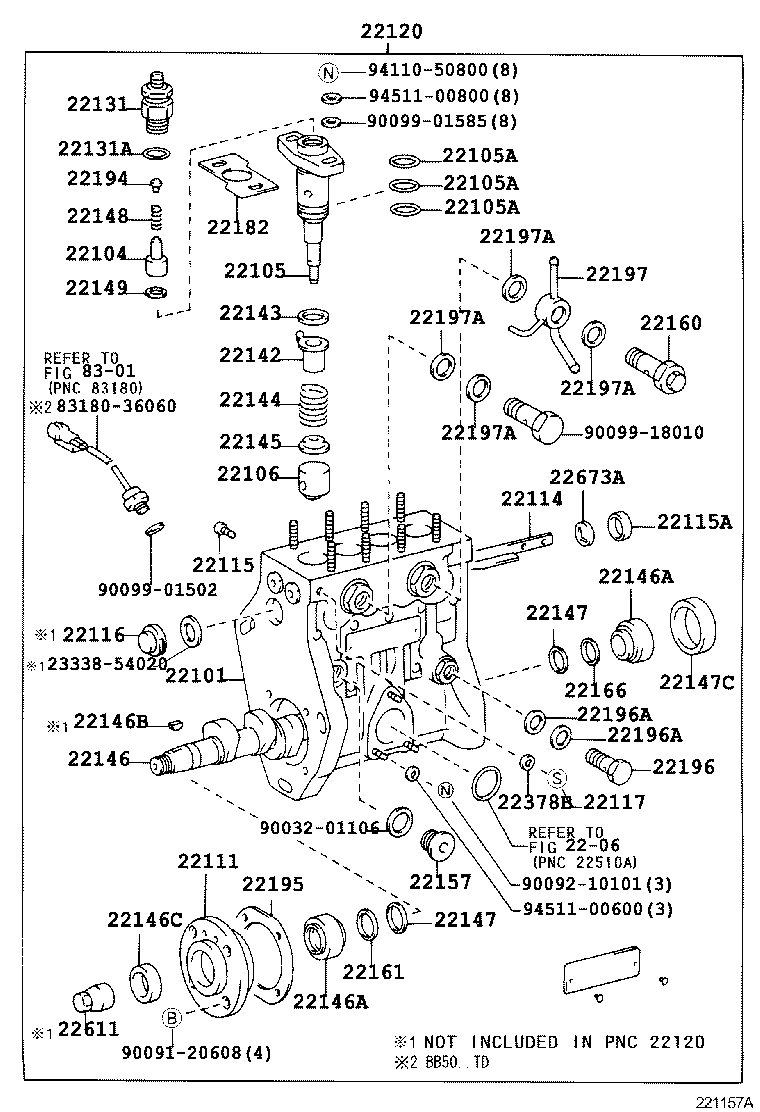

COASTER | INJECTION PUMP BODY ** Refer Fig 22101 - HOUSING SUB-ASSY, INJECTION PUMP 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY 22105 - ELEMENT SUB-ASSY, INJECTION PUMP 22105A - RING, O(FOR PUMP ELEMENT) 22105A - RING, O(FOR PUMP ELEMENT) 22105A - RING, O(FOR PUMP ELEMENT) 22106 - TAPPET SUB-ASSY, INJECTION PUMP 22111 - COVER, INJECTION PUMP CAMSHAFT BEARING 22114 - RACK, CONTROL 22115 - SCREW, RACK GUIDE 22115A - BUSH, SCREW 22116 - COVER, CONTROL RACK 22117 - SCREW, AIR BLEEDER 22120 - BODY ASSY,INJECTION 22131 - HOLDER, DELIVERY VALVE 22131A - RING, O(FOR DELIVERY VALVE HOLDER) 22142 - SLEEVE, PLUNGER CONTROL 22143 - SEAT, SPRING UPPER 22144 - SPRING, PUMP PLUNGER 22145 - SEAT, SPRING, LOWER 22146 - CAMSHAFT, INJECTION PUMP 22146A - BEARING(FOR INJECTION CAMSHAFT) 22146A - BEARING(FOR INJECTION CAMSHAFT) 22146B - KEY(FOR INJECTION PUMP CAMSHAFT) 22146C - SEAL, OIL, INJECTION PUMP CAMSHAFT 22147 - RING, CAMSHAFT ADJUST 22147 - RING, CAMSHAFT ADJUST 22147C - RETAINER, BEARING 22148 - SPRING, DELIVERY VALVE 22149 - GASKET, DELIVERY VALVE 22157 - PLUG, INJECTION PUMP FELT PLATE 22160 - SCREW SUB-ASSY, OVERFLOW 22161 - PLATE, CAMSHAFT SHIM 22166 - PLATE, CAMSHAFT SHIM 22182 - PLATE, TAPPET ADJUSTING SHIM 22194 - STOPPER, DELIVERY VALVE 22195 - GASKET, BEARING COVER 22196 - SCREW, FUEL INLET FOLLOW 22196A - WASHER(FOR INLET FOLLOW SCREW) 22196A - WASHER(FOR INLET FOLLOW SCREW) 22197 - NIPPLE, OVER FLOW 22197A - WASHER(FOR OVER FLOW NIPPLE) 22197A - WASHER(FOR OVER FLOW NIPPLE) 22197A - WASHER(FOR OVER FLOW NIPPLE) 22197A - WASHER(FOR OVER FLOW NIPPLE) 22378B - WASHER, DRAIN SCREW 22611 - NUT, TIMER ROUND 22673A - BUSHING, CONTROL RACK ** Std Part ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
