TOYOTA COASTER BB58L-ZEFSZ / TOOL-ENGINE-FUEL / CYLINDER BLOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

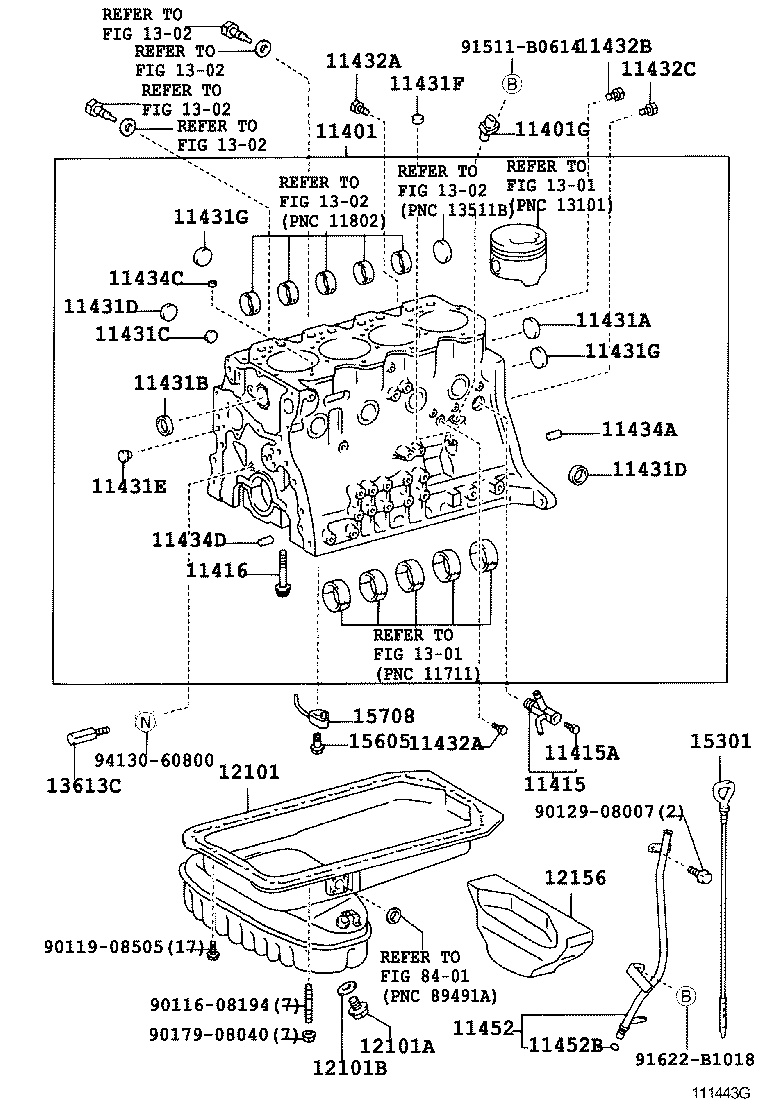

CYLINDER BLOCK

(9907-0105)15BFTE

COASTER | CYLINDER BLOCK 11401 - BLOCK SUB-ASSY, CYLINDER 11401G - SENSOR, CRANK POSITION 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) 11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) 11431G - PLUG, TIGHT 11431G - PLUG, TIGHT 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 11432C - PLUG, W/HEAD TAPER SCREW, NO.3 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) 11452 - GUIDE, OIL LEVEL GAGE 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) 12101 - PAN SUB-ASSY, OIL 12101A - PLUG(FOR OIL PAN DRAIN) 12101B - GASKET(FOR OIL PAN DRAIN PLUG) 12156 - INSULATOR, OIL PAN ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 13613C - NOZZLE, OIL 15301 - GAGE SUB-ASSY, OIL LEVEL 15605 - VALVE SUB-ASSY, OIL CHECK 15708 - NOZZLE SUB-ASSY, OIL, NO.1 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
