TOYOTA DYNA XZU320L-TMMQWR3 / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

BRAKE TUBE CLAMP

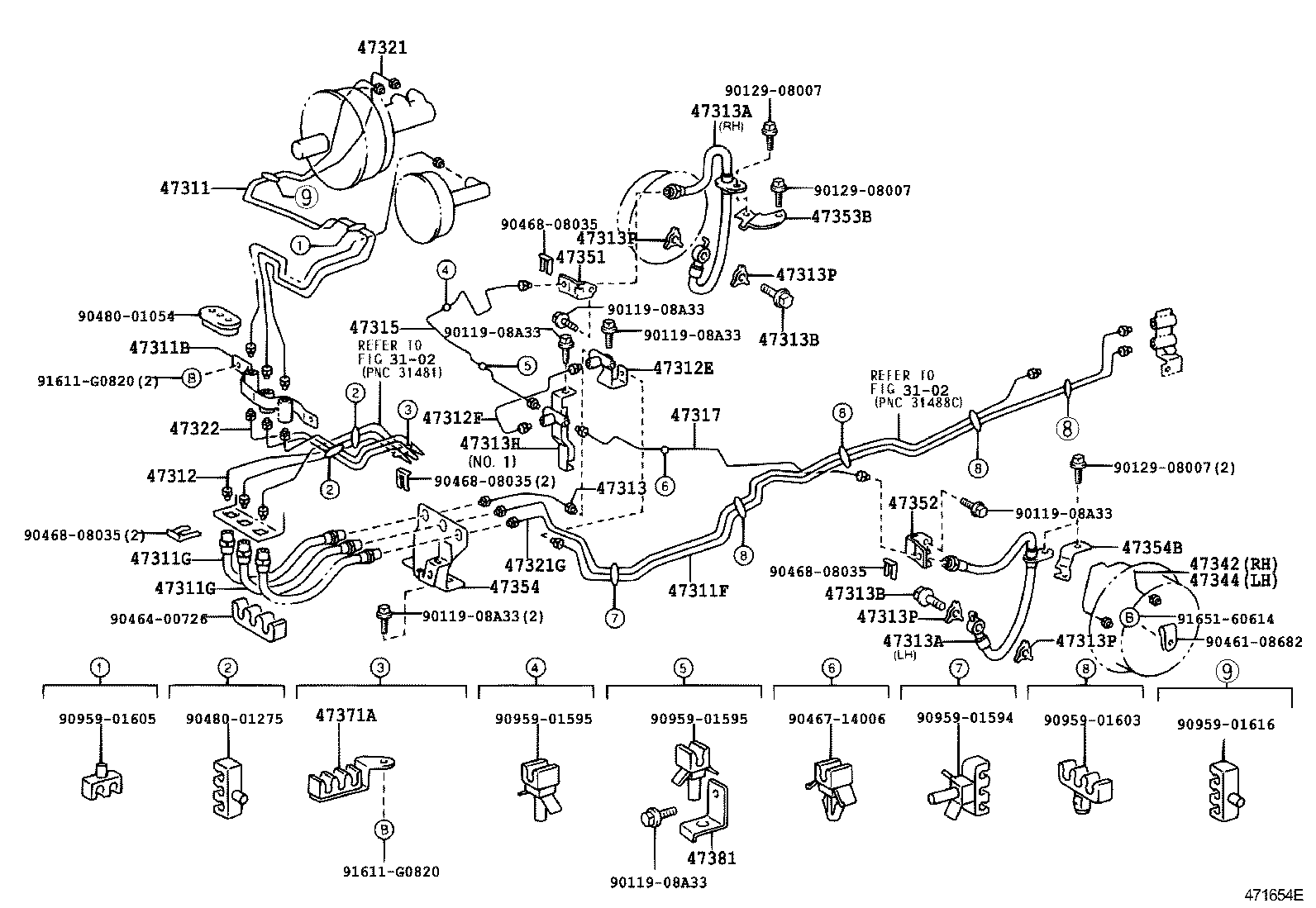

ILLUST NO. 1 OF 4(9907- )XZU320

DYNA | BRAKE TUBE CLAMP ** Refer Fig ** Refer Fig 47311 - TUBE, FRONT BRAKE, NO.1 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) 47311F - TUBE, FRONT BRAKE, FRAME NO.1 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) 47312 - TUBE, FRONT BRAKE, NO.2 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 47313 - TUBE, FRONT BRAKE, NO.3 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47315 - TUBE, FRONT BRAKE, NO.5 47317 - TUBE, FRONT BRAKE, NO.7 47321 - TUBE, REAR BRAKE, NO.1 47321G - TUBE, REAR BRAKE, FRAME NO.1 47322 - TUBE, REAR BRAKE, NO.2 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) 47353B - BRACKET, FLEXIBLE HOSE, NO.3 47354 - BRACKET, FRONT FLEXIBLE HOSE 47354B - BRACKET, FLEXIBLE HOSE, NO.4 47371A - CLAMP, BRAKE TUBE, NO.1 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
