TOYOTA DYNA200 BU101R-TSMLS3 / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

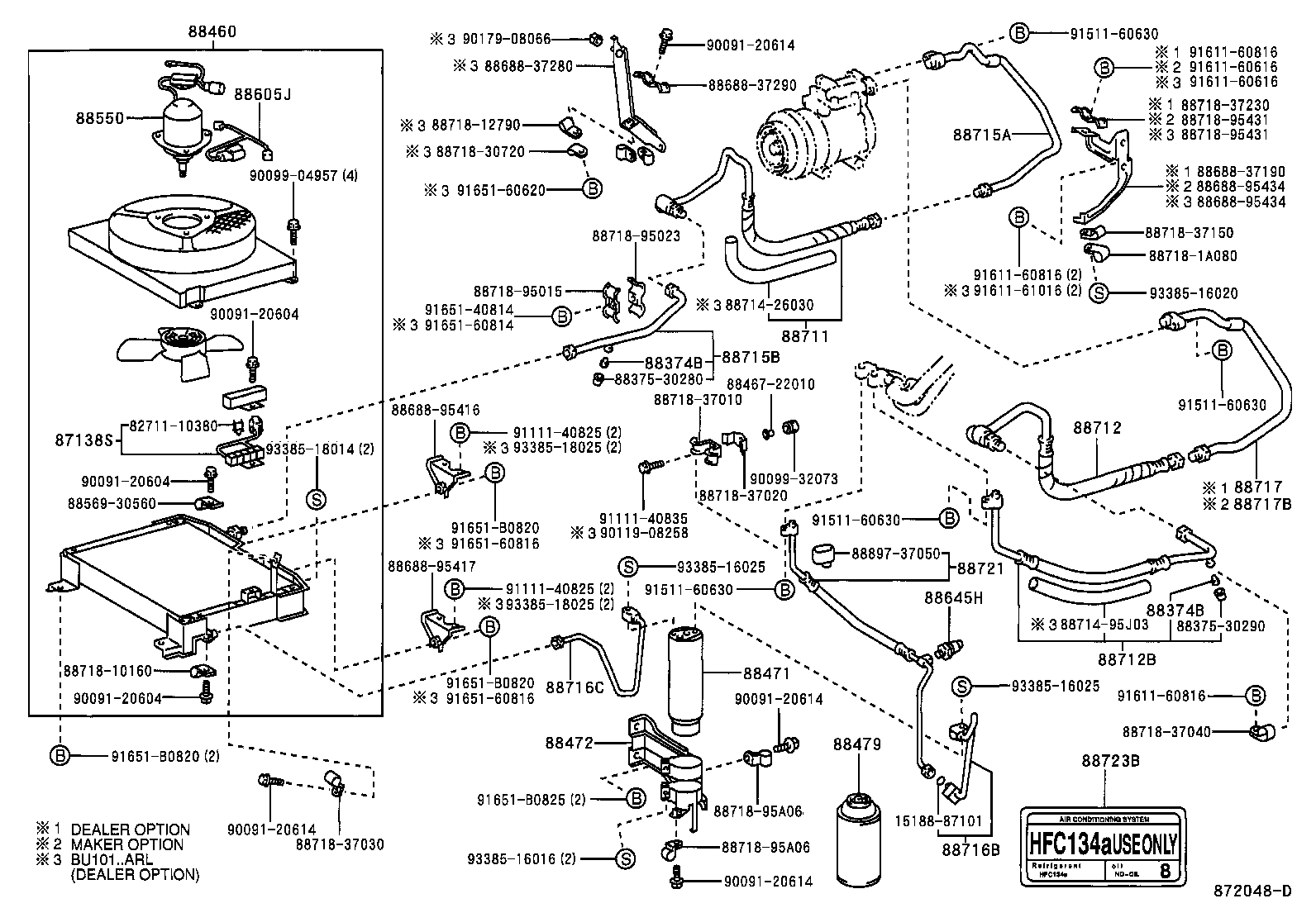

HEATING AIR CONDITIONING COOLER PIPING

ILLUST NO. 1 OF 3(9505- )BU141..RHD..GEN ; (9505- )BU100,10

DYNA200 | HEATING AIR CONDITIONING COOLER PIPING ** Std Part ** Std Part 87138S - RESISTOR, BLOWER 88374B - VALVE, SERVICE, NO.1 88374B - VALVE, SERVICE, NO.1 ** Std Part ** Std Part 88460 - CONDENSER ASSY, COOLER ** Std Part 88471 - TANK, RECEIVER AIR CONDITIONER 88472 - BRACKET, RECEIVER TANK, NO.1 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) ** Std Part 88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING 88645H - SWITCH, PRESSURE NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88712B - HOSE, COOLER REFRIGERANT SUCTION ** Std Part ** Std Part 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716C - PIPE, COOLER REFRIGERANT LIQUID, C 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 88717B - PIPE, COOLER REFRIGERANT SUCTION, B ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88721 - PIPE, COOLER REFRIGERANT SUCTION, NO.5 88723B - LABEL, COOLER SERVICE CAUTION ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
