TOYOTA DYNA200 RZU100L-TQMGK3 / POWERTRAIN-CHASSIS / REAR AXLE SHAFT HUB

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

REAR AXLE SHAFT HUB

(9505- )BU10#,RZU100..WT..15T,20T..TB

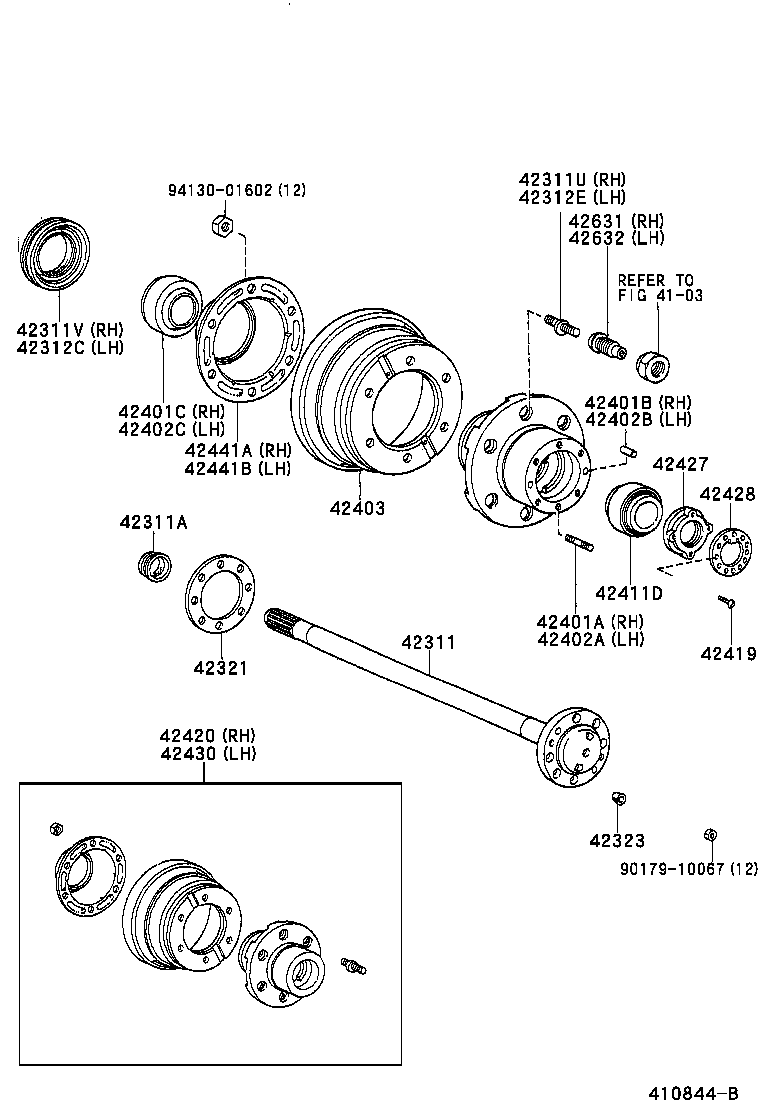

DYNA200 | REAR AXLE SHAFT HUB ** Refer Fig 42311 - SHAFT, REAR AXLE 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) 42311U - BOLT, HUB (FOR REAR AXLE RH) 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) 42312E - BOLT, HUB (FOR REAR AXLE LH) 42321 - GASKET, REAR AXLE SHAFT 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) 42401C - BEARING (FOR REAR AXLE HUB INNER RH) 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) 42402C - BEARING (FOR REAR AXLE HUB INNER LH) 42403 - DRUM SUB-ASSY, REAR BRAKE 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) 42419 - SCREW, REAR AXLE BEARING LOCK NUT 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH 42427 - NUT, REAR AXLE BEARING LOCK 42428 - PLATE, REAR AXLE LOCK NUT 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH 42441A - DEFLECTOR, BRAKE DRUM OIL RH 42441B - DEFLECTOR, BRAKE DRUM OIL LH 42631 - BOLT, DOUBLE WHEEL STOP, RH 42632 - BOLT, DOUBLE WHEEL STOP, LH ** Std Part ** Std Part
