TOYOTA HIACE HIACE S B V RCH13L-SRSRKW / POWERTRAIN-CHASSIS / THROTTLE LINK VALVE LEVER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

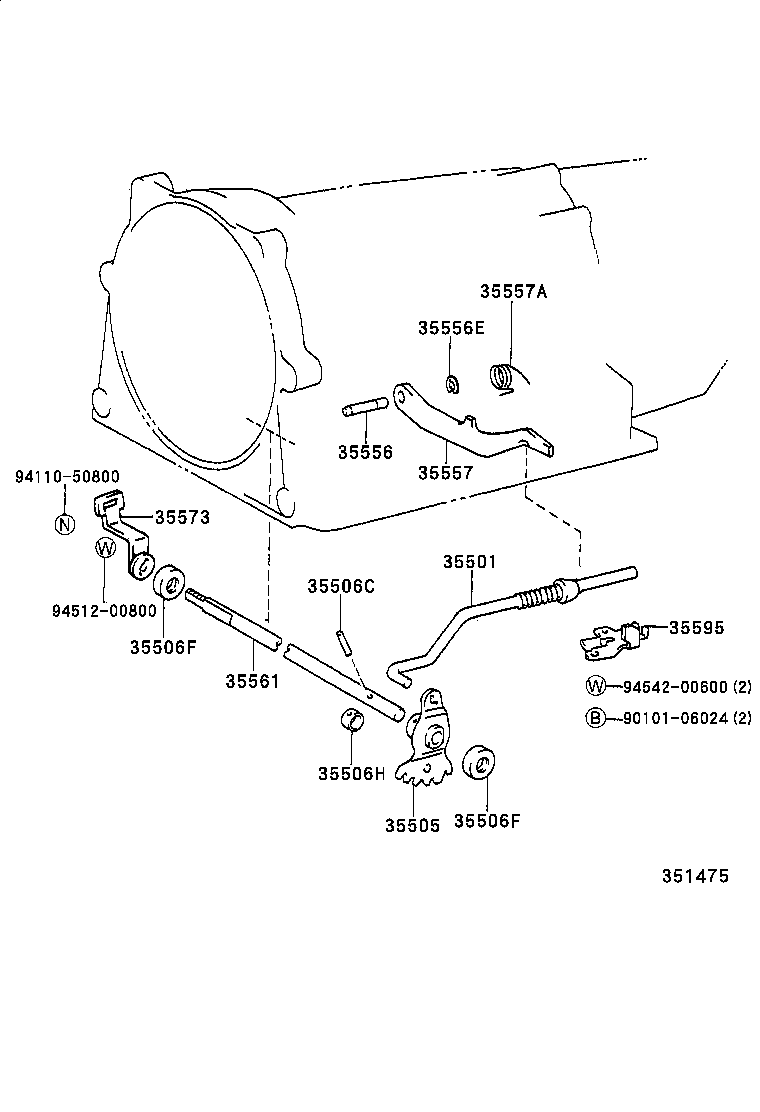

THROTTLE LINK VALVE LEVER ATM

A43DL,A45DL ILLUST NO. 1 OF 2(9508-0108)ATM

HIACE HIACE S B V | THROTTLE LINK VALVE LEVER ATM 35501 - ROD SUB-ASSY, PARKING LOCK 35505 - LEVER SUB-ASSY, MANUAL VALVE 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) 35556 - SHAFT, PARKING LOCK PAWL 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) 35557 - PAWL, PARKING LOCK 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) 35561 - SHAFT, MANUAL VALVE LEVER 35573 - LEVER, TRANSMISSION CONTROL SHAFT, LH 35595 - BRACKET, PARKING LOCK PAWL ** Std Part ** Std Part ** Std Part ** Std Part
