TOYOTA LAND CRUISER 100 UZJ100L-GNPEKA / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

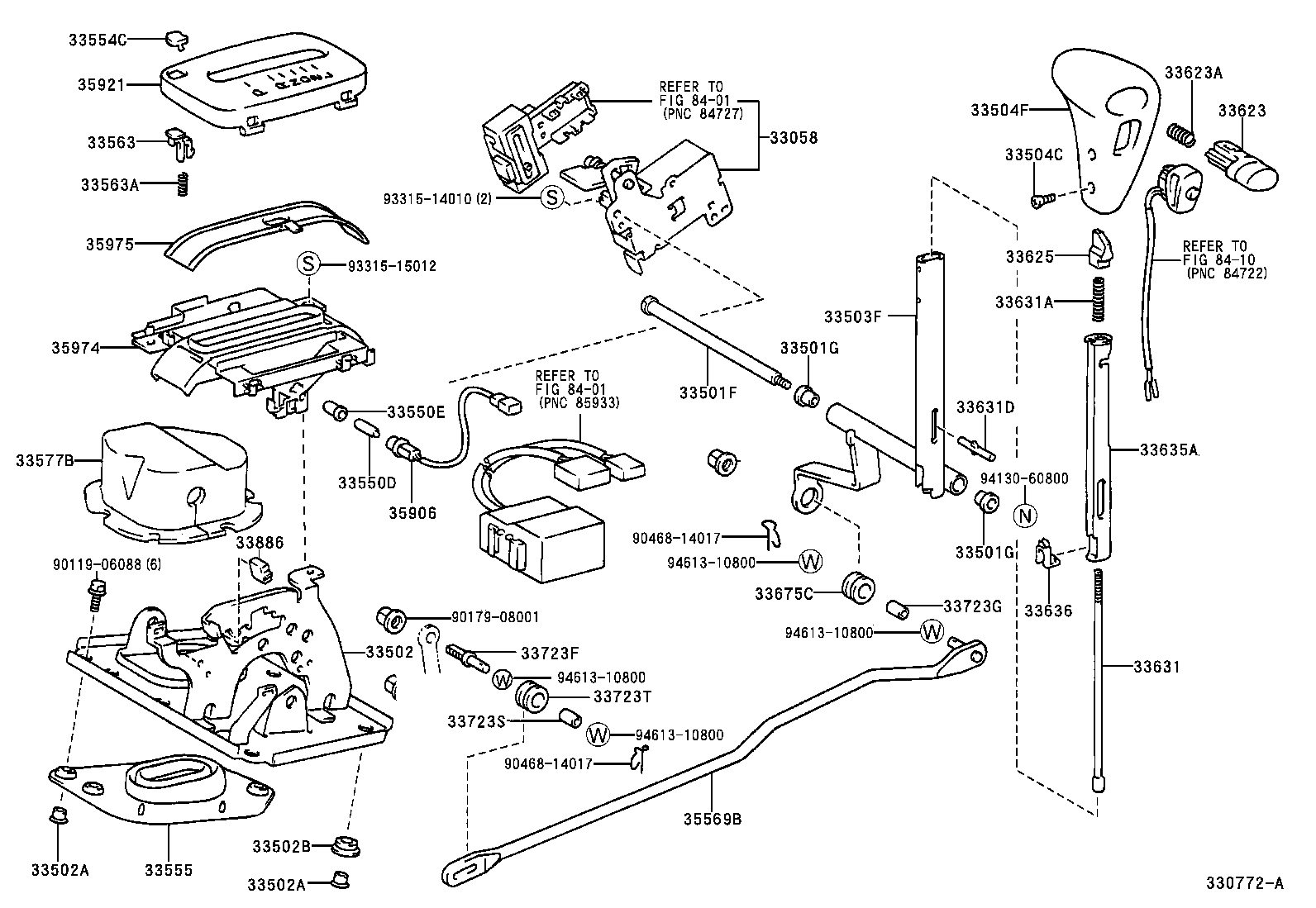

SHIFT LEVER RETAINER

(9801-0208)

 LAND CRUISER 100 |  SHIFT LEVER RETAINER 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID 33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT) 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33502 - PLATE SUB-ASSY, SHIFT LEVER 33502A - COLLAR (FOR FLOOR SHIFT SETTING) 33502A - COLLAR (FOR FLOOR SHIFT SETTING) 33502B - GROMMET (FOR SHIFT LEVER PLATE) 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) 33504F - KNOB SUB-ASSY, SHIFT LEVER 33550D - BULB, POSITION INDICATOR LAMP 33550E - CAP, POSITION INDICATOR LAMP 33554C - COVER, SHIFT LOCK RELEASE BUTTON 33555 - BOOT, SHIFT LEVER 33563 - BUTTON, SHIFT LOCK RELEASE 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) 33577B - COVER, CONTROL SHAFT HOLE 33623 - BUTTON, SHIFT LEVER KNOB 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) 33625 - SLEEVE, SHIFT LEVER KNOB 33631 - ROD, DETENT 33631A - SPRING, COMPRESSION (FOR DETENT ROD) 33631D - PIN, GROOVED (FOR DETENT ROD) 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33723S - BUSH (FOR CONNECTING ROD SWIVEL) 33723T - GROMMET (FOR CONNECTING ROD SWIVEL) 33886 - STOPPER, SHIFT LEVER 35569B - ROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT) 35906 - WIRE SUB-ASSY, INDICATOR LAMP 35921 - PLATE, CONTROL POSITION INDICATOR 35974 - HOUSING, POSITION INDICATOR, LOWER 35975 - COVER, SLIDE (FOR POSITION INDICATOR) ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
