TOYOTA PASEO EL54R-DCMSKQ / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FUEL INJECTION SYSTEM

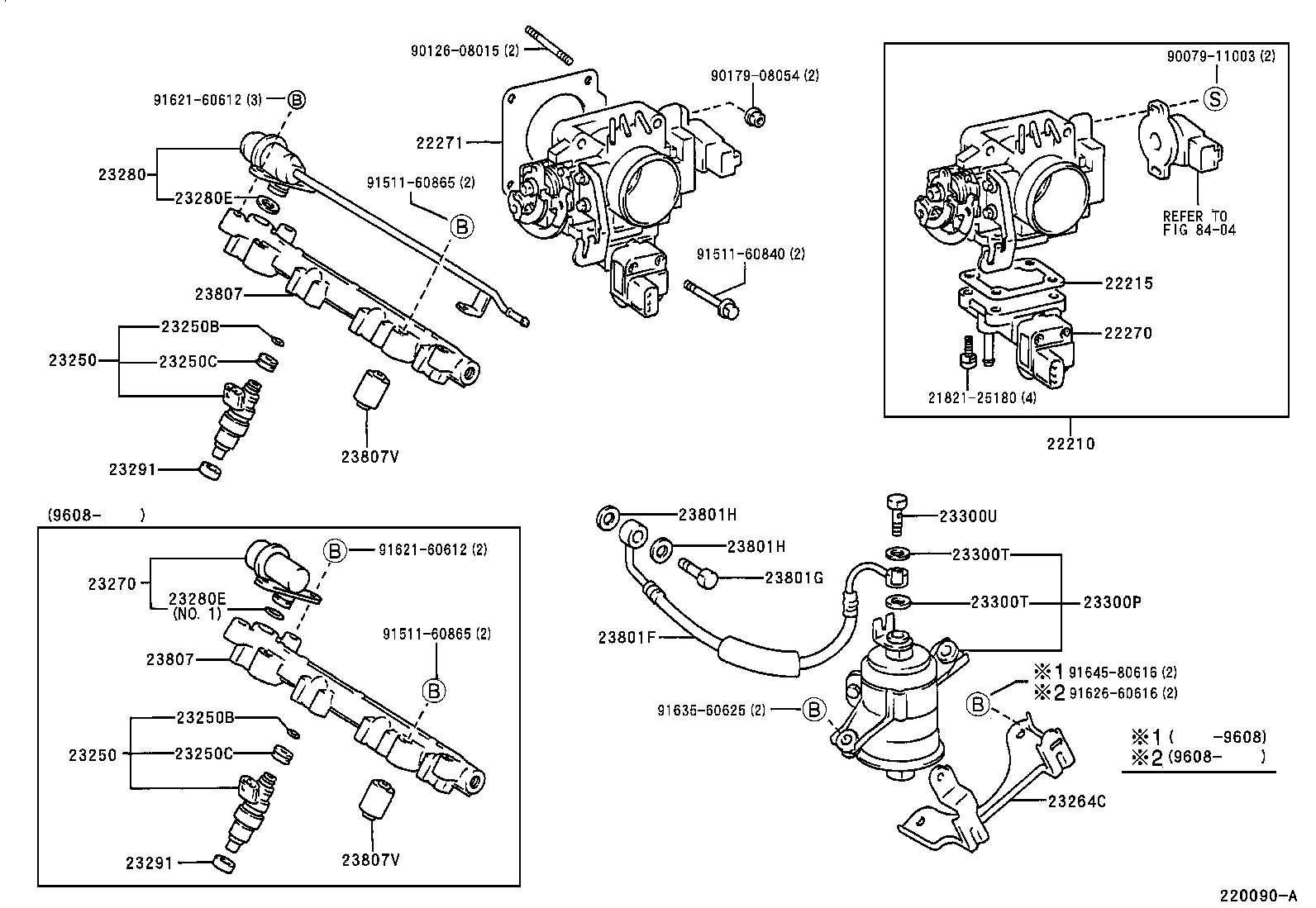

ILLUST NO. 1 OF 2(9508- )5EFE..ARL,GEN

PASEO | FUEL INJECTION SYSTEM ** Std Part 22210 - BODY ASSY, THROTTLE 22215 - GASKET, THROTTLE BODY COVER 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250B - RING, O(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23264C - BRACKET, FUEL FILTER 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23280 - REGULATOR ASSY, FUEL PRESSURE 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) 23291 - INSULATOR, INJECTOR VIBRATION 23291 - INSULATOR, INJECTOR VIBRATION 23300P - FILTER, FUEL(FOR EFI) 23300T - GASKET(FOR FUEL FILTER) 23300T - GASKET(FOR FUEL FILTER) 23300U - BOLT, UNION(FOR FUEL FILTER) 23801F - HOSE, FUEL, NO.1 23801G - BOLT, UNION(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 23807V - SPACER, NO.1(FOR DELIVERY PIPE) ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
