TOYOTA 4RUNNER VZN180L-GKPSKA / POWERTRAIN-CHASSIS / BRAKE MASTER CYLINDER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE MASTER CYLINDER

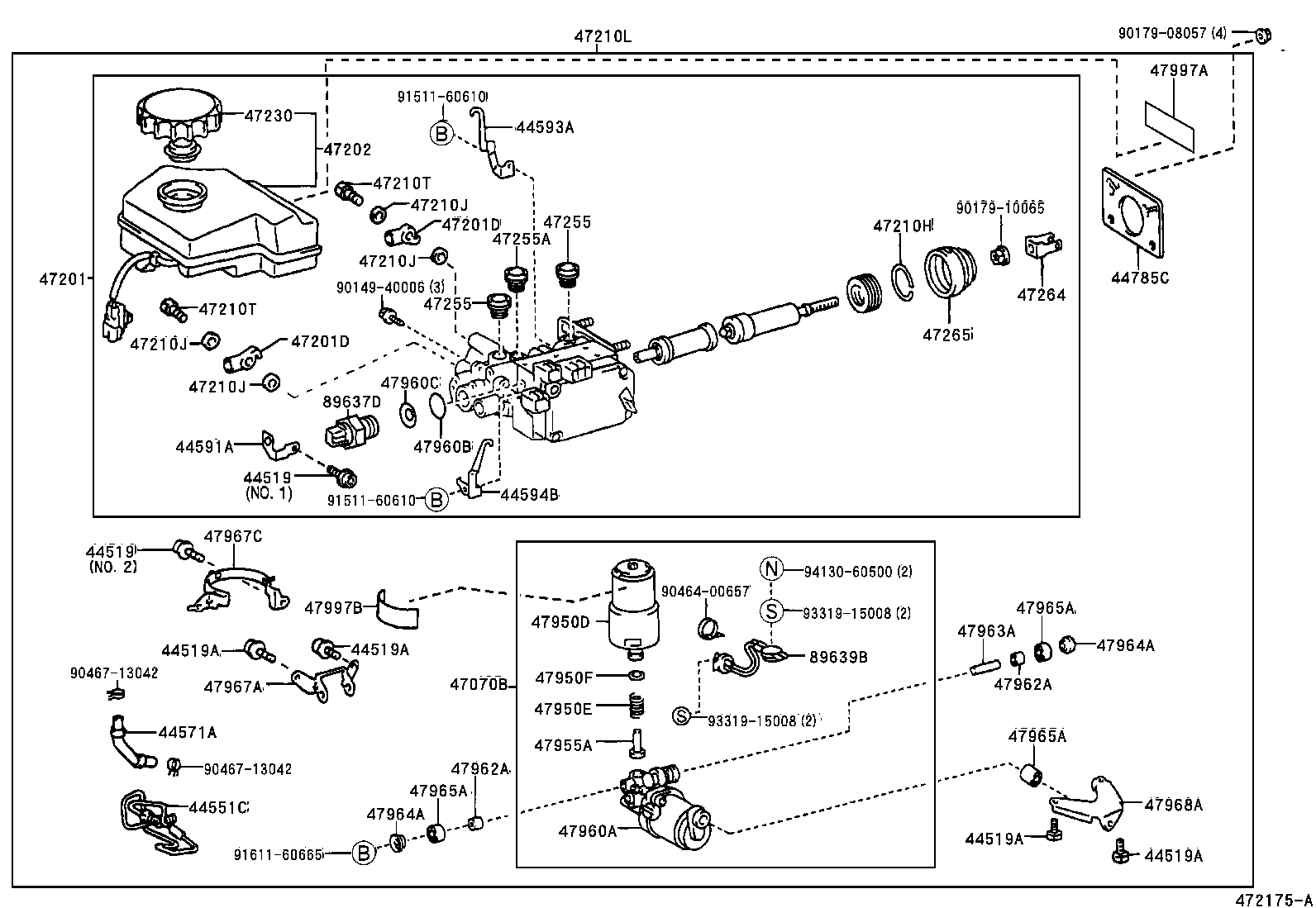

ILLUST NO. 1 OF 2(0008- )

 4RUNNER |  BRAKE MASTER CYLINDER 44519 - BOLT, BRAKE ACTUATOR 44519 - BOLT, BRAKE ACTUATOR 44519A - BOLT(FOR BRAKE BOOSTER PUMP) 44519A - BOLT(FOR BRAKE BOOSTER PUMP) 44519A - BOLT(FOR BRAKE BOOSTER PUMP) 44519A - BOLT(FOR BRAKE BOOSTER PUMP) 44551C - TUBE, BRAKE ACTUATOR, NO.1 44571A - HOSE, BRAKE ACTUATOR, NO.1 44591A - BRACKET, BRAKE ACTUATOR, NO.1 44593A - BRACKET, BRAKE ACTUATOR, NO.3 44594B - BRACKET, BRAKE ACTUATOR, NO.4 44785C - GASKET, BRAKE BOOSTER 47070B - PUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR 47201 - CYLINDER SUB-ASSY, BRAKE MASTER 47201D - UNION, BRAKE MASTER CYLINDER, NO.1 47201D - UNION, BRAKE MASTER CYLINDER, NO.1 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER 47210H - RING, SNAP(FOR BRAKE MASTER CYLINDER) 47210J - GASKET(FOR MASTER CYLINDER) 47210J - GASKET(FOR MASTER CYLINDER) 47210J - GASKET(FOR MASTER CYLINDER) 47210J - GASKET(FOR MASTER CYLINDER) 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER 47210T - BOLT(FOR BRAKE MASTER CYLINDER) 47210T - BOLT(FOR BRAKE MASTER CYLINDER) 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER 47255 - GROMMET, MASTER CYLINDER RESERVOIR 47255 - GROMMET, MASTER CYLINDER RESERVOIR 47255A - GROMMET, MASTER CYLINDER RESERVOIR, NO.2 47264 - CLEVIS, MASTER CYLINDER PUSH ROD 47265 - BOOT, MASTER CYLINDER 47950D - ACCUMULATOR ASSY, BRAKE BOOSTER 47950E - SPRING, COMPRESSION(FOR BRAKE BOOSTER ACCUMULATOR) 47950F - RING, O(FOR BRAKE BOOSTER ACCUMULATOR) 47955A - PIPE, BRAKE BOOSTER ACCUMULATOR 47960A - PUMP ASSY, BRAKE BOOSTER 47960B - RING, O(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR) 47960C - SPACER(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR) 47962A - COLLAR, BRAKE BOOSTER PUMP 47962A - COLLAR, BRAKE BOOSTER PUMP 47963A - SHAFT, BRAKE BOOSTER PUMP 47964A - WASHER, BRAKE BOOSTER PUMP 47964A - WASHER, BRAKE BOOSTER PUMP 47965A - BUSH, BRAKE BOOSTER PUMP 47965A - BUSH, BRAKE BOOSTER PUMP 47965A - BUSH, BRAKE BOOSTER PUMP 47967A - BRACKET, BRAKE BOOSTER PUMP, NO.1 47967C - BRACKET, BRAKE BOOSTER PUMP, NO.2 47968A - BRACKET, BRAKE BOOSTER PUMP, NO.2 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 47997B - LABEL, ACCUMULATOR CAUTION, NO,2 89637D - SENSOR, OIL PRESSURE 89639B - WIRE, BRAKE CONTROL  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
