TOYOTA DYNA 150 LY212L-TBMGSW3 / POWERTRAIN-CHASSIS / REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

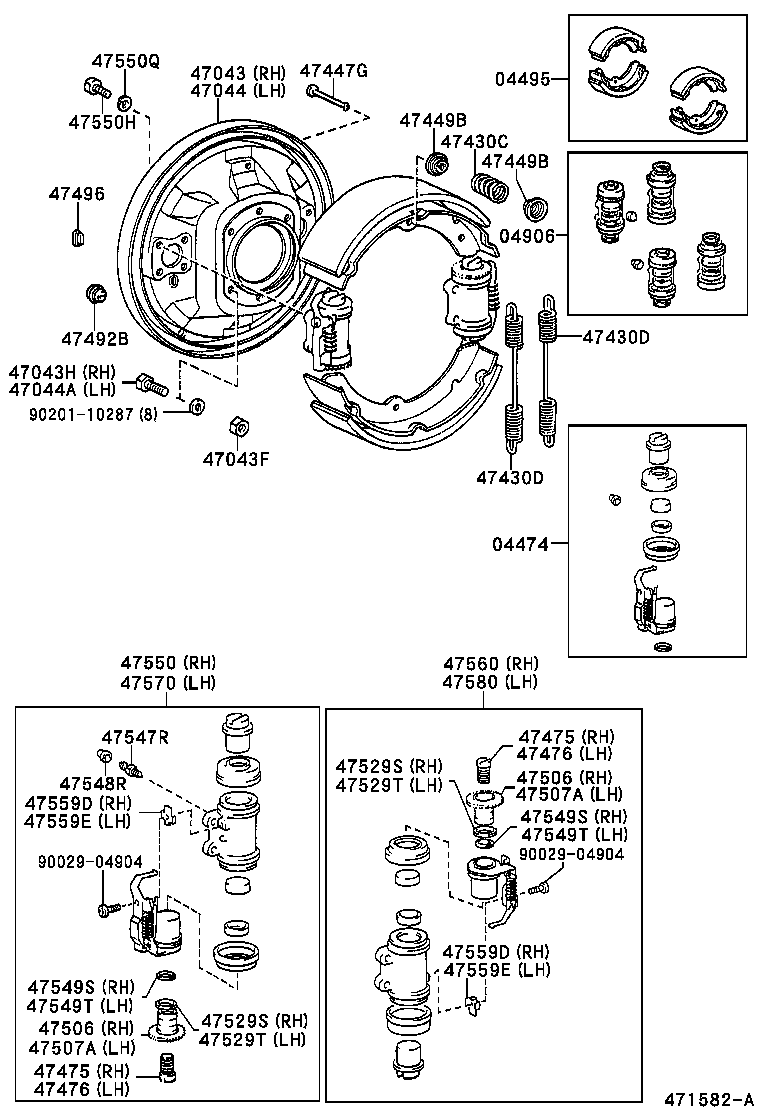

REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE

(9905- )WT..EUR

DYNA 150 | REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE 04474 - CYLINDER KIT, REAR WHEEL 04495 - SHOE KIT, REAR BRAKE 04906 - CUP KIT, REAR WHEEL CYLINDER 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE) 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE) 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) 47496 - PLUG, HOLE(FOR REAR BRAKE) 47506 - NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) 47506 - NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) 47507A - NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) 47507A - NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) 47529S - SEAL, REAR BRAKE ADJUST NUT DUST, RH 47529S - SEAL, REAR BRAKE ADJUST NUT DUST, RH 47529T - SEAL, REAR BRAKE ADJUST NUT DUST, LH 47529T - SEAL, REAR BRAKE ADJUST NUT DUST, LH 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) 47549S - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH 47549S - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH 47549T - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH 47549T - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) 47550H - BOLT(FOR REAR WHEEL CYLINDER) 47550Q - WASHER(FOR REAR WHEEL CYLINDER) 47559D - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH 47559D - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH 47559E - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH 47559E - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) ** Std Part ** Std Part ** Std Part
