TOYOTA DYNA 150 LY212R-TLMGS / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SEAT SEAT TRACK

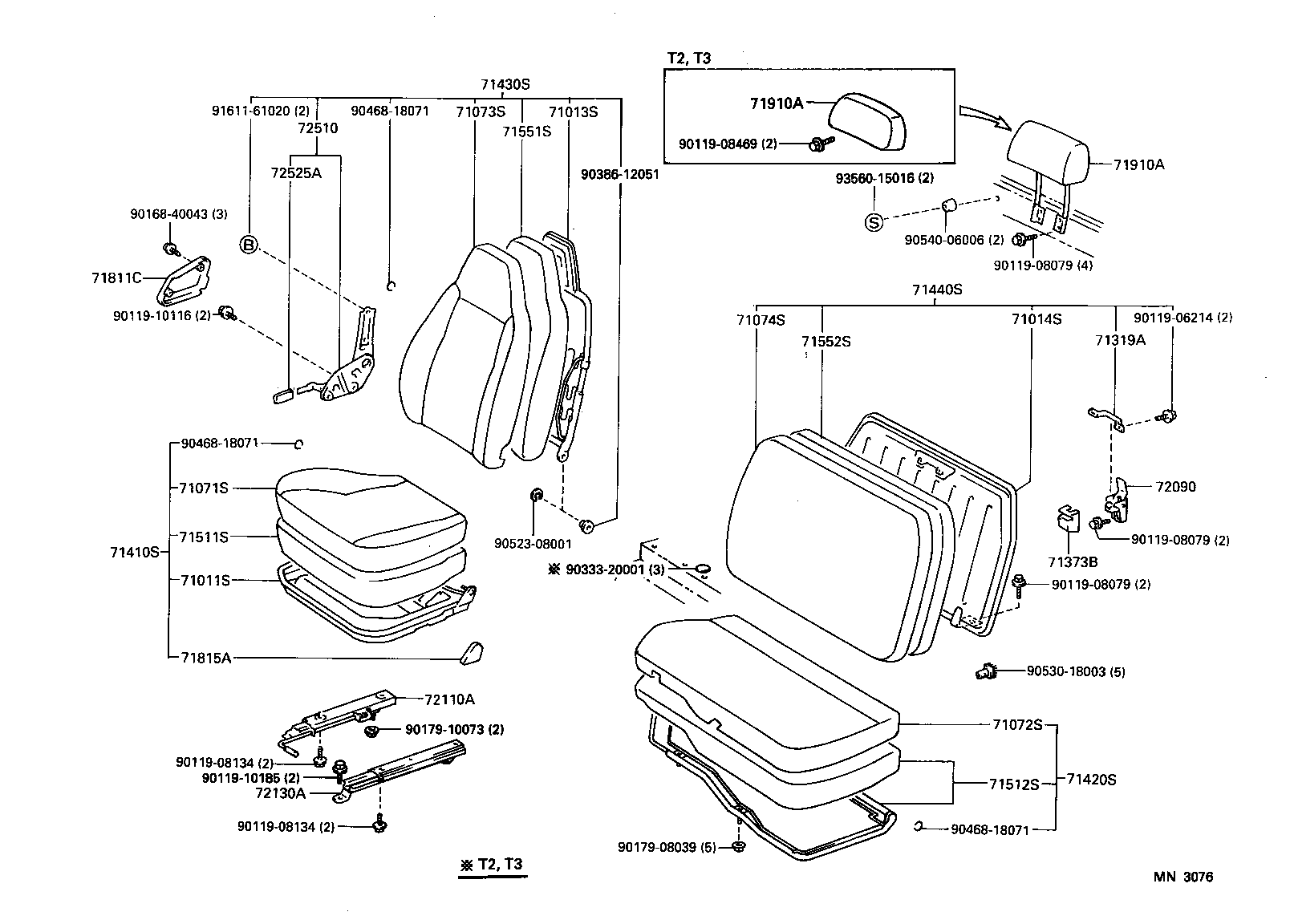

ILLUST NO. 1 OF 3(9505- )RHD

DYNA 150 | SEAT SEAT TRACK 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71319A - STRIKER, FRONT SEAT BACK 71373B - COVER, FRONT SEAT BACK LOCK 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71811C - COVER, RECLINING ADJUSTER, RH 71815A - COVER, FRONT SEAT CUSHION HINGE, RH 71910A - HEADREST ASSY, FRONT SEAT 71910A - HEADREST ASSY, FRONT SEAT 72090 - LOCK ASSY, FRONT SEAT BACK 72110A - TRACK ASSY, FRONT SEAT, OUTER RH 72130A - TRACK ASSY, FRONT SEAT, INNER RH 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
