TOYOTA DYNA200 BU223L-TKFQW3 / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

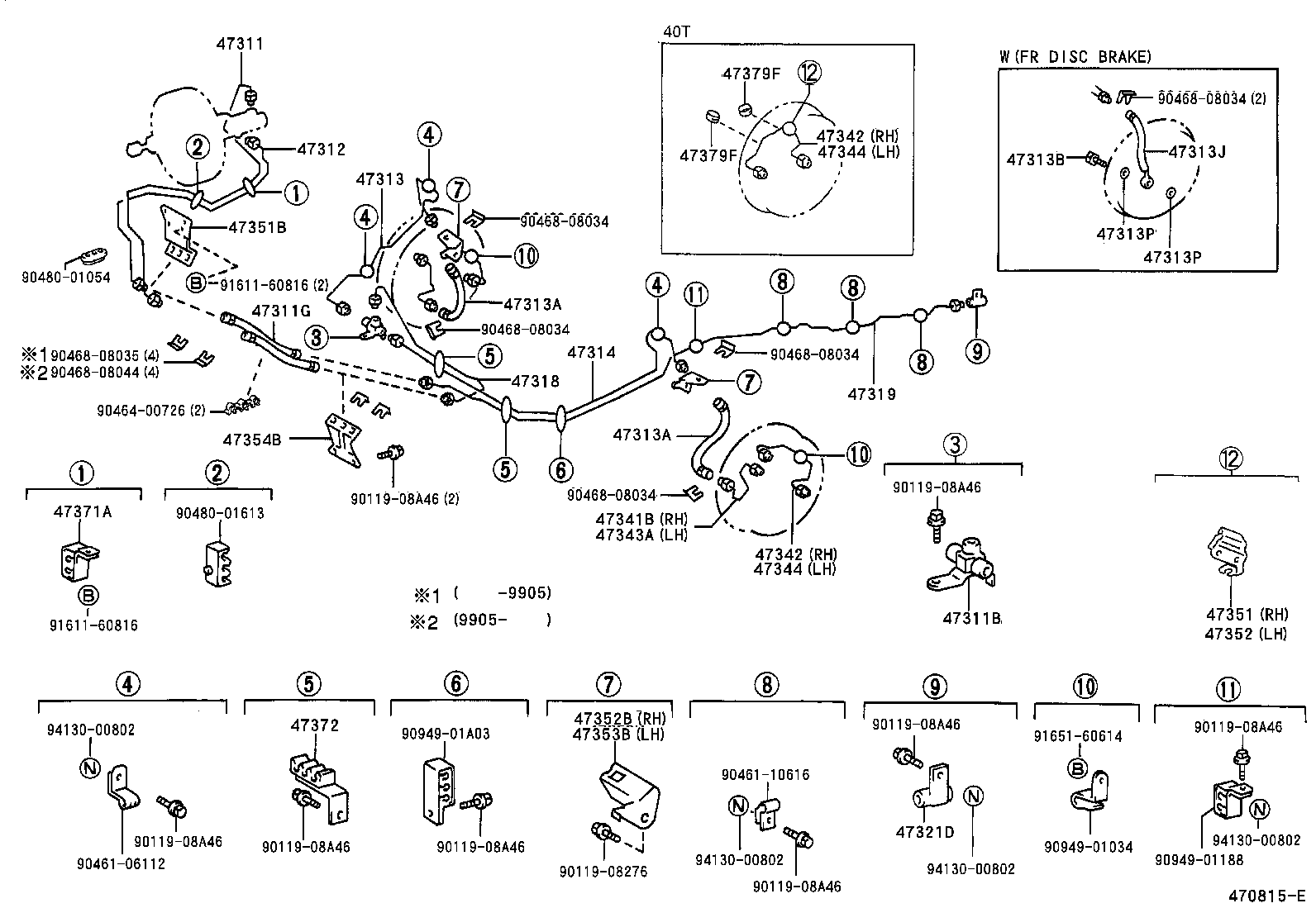

BRAKE TUBE CLAMP

ILLUST NO. 1 OF 3(9505- )BU21#,22#..LHD..GEN,TAIW

DYNA200 | BRAKE TUBE CLAMP 47311 - TUBE, FRONT BRAKE, NO.1 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) 47312 - TUBE, FRONT BRAKE, NO.2 47313 - TUBE, FRONT BRAKE, NO.3 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47314 - TUBE, FRONT BRAKE, NO.4 47318 - TUBE, FRONT BRAKE, NO.8 47319 - TUBE, FRONT BRAKE, NO.9 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) 47351B - BRACKET, FLEXIBLE HOSE, NO.1 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) 47352B - BRACKET, FLEXIBLE HOSE, NO.2 47353B - BRACKET, FLEXIBLE HOSE, NO.3 47354B - BRACKET, FLEXIBLE HOSE, NO.4 47371A - CLAMP, BRAKE TUBE, NO.1 47372 - CLAMP, BRAKE TUBE, NO.2 47379F - DAMPER, TUBE(FOR FRONT) 47379F - DAMPER, TUBE(FOR FRONT) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
