TOYOTA DYNA200 BU223L-TKFQW3 / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

REAR SPRING SHOCK ABSORBER

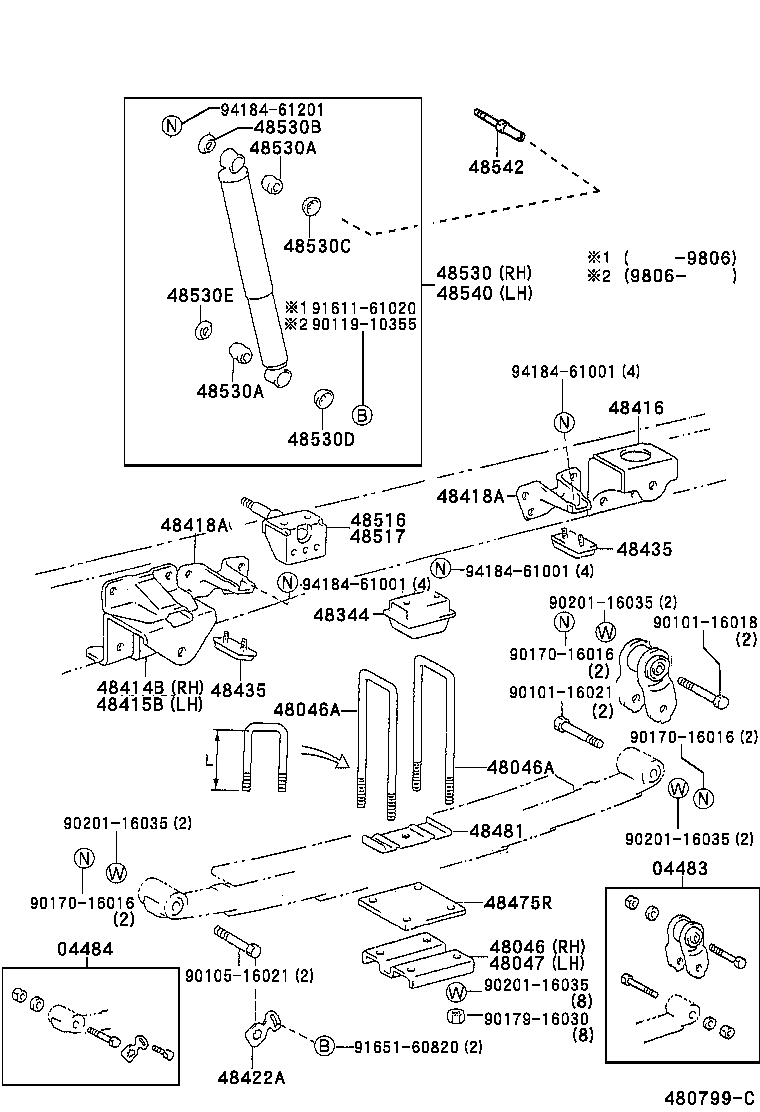

ILLUST NO. 1 OF 2(9505- )BU14#,211,YU210 ; (9505- )BU212..A

DYNA200 | REAR SPRING SHOCK ABSORBER 04483 - SHACKLE KIT, REAR SPRING 04484 - PIN KIT, REAR SPRING 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH 48046A - BOLT, U(FOR REAR SPRING) 48046A - BOLT, U(FOR REAR SPRING) 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH 48344 - STOPPER, BUMPER, REAR 48414B - BRACKET, SPRING, NO.3 RH 48415B - BRACKET, SPRING, NO.3 LH 48416 - BRACKET, SPRING, NO.4 48418A - BRACKET, HELPER SPRING, FRONT 48418A - BRACKET, HELPER SPRING, FRONT 48422A - SUPPORT, REAR SPRING PIN 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 48475R - PLATE, DISTANCE(FOR REAR) 48481 - SEAT, REAR SPRING, UPPER 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH 48530 - ABSORBER ASSY, SHOCK, REAR RH 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 48540 - ABSORBER ASSY, SHOCK, REAR LH 48542 - PIN, SHOCK ABSORBER UPPER PIVOT, REAR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
