TOYOTA RAV4 SXA10R-AZPGKQ / POWERTRAIN-CHASSIS / BRAKE BAND MULTIPLE DISC CLUTCH ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

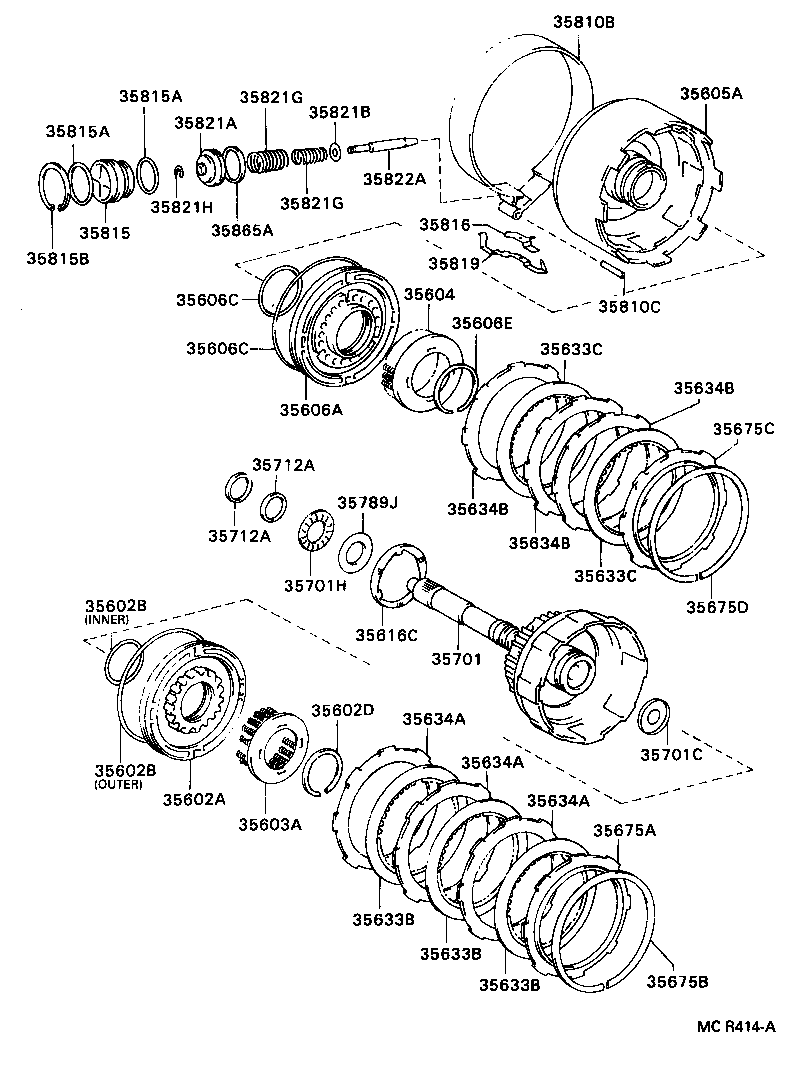

BRAKE BAND MULTIPLE DISC CLUTCH ATM

A540H (9404- )ATM

RAV4 | BRAKE BAND MULTIPLE DISC CLUTCH ATM 35602A - PISTON SUB-ASSY, FORWARD CLUTCH 35602B - RING, O (FOR FORWARD CLUTCH PISTON) 35602B - RING, O (FOR FORWARD CLUTCH PISTON) 35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING) 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN 35605A - DRUM SUB-ASSY, DIRECT CLUTCH 35606A - PISTON SUB-ASSY, DIRECT CLUTCH 35606C - RING, O (FOR DIRECT CLUTCH PISTON) 35606C - RING, O (FOR DIRECT CLUTCH PISTON) 35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING) 35616C - WASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM) 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) 35675A - FLANGE, FORWARD CLUTCH 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) 35675C - FLANGE, DIRECT CLUTCH 35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) 35701 - SHAFT SUB-ASSY, INPUT 35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR) 35701H - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT) 35712A - RING, INPUT SHAFT OIL SEAL 35712A - RING, INPUT SHAFT OIL SEAL 35789J - RACE, THRUST BEARING (FOR INPUT SHAFT FRONT) 35810B - BAND ASSY, 2ND COAST BRAKE 35810C - PIN (FOR 2ND COAST BRAKE BAND) 35815 - COVER, 2ND COAST BRAKE 35815A - RING, O (FOR 2ND COAST BRAKE COVER) 35815A - RING, O (FOR 2ND COAST BRAKE COVER) 35815B - RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER) 35816 - RETAINER, BRAKE BAND GUIDE PLATE 35819 - PLATE, 2ND COAST BRAKE BAND GUIDE 35821A - PISTON, 2ND COAST BRAKE 35821B - WASHER, PLATE (FOR 2ND COAST BRAKE PISTON) 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) 35821H - RING, E (FOR 2ND COAST BRAKE PISTON) 35822A - ROD, 2ND COAST BRAKE PISTON 35865A - RING, 2ND COAST BRAKE PISTON OIL SEAL
