TOYOTA DYNA XZU302-TPMLS3 / BODY / FRONT DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

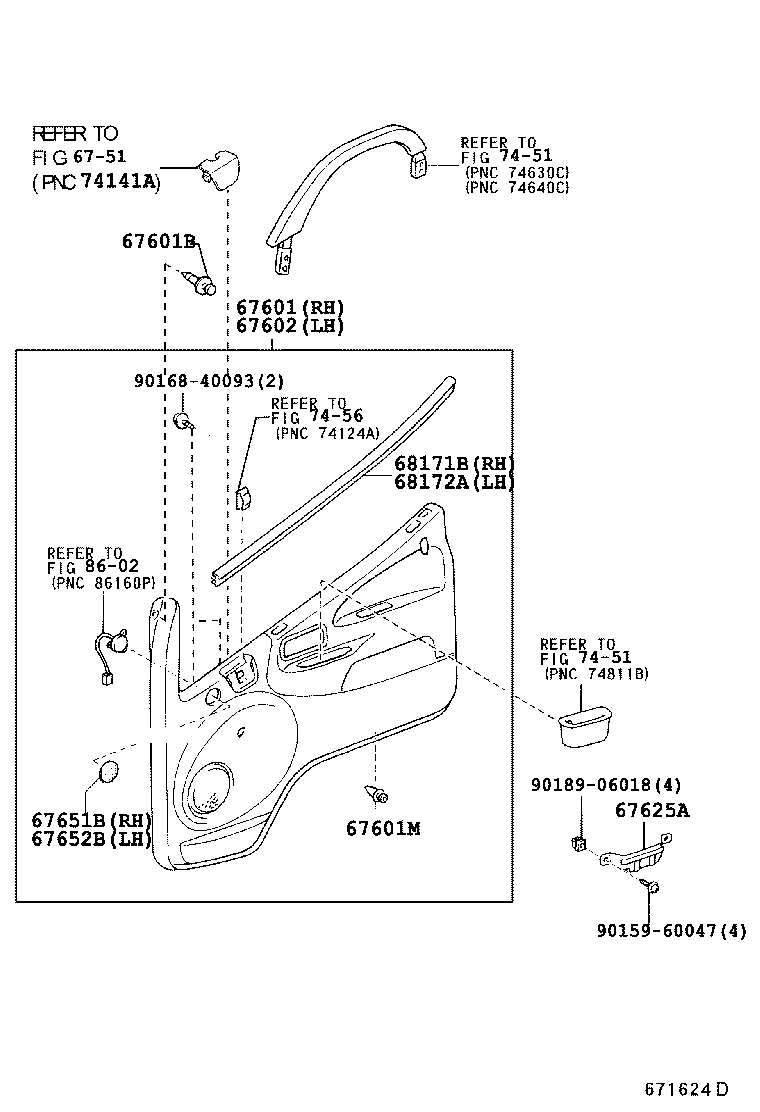

FRONT DOOR PANEL GLASS

ILLUST NO. 1 OF 3(9907-0212)

 DYNA |  FRONT DOOR PANEL GLASS ** Refer Fig 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) 67601M - RETAINER, DOOR TRIM, NO.2 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH 67625A - BRACKET, FRONT DOOR TRIM, NO.1 67651B - GRILLE, SPEAKER DOOR, RH 67652B - GRILLE, SPEAKER DOOR, LH 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part
