TOYOTA DYNA XZU302-TPMLS3 / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

BRAKE BOOSTER VACUUM TUBE

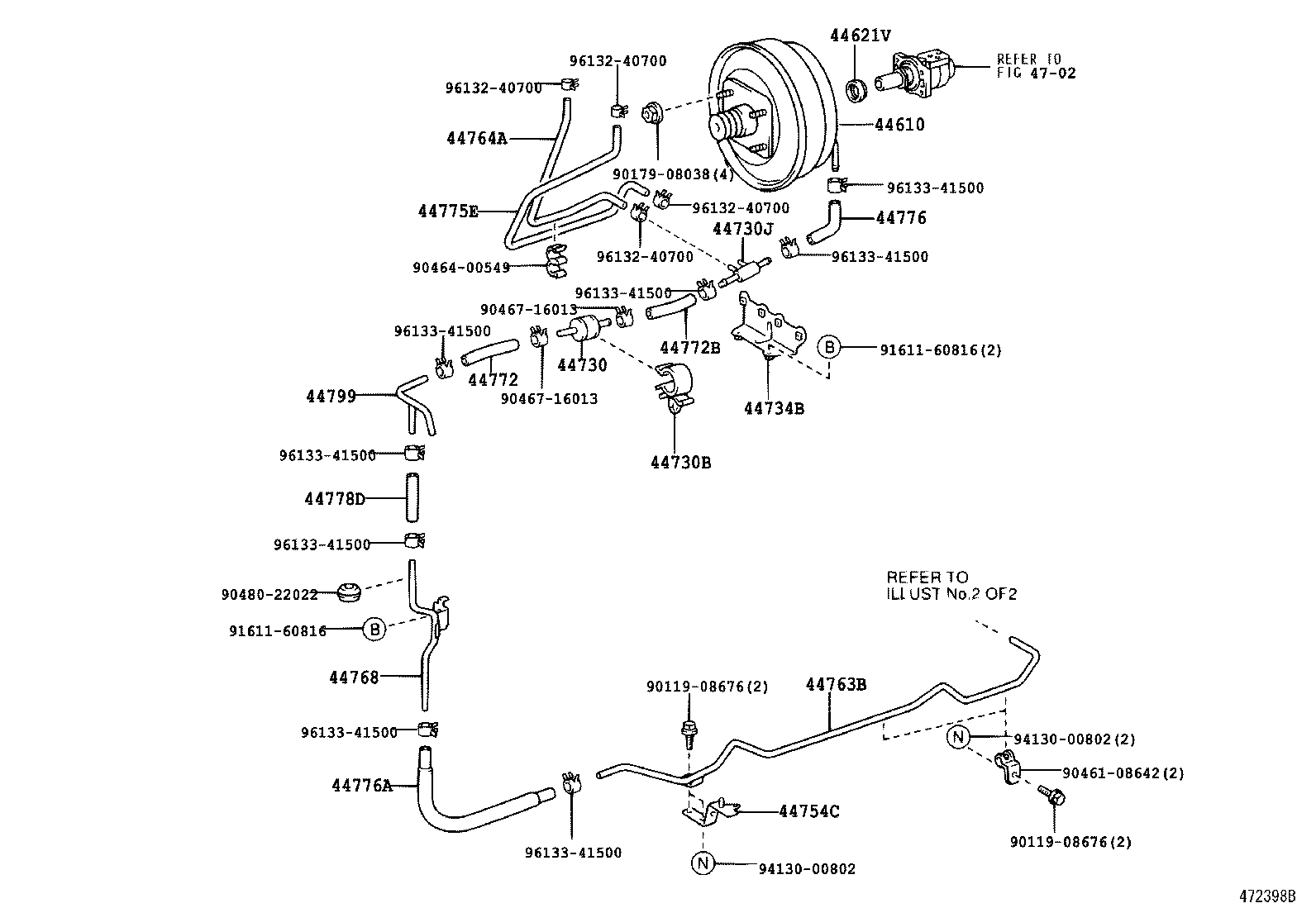

ILLUST NO. 1 OF 2(0010- )XZU302,307,342

DYNA | BRAKE BOOSTER VACUUM TUBE 44610 - BOOSTER ASSY, BRAKE 44621V - SEAL, BOOSTER BODY 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) 44730B - CLAMP, VACUUM HOSE 44730J - WAY(FOR BOOSTER VACUUM) 44734B - BRACKET, BOOSTER SUPPORT 44754C - BRACKET, VACUUM TUBE, NO.1 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR 44764A - HOSE, BOOSTER VACUUM 44768 - TUBE, BOOSTER VACUUM 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER 44775E - HOSE, WAY TO CONNECTOR 44776 - HOSE, BRAKE BOOSTER 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE 44799 - WAY, BRAKE VACUUM HOSE ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
