TOYOTA HIACE VAN COMUTER RZH113L-SRMREV / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

AIR CLEANER

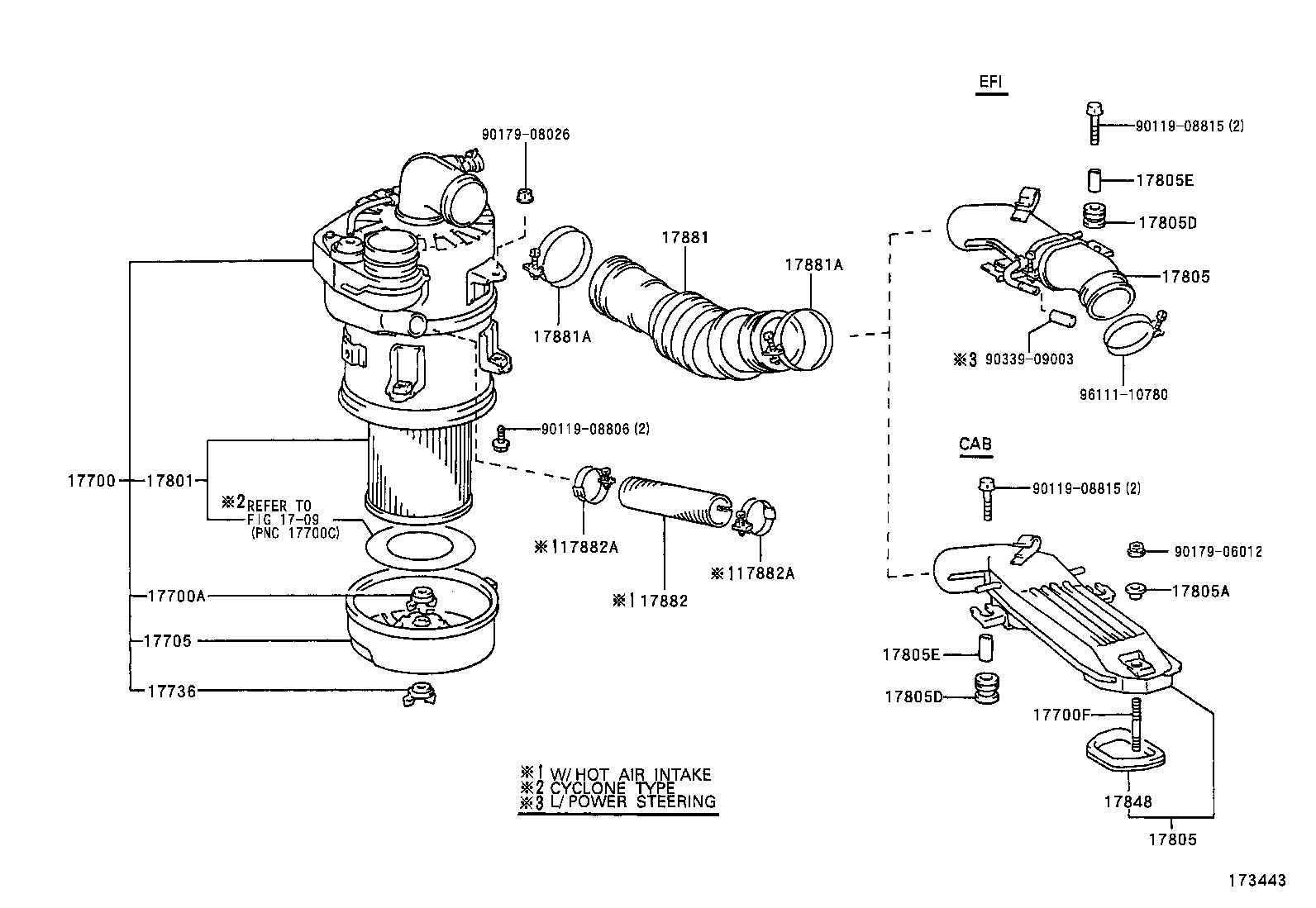

ILLUST NO. 1 OF 2(9508- )1RZ#,2RZ#

HIACE VAN COMUTER | AIR CLEANER ** Refer Fig 17700 - CLEANER ASSY, AIR 17700A - NUT, WING(FOR AIR CLEANER) 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) 17705 - CAP SUB-ASSY, AIR CLEANER 17736 - NUT, AIR CLEANER CASE 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17805 - CONNECTOR SUB-ASSY, INTAKE AIR 17805 - CONNECTOR SUB-ASSY, INTAKE AIR 17805A - GASKET & WASHER, SEAL 17805D - GROMMET(FOR INTAKE AIR CONNECTOR) 17805D - GROMMET(FOR INTAKE AIR CONNECTOR) 17805E - COLLAR(FOR INTAKE AIR CONNECTOR) 17805E - COLLAR(FOR INTAKE AIR CONNECTOR) 17848 - GASKET, AIR CLEANER TO CARBURETOR 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882 - HOSE, AIR CLEANER, NO.2 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
