TOYOTA PICNIC AVENSIS VERSO ACM20R-ARSDKW / POWERTRAIN-CHASSIS / BRAKE MASTER CYLINDER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

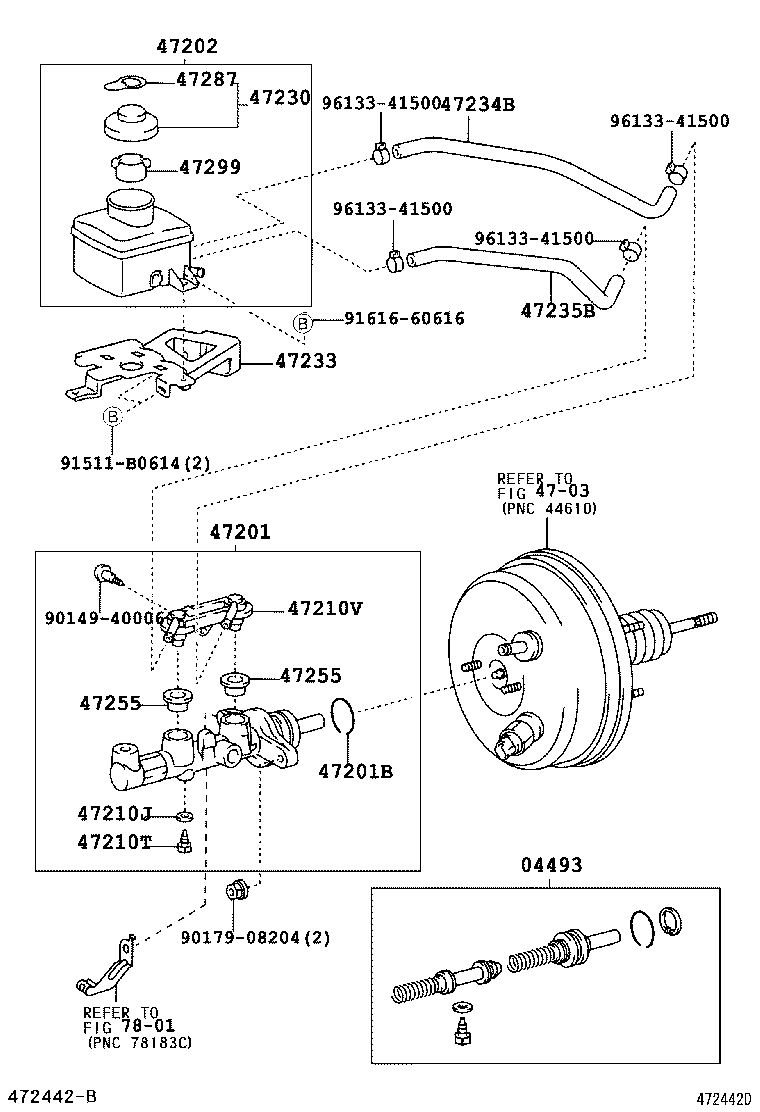

BRAKE MASTER CYLINDER

(0105- )RHD

 PICNIC AVENSIS VERSO |  BRAKE MASTER CYLINDER 04493 - CYLINDER KIT, BRAKE MASTER ** Refer Fig 47201 - CYLINDER SUB-ASSY, BRAKE MASTER 47201B - RING, O(FOR BRAKE MASTER CYLINDER) 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER 47210J - GASKET(FOR MASTER CYLINDER) 47210T - BOLT(FOR BRAKE MASTER CYLINDER) 47210V - UNION(FOR BRAKE MASTER CYLINDER) 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER 47233 - BRACKET, RESERVOIR 47234B - TUBE, RESERVOIR, NO.1 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 47255 - GROMMET, MASTER CYLINDER RESERVOIR 47255 - GROMMET, MASTER CYLINDER RESERVOIR 47287 - LABEL, BRAKE FLUID INFORMATION 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
