TOYOTA PREVIA TARAGO ACR30L-MDMDKW / POWERTRAIN-CHASSIS / FRONT AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FRONT AXLE HOUSING DIFFERENTIAL

E352,E353 (0002- )MTM

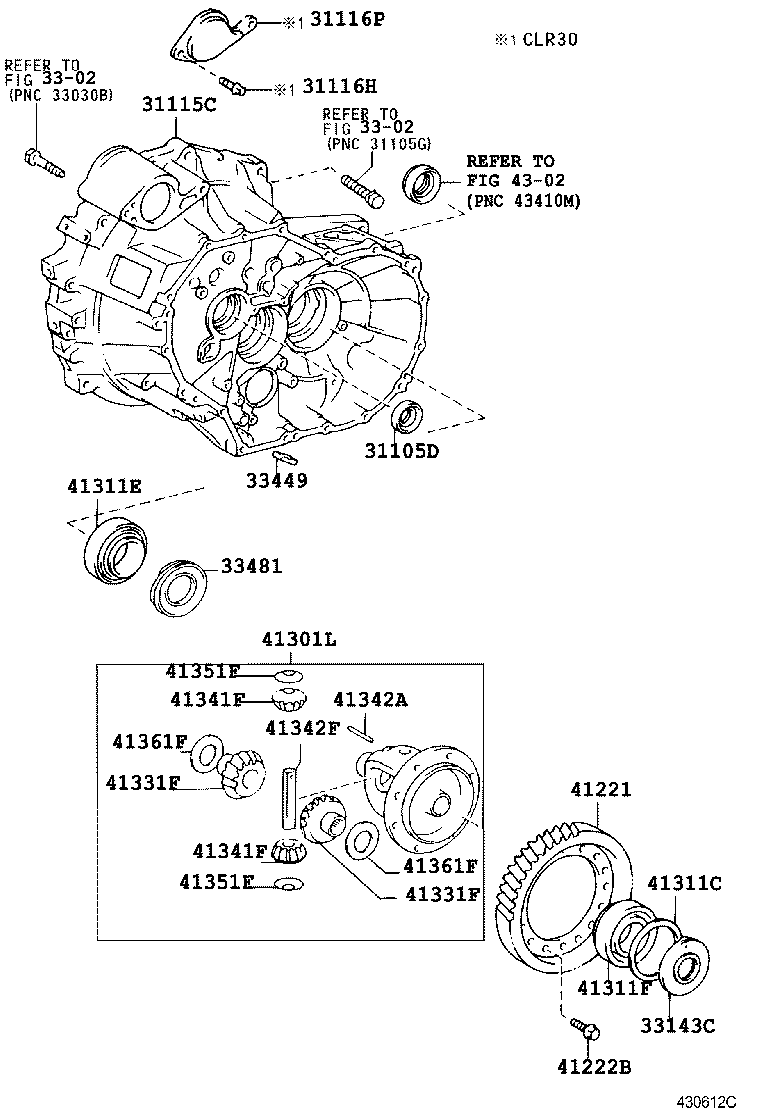

PREVIA TARAGO | FRONT AXLE HOUSING DIFFERENTIAL 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) 31115C - CASE, FRONT TRANSAXLE(MTM) 31116H - BOLT(FOR FRONT TRANSAXLE CASE COVER) 31116P - COVER, TRANSAXLE CASE ** Refer Fig ** Refer Fig 33143C - BAFFLE, FRONT DIFFERENTIAL OIL 33449 - MAGNET, TRANSMISSION 33481 - GEAR, SPEEDOMETER DRIVE (MTM) 41221 - GEAR, FRONT DIFFERENTIAL RING 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) 41301L - CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT) 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR) 41331F - GEAR, FRONT DIFFERENTIAL SIDE 41331F - GEAR, FRONT DIFFERENTIAL SIDE 41341F - PINION, FRONT DIFFERENTIAL 41341F - PINION, FRONT DIFFERENTIAL 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 ** Refer Fig
