HEATING AIR CONDITIONING COOLER PIPING

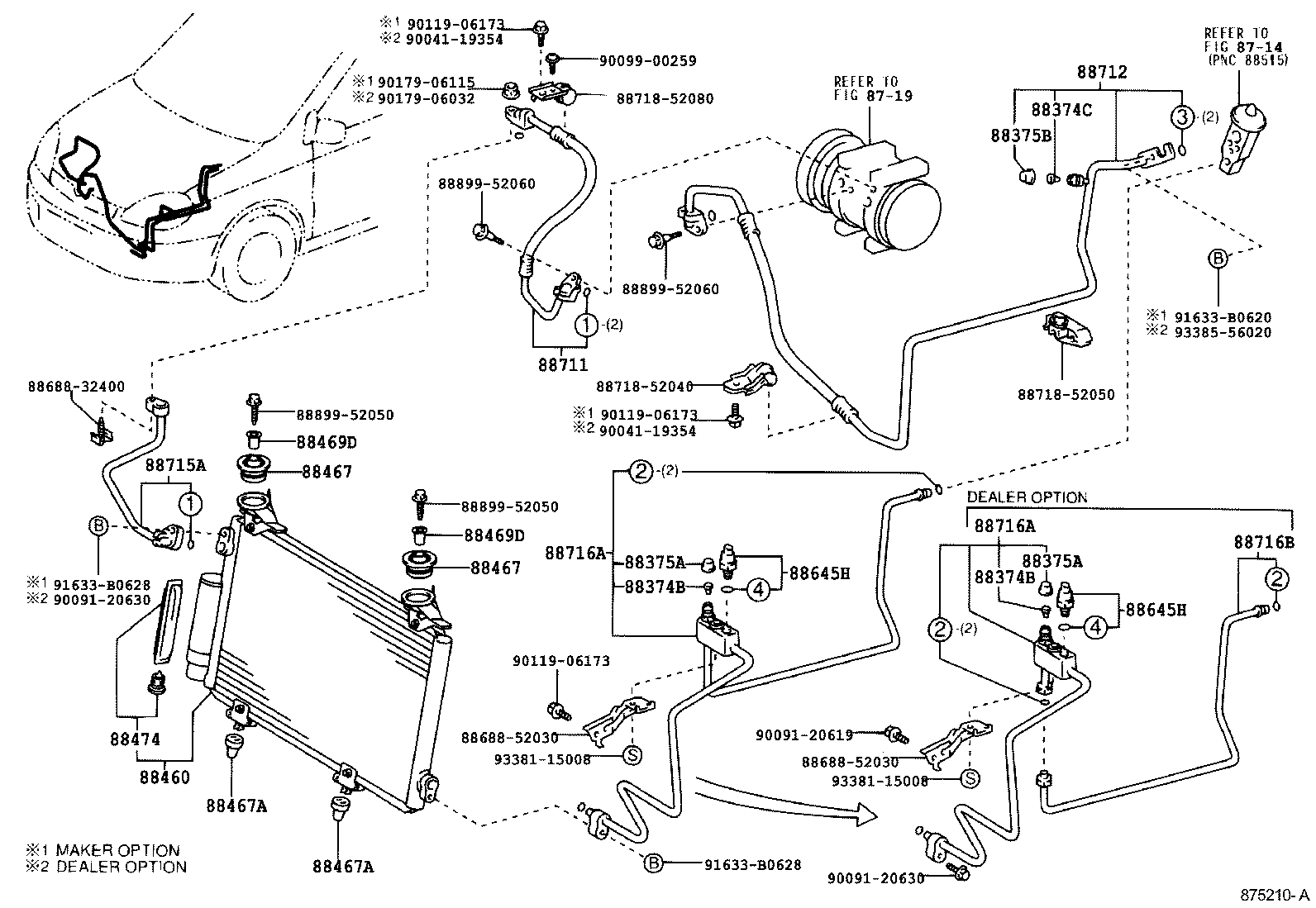

ILLUST NO. 1 OF 2(0110-0211)NLP2#..RHD

 YARIS ECHO VERSO |  HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88374B - VALVE, SERVICE, NO.1 88374C - VALVE, SERVICE, NO.2 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) 88375B - CAP, SERVICE VALVE, NO.1 88460 - CONDENSER ASSY, COOLER 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 88467A - CUSHION, COOLER CONDENSER, NO.2 88467A - CUSHION, COOLER CONDENSER, NO.2 88469D - COLLAR, CONDENSER BRACKET, NO.1 88469D - COLLAR, CONDENSER BRACKET, NO.1 88474 - DRYER, COOLER 88645H - SWITCH, PRESSURE NO.1 88645H - SWITCH, PRESSURE NO.1  ** Std Part  ** Std Part  ** Std Part 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
