TOYOTA YARIS ECHO VERSO NLP20R-CHMGXW / POWERTRAIN-CHASSIS / VANE PUMP RESERVOIR POWER STEERING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

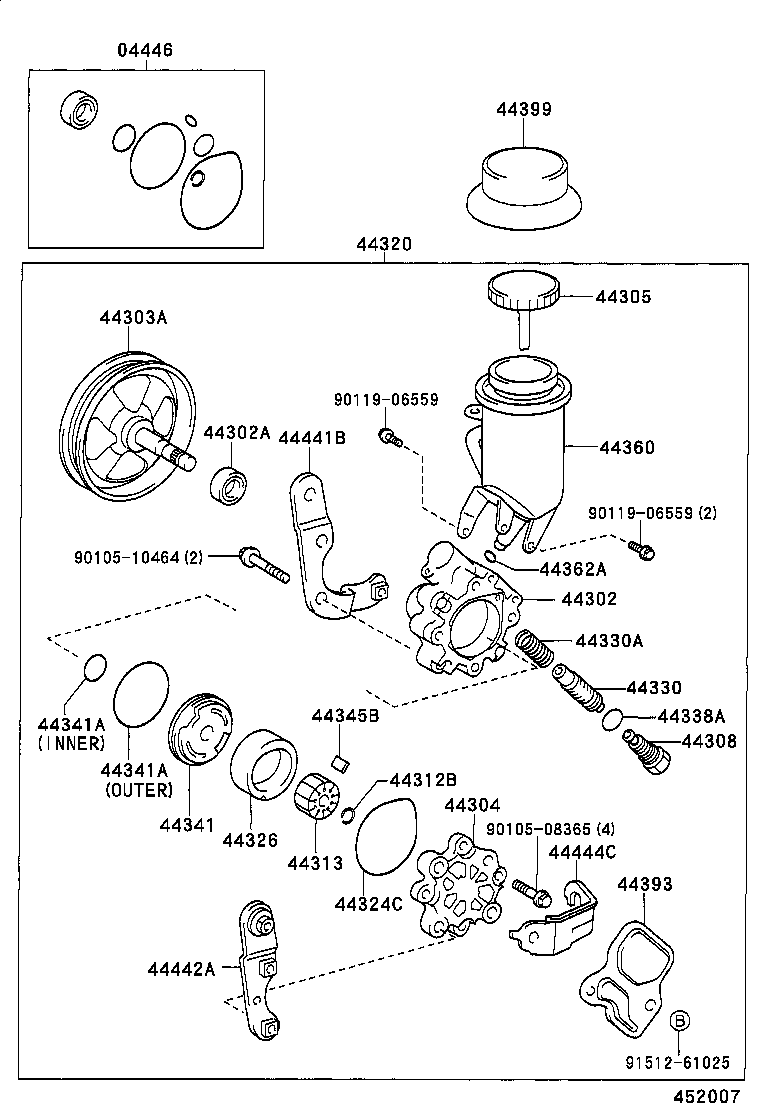

VANE PUMP RESERVOIR POWER STEERING

(9908-0211)

 YARIS ECHO VERSO |  VANE PUMP RESERVOIR POWER STEERING 04446 - GASKET KIT, POWER STEERING PUMP 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT 44302A - SEAL, OIL, NO.1(FOR VANE PUMP HOUSING) 44303A - SHAFT SUB-ASSY, W/PULLEY 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR 44308 - UNION SUB-ASSY, PRESSURE PORT 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) 44313 - ROTOR, VANE PUMP 44320 - PUMP ASSY, VANE 44324C - RING, O(FOR PUMP HOUSING REAR) 44326 - RING, CAM(FOR VANE PUMP) 44330 - VALVE ASSY, FLOW CONTROL 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) 44338A - RING, O(FOR PRESSURE PORT UNION) 44341 - PLATE, VANE PUMP SIDE, FRONT 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) 44345B - PLATE, VANE PUMP 44360 - RESERVOIR ASSY, VANE PUMP OIL 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) 44393 - INSULATOR, POWER STEERING PUMP HEAT 44399 - COVER, VANE PUMP OIL RESERVOIR 44441B - BRACKET, PUMP, FRONT 44442A - BRACKET, VANE PUMP, REAR 44444C - STAY, VANE PUMP, REAR  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
