TOYOTA DYNA XZU340L-TKMSWR3 / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE BOOSTER VACUUM TUBE

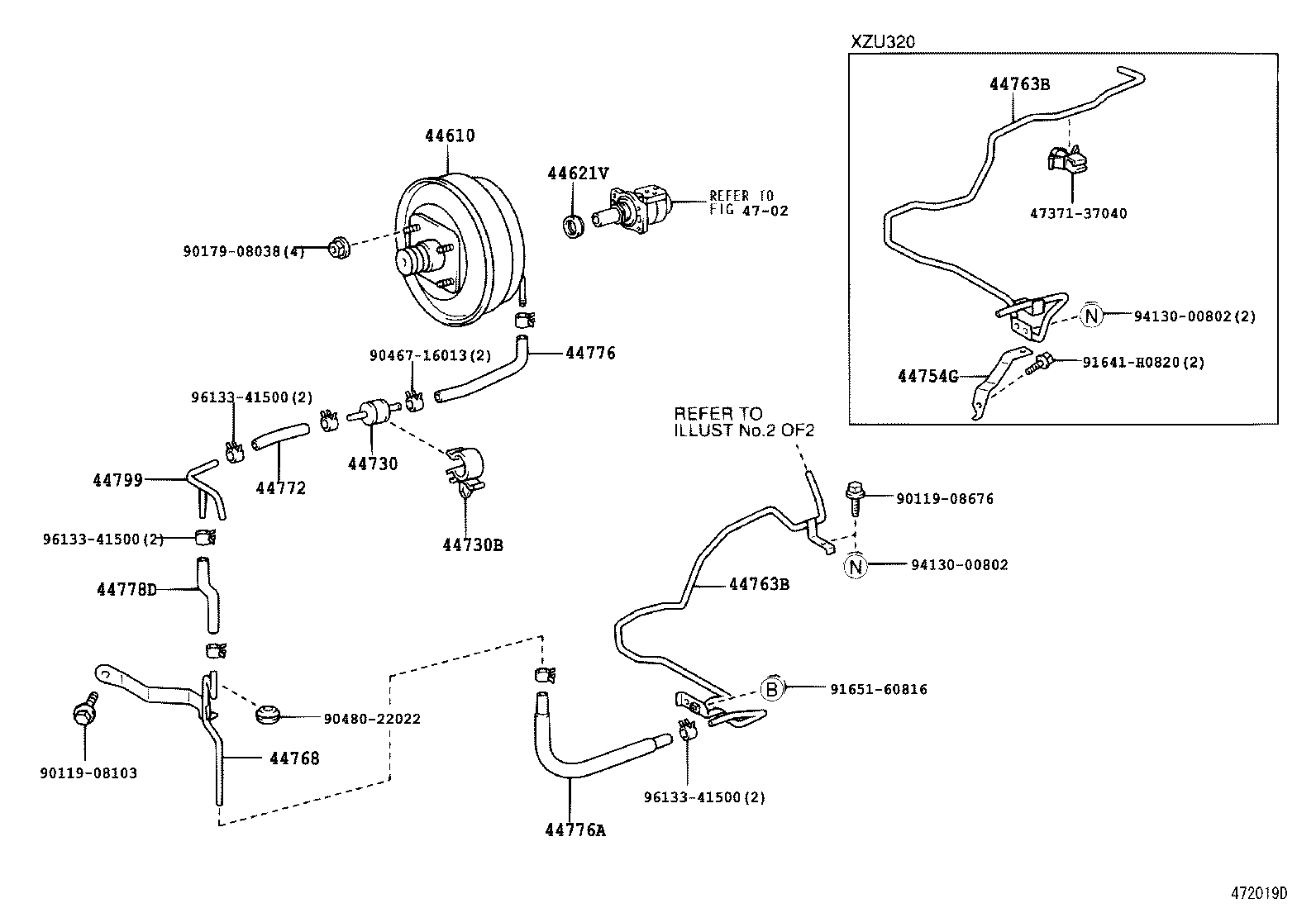

ILLUST NO. 1 OF 2(9907- )XZU300,320,330,340

 DYNA |  BRAKE BOOSTER VACUUM TUBE 44610 - BOOSTER ASSY, BRAKE 44621V - SEAL, BOOSTER BODY 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) 44730B - CLAMP, VACUUM HOSE 44754G - BRACKET, VACUUM TUBE, NO.5 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR 44768 - TUBE, BOOSTER VACUUM 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE 44776 - HOSE, BRAKE BOOSTER 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE 44799 - WAY, BRAKE VACUUM HOSE ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
