TOYOTA HIACE VAN COMUTER LH172R-RRMNE / TOOL-ENGINE-FUEL / INJECTION PUMP ASSEMBLY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

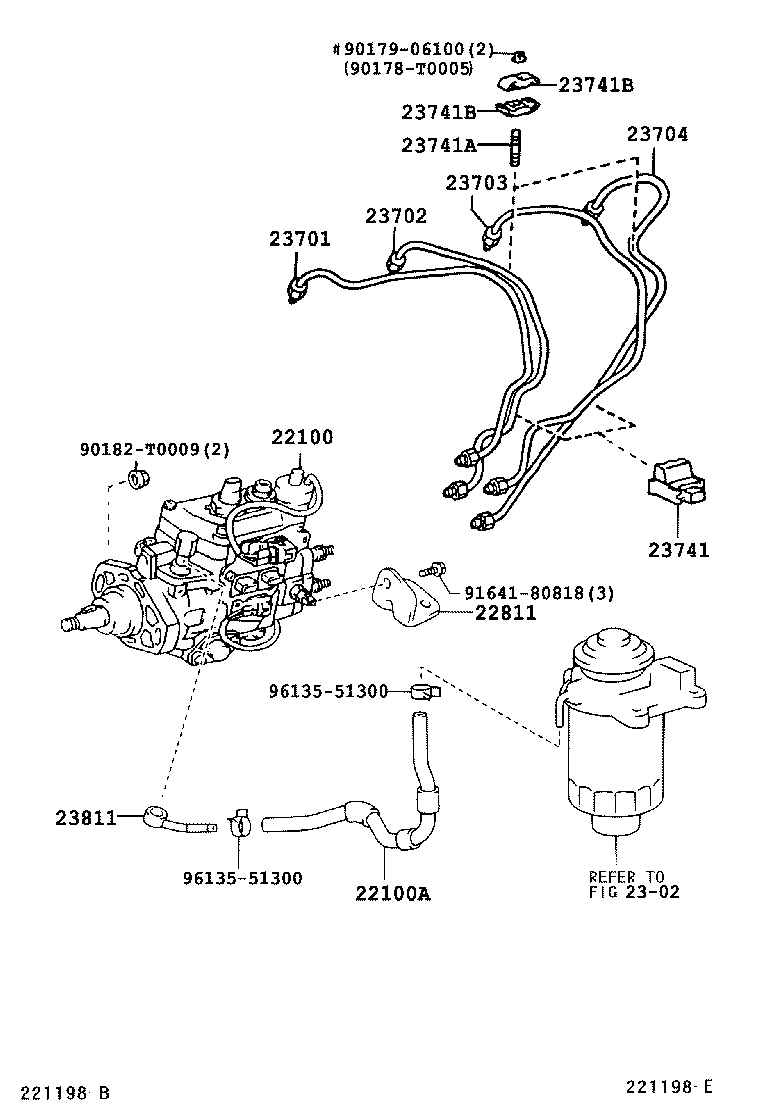

INJECTION PUMP ASSEMBLY

(0108- )5LE

HIACE VAN COMUTER | INJECTION PUMP ASSEMBLY 22100 - PUMP ASSY, INJECTION OR SUPPLY 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) 22811 - STAY, INJECTION PUMP, NO.1 ** Refer Fig 23701 - PIPE SUB-ASSY, INJECTION, NO.1 23702 - PIPE SUB-ASSY, INJECTION, NO.2 23703 - PIPE SUB-ASSY, INJECTION, NO.3 23704 - PIPE SUB-ASSY, INJECTION, NO.4 23741 - CLAMP, INJECTION PIPE, NO.1 23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP) 23741B - CLAMP, INJECTION PIPE 23741B - CLAMP, INJECTION PIPE 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
