TOYOTA HIACE VAN COMUTER RZH153R-RBMNE / BODY / CONSOLE BOX BRACKET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

CONSOLE BOX BRACKET

CENTER CONSOLE BOX (9808-0008)RZH103,113..ARL ; (9808- )RZH153 ;

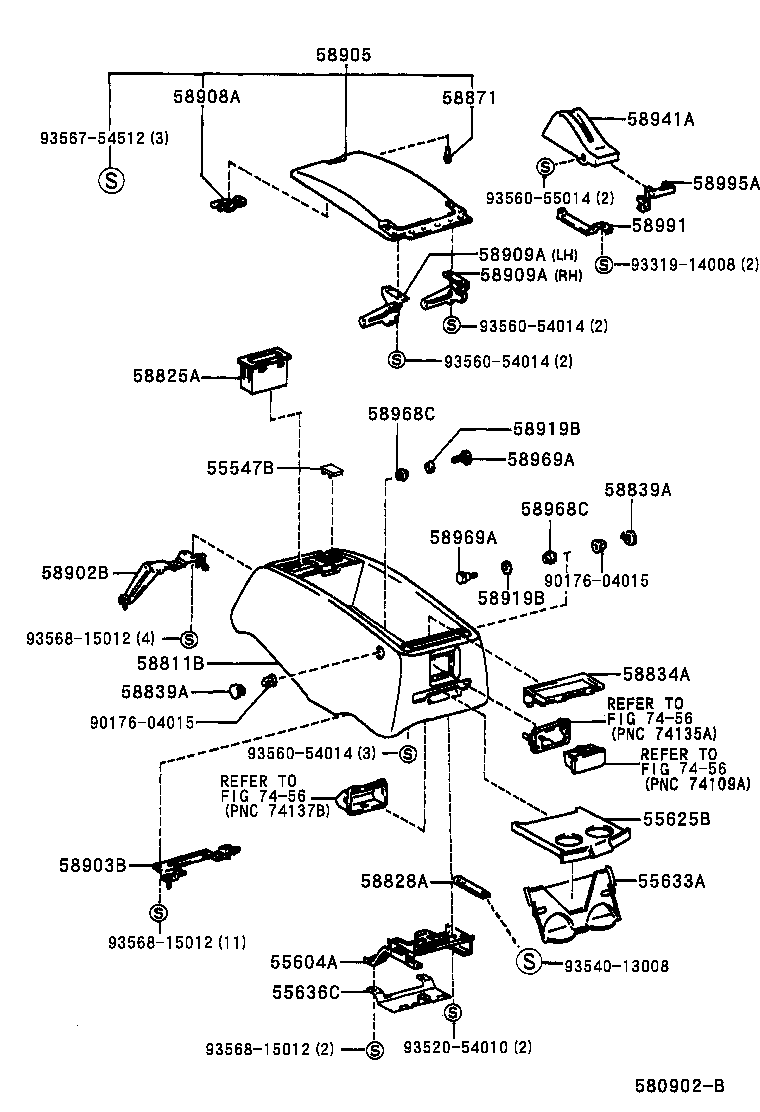

HIACE VAN COMUTER | CONSOLE BOX BRACKET 55547B - COVER, REMOTE CONTROL MIRROR HOLE 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP 55625B - TRAY, INSTRUMENT PANEL CUP HOLDER 55633A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1 55636C - BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1 58811B - BOX, CONSOLE 58825A - POCKET, CONSOLE BOX 58828A - BRACKET, CONSOLE BOX, LOWER 58834A - COVER, CONSOLE, LOWER 58839A - COVER, CONSOLE BOX HOLE 58839A - COVER, CONSOLE BOX HOLE 58871 - CUSHION, CONSOLE BOX 58902B - BRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1 58903B - BRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.2 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR 58909A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR 58909A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR 58919B - PLATE, CONSOLE BOX 58919B - PLATE, CONSOLE BOX 58941A - COVER, PARKING BRAKE HOLE 58968C - SHIM, CONSOLE COMPARTMENT DOOR STOPPER 58968C - SHIM, CONSOLE COMPARTMENT DOOR STOPPER 58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER 58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER 58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
