TOYOTA LAND CRUISER 100 UZJ100L-GNAEKA / BODY / FRAME

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

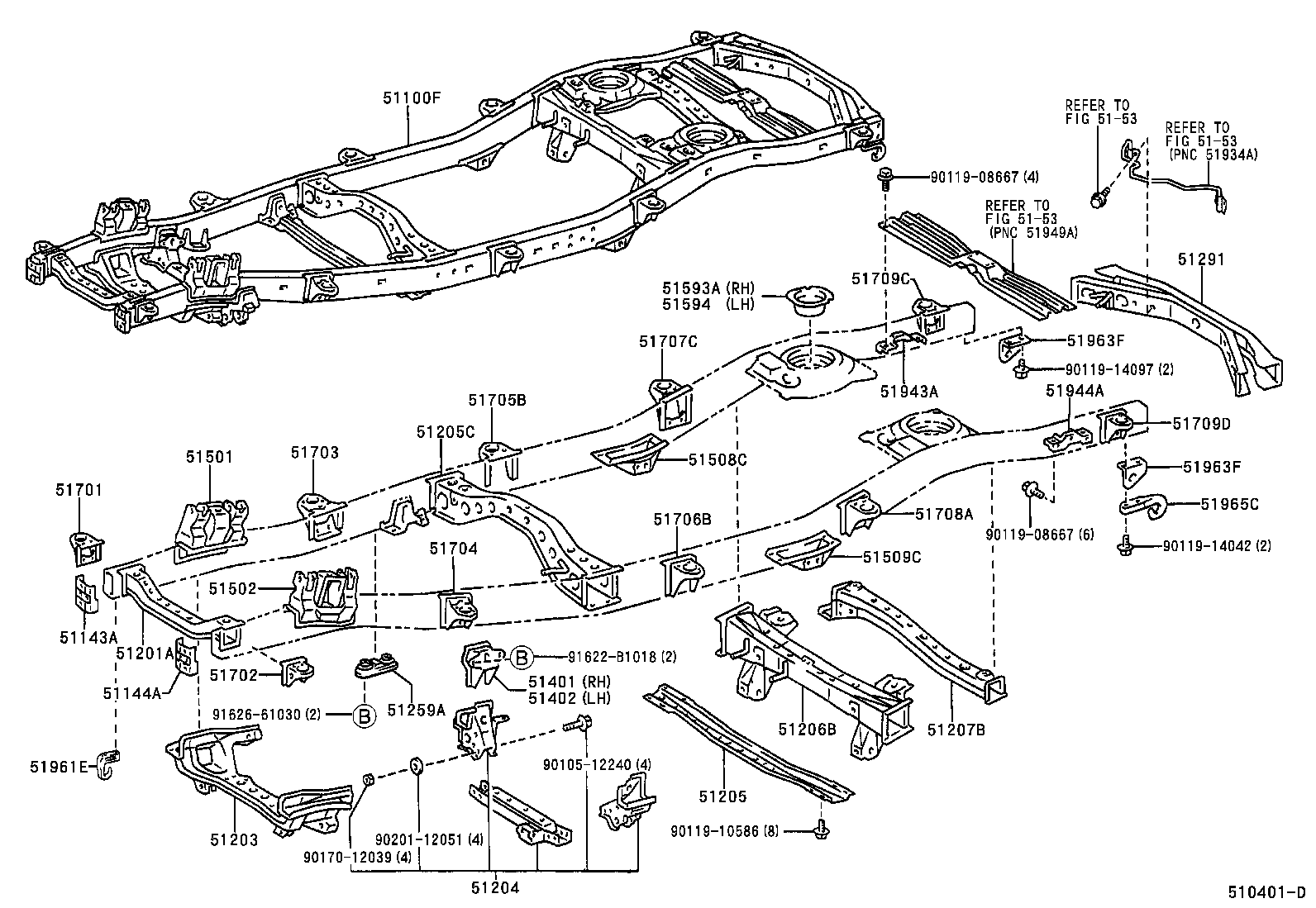

FRAME

(9801- )

LAND CRUISER 100 | FRAME 51100F - FRAME SUB-ASSY 51143A - REINFORCEMENT, SIDE RAIL, FRONT RH 51144A - REINFORCEMENT, SIDE RAIL, FRONT LH 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5 51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6 51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7 51259A - WEIGHT, NO.4 CROSSMEMBER DUMPER 51291 - CROSSMEMBER, FRAME, REAR 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH 51508C - BRACKET SUB-ASSY, LOWER CONTROL LINK, RH 51509C - BRACKET SUB-ASSY, LOWER CONTROL LINK, LH ** Refer Fig ** Refer Fig ** Refer Fig 51593A - BRACKET, REAR SPRING BUMPER, RH 51594 - BRACKET, REAR SPRING BUMPER, LH 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH 51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH 51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH 51707C - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH 51708A - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH 51709C - BRACKET SUB-ASSY, CAB MOUNTING, NO.5 RH 51709D - BRACKET SUB-ASSY, CAB MOUNTING, NO.5 LH 51943A - BRACKET, SPARE WHEEL CARRIER 51944A - BRACKET, SPARE WHEEL CARRIER, NO.2 51961E - HOOK, FRONT 51963F - HOOK, TRANSPORT 51963F - HOOK, TRANSPORT 51965C - HOOK, REAR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
