TOYOTA LAND CRUISER 100 UZJ100L-GNAEKA / BODY / REAR FLOOR PANEL REAR FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

REAR FLOOR PANEL REAR FLOOR MEMBER

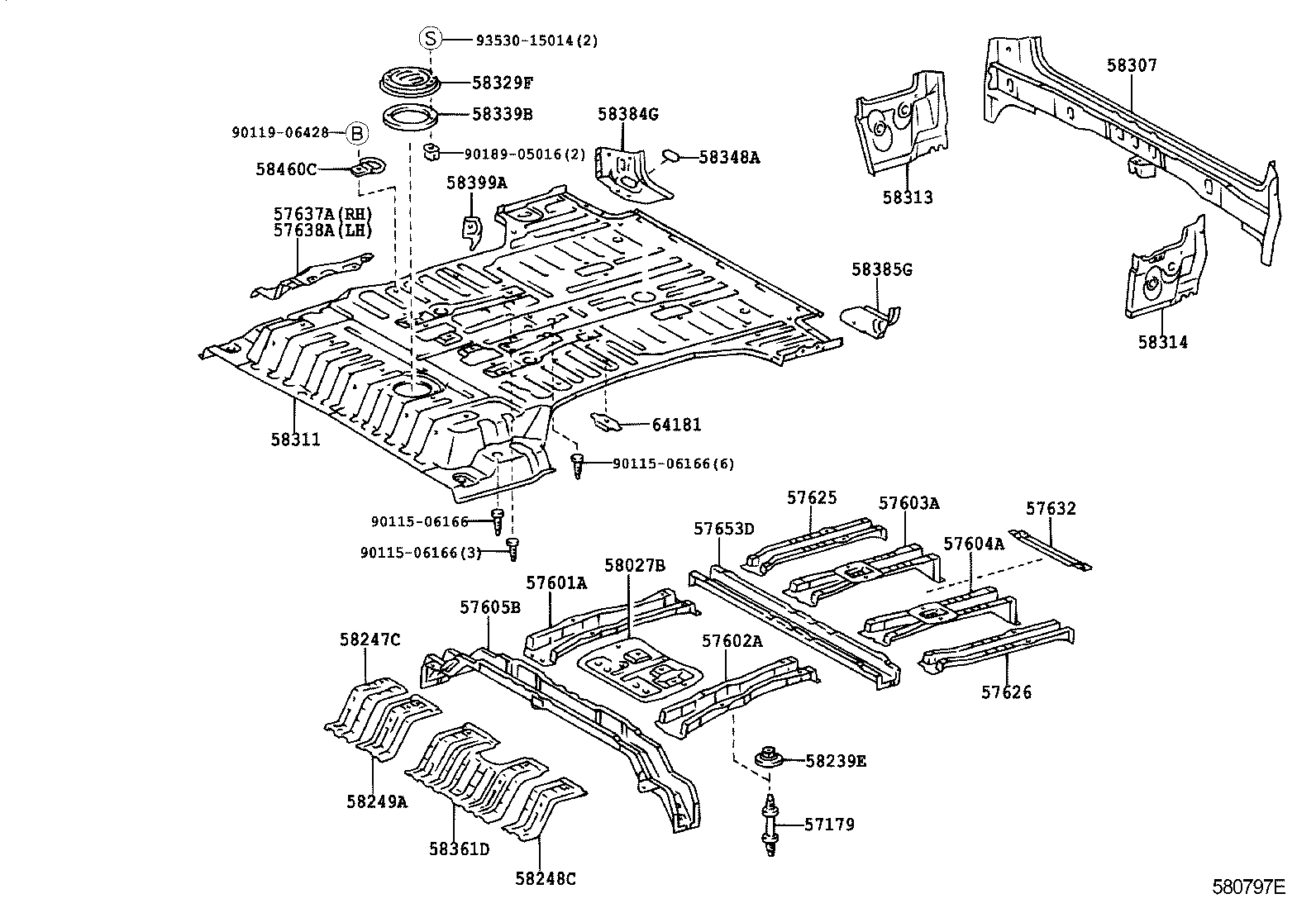

ILLUST NO. 1 OF 2(9801- )

LAND CRUISER 100 | REAR FLOOR PANEL REAR FLOOR MEMBER 57179 - BOLT, FLOOR CROSSMEMBER 57601A - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH 57602A - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 57625 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH 57626 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH 57632 - MEMBER, REAR FLOOR, CENTER NO.1 57637A - REINFORCEMENT, REAR FLOOR SIDE, RH 57638A - REINFORCEMENT, REAR FLOOR SIDE, LH 57653D - MEMBER, REAR FLOOR CROSS, NO.2 58027B - REINFORCE SUB-ASSY, SEAT BELT ANCHOR 58239E - PLATE, BELT ANCHOR NUT 58247C - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH 58248C - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH 58249A - REINFORCEMENT, REAR SEAT MOUNTING 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58313 - PANEL, REAR FLOOR SIDE, RH 58314 - PANEL, REAR FLOOR SIDE, LH 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 58339B - PACKING, REAR FLOOR SERVICE HOLE 58348A - COVER, REAR BODY MOUNTING SERVICE HOLE 58361D - REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH 58384G - GUSSET, LOWER BACK, UPPER RH 58385G - GUSSET, LOWER BACK, UPPER LH 58399A - RETAINER, NO.3 SEAT BELT ANCHOR TO FLOOR 58460C - STRIKER ASSY, LUGGAGE HOLD BELT 64181 - REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
