TOYOTA HILUX KUN15L-CRMDYW3 / POWERTRAIN-CHASSIS / REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

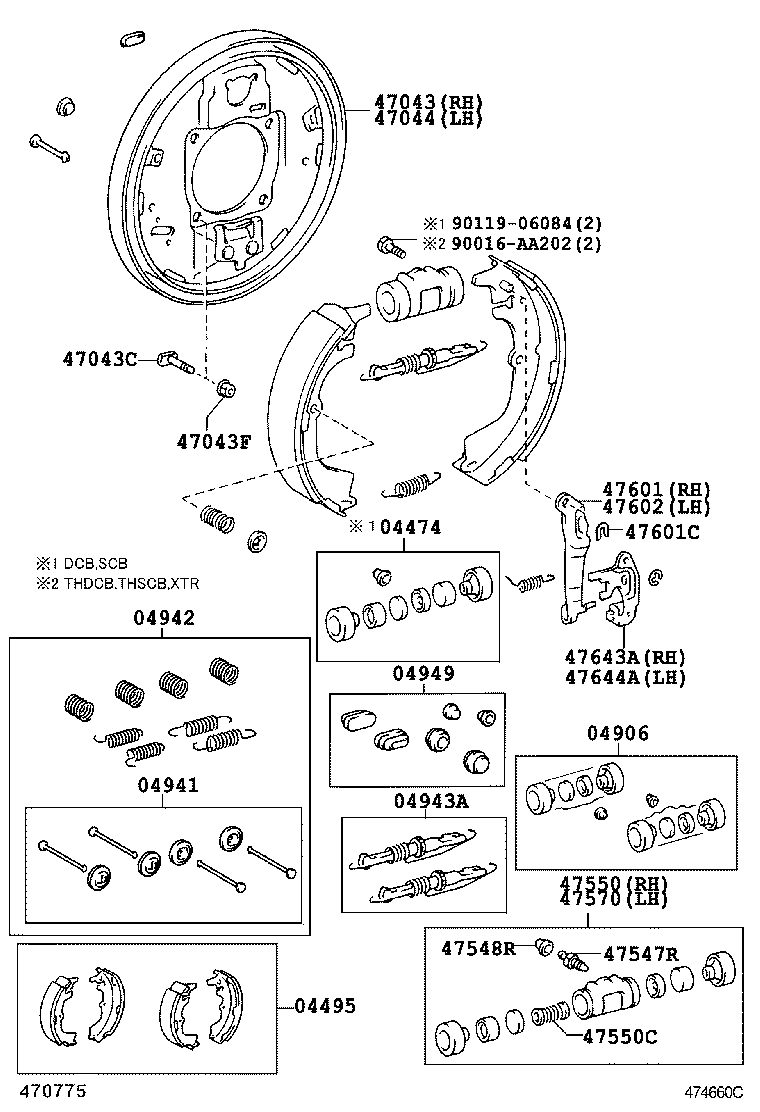

REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE

(0507- )KUN15

HILUX | REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE 04474 - CYLINDER KIT, REAR WHEEL 04495 - SHOE KIT, REAR BRAKE 04906 - CUP KIT, REAR WHEEL CYLINDER 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN 04942 - SPRING KIT, REAR BRAKE 04943A - STRUT KIT, REAR BRAKE 04949 - PLUG KIT, REAR BRAKE 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) 47601C - WASHER, C(FOR REAR BRAKE) 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH ** Std Part ** Std Part
