TOYOTA LAND CRUISER 100 UZJ100L-GNAEKA / TOOL-ENGINE-FUEL / MANIFOLD AIR INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

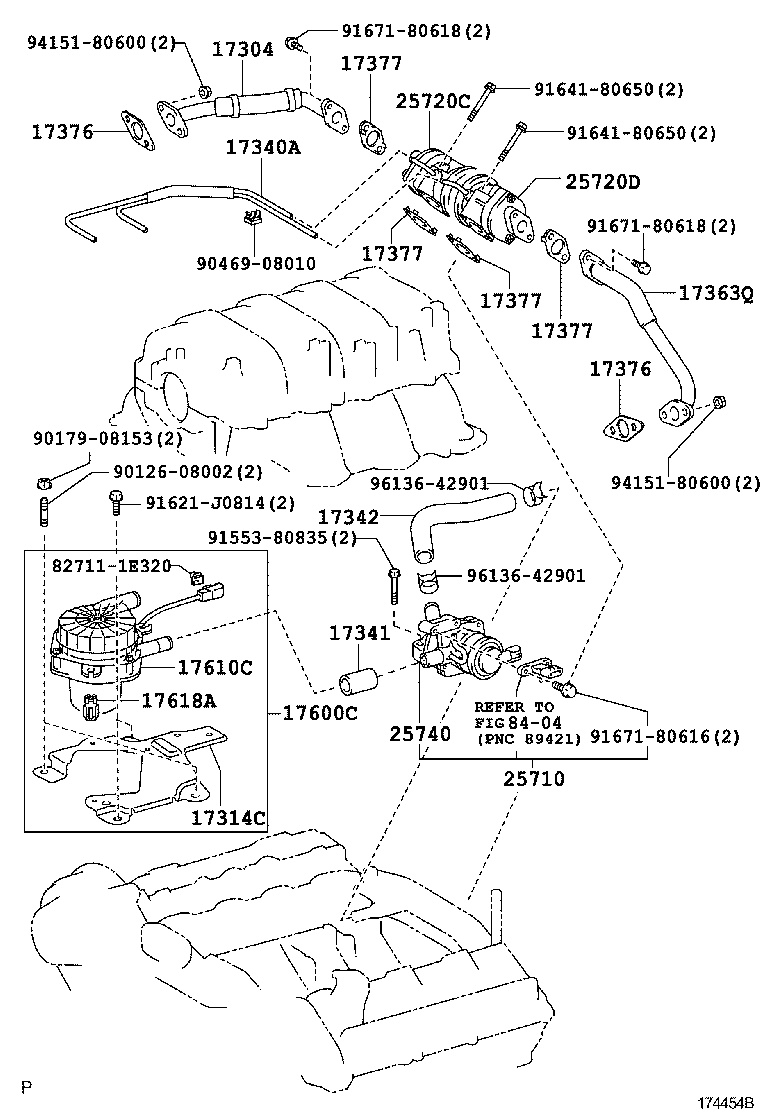

MANIFOLD AIR INJECTION SYSTEM

(0505- )

LAND CRUISER 100 | MANIFOLD AIR INJECTION SYSTEM 17304 - TUBE SUB-ASSY, AIR, RH 17314C - BRACKET, AIR PUMP 17340A - HOSE ASSY, VACCUUM SWITCHING VALVE 17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM) 17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM) 17363Q - TUBE, AIR, NO.3 17376 - GASKET, AIR TUBE, NO.1 17376 - GASKET, AIR TUBE, NO.1 17377 - GASKET, AIR TUBE, NO.2 17377 - GASKET, AIR TUBE, NO.2 17377 - GASKET, AIR TUBE, NO.2 17377 - GASKET, AIR TUBE, NO.2 17600C - PUMP ASSY, AIR 17610C - PUMP ASSY, AIR 17618A - INSULATOR, AIR PUMP 25710 - VALVE ASSY, AIR SWITCHING 25720C - VALVE ASSY, AIR SWITCHING, NO.1 25720D - VALVE ASSY, AIR SWITCHING, NO.2 25740 - VALVE ASSY, AIR CONTROL ** Std Part ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
