TOYOTA PICNIC AVENSIS VERSO CLM20R-ARMDYW / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

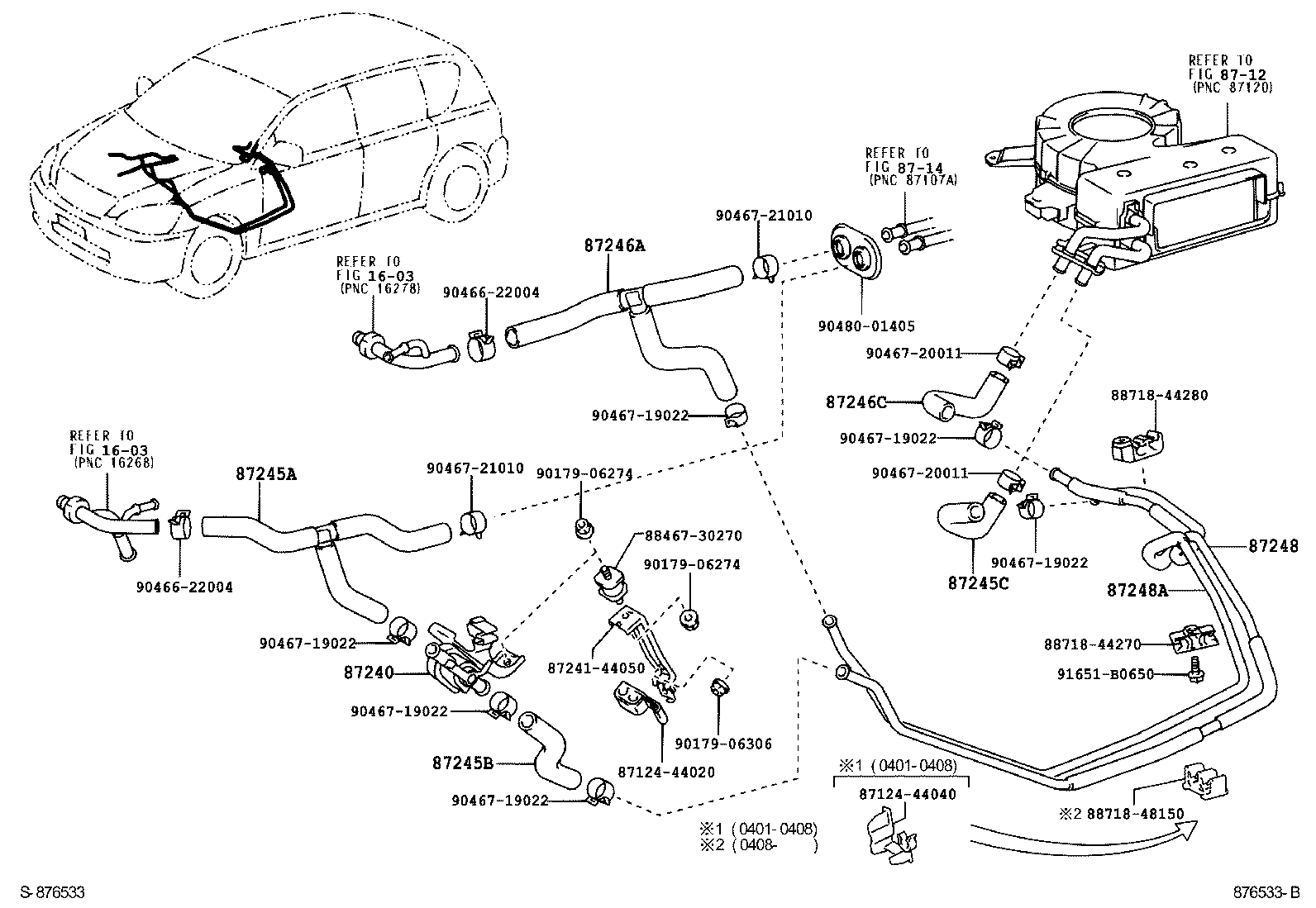

HEATING AIR CONDITIONING WATER PIPING

W(REAR HEATER) (0310- )CLM20..RHD

 PICNIC AVENSIS VERSO |  HEATING AIR CONDITIONING WATER PIPING ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part ** Refer Fig 87240 - VALVE ASSY, HEATER WATER  ** Std Part 87245A - HOSE, HEATER WATER, INLET A 87245B - HOSE, HEATER WATER, INLET B 87245C - HOSE, HEATER WATER ,INLET C 87246A - HOSE, HEATER WATER, OUTLET A 87246C - HOSE, HEATER WATER, OUTLET C 87248 - PIPE SUB-ASSY, WATER 87248A - PIPE, HEATER WATER INLET, A  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
