TOYOTA DYNA XZU415L-TKFRWW3 / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

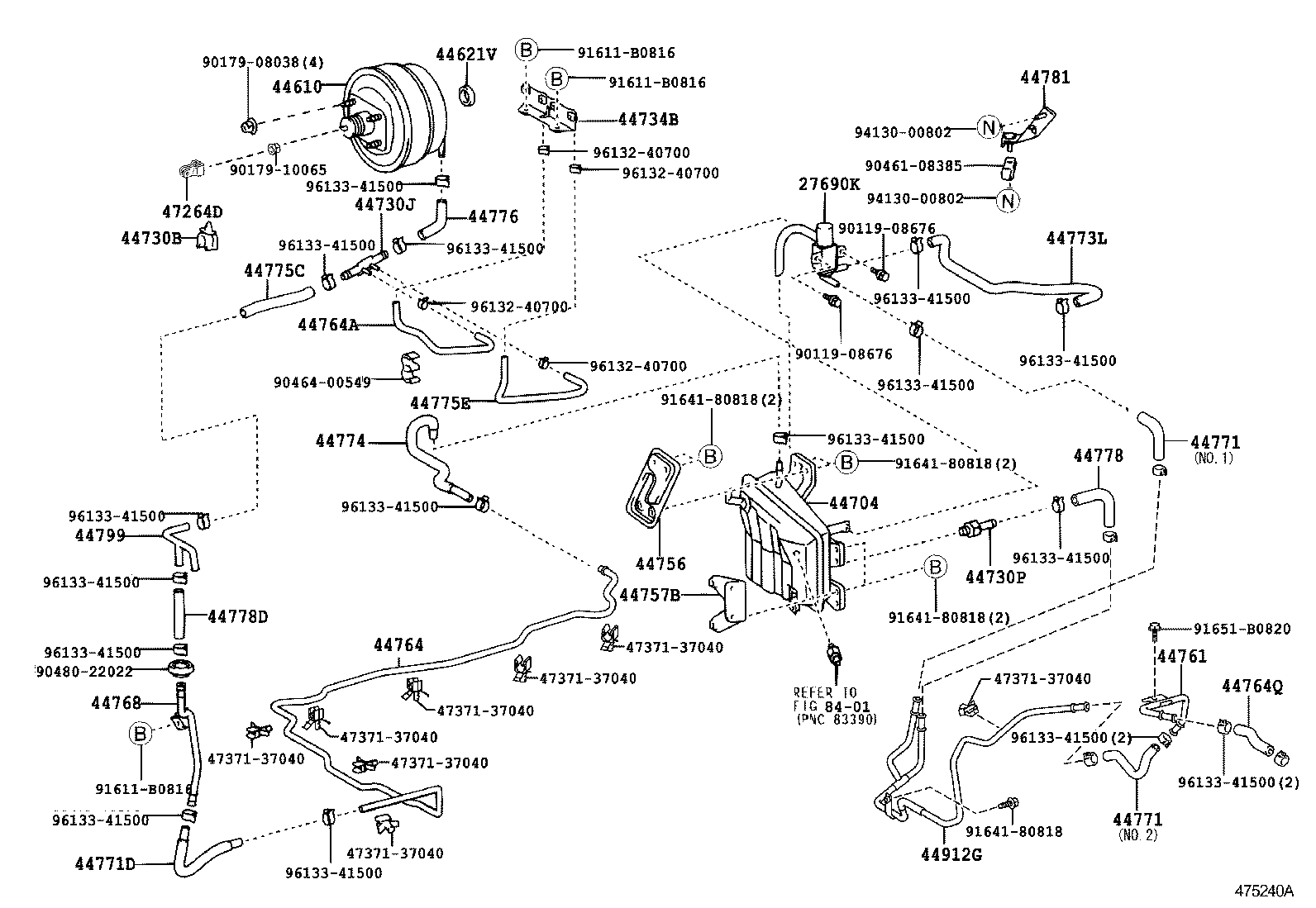

BRAKE BOOSTER VACUUM TUBE

W(ABS & CLUTCH BOOSTER) (0608- )DCR

DYNA | BRAKE BOOSTER VACUUM TUBE 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) 44610 - BOOSTER ASSY, BRAKE 44621V - SEAL, BOOSTER BODY 44704 - RESERVOIR SUB-ASSY, VACUUM 44730B - CLAMP, VACUUM HOSE 44730J - WAY(FOR BOOSTER VACUUM) 44730P - VALVE ASSY, VACUUM CHECK, NO.1 44734B - BRACKET, BOOSTER SUPPORT 44756 - BRACKET, VACUUM RESERVOIR 44757B - BRACKET, VACUUM TANK CLAMP, NO.2 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR 44764 - TUBE, BOOSTER VACUUM 44764A - HOSE, BOOSTER VACUUM 44764Q - HOSE(FOR CONNECTOR TO VACUUM RESERVOIR TUBE) 44768 - TUBE, BOOSTER VACUUM 44771 - HOSE, VACUUM TUBE CONNECTOR 44771 - HOSE, VACUUM TUBE CONNECTOR 44771D - HOSE, VACUUM TUBE CONNECTOR 44773L - HOSE, SOLENOID TO EXHAUST RETARDER 44774 - HOSE, UNION TO CONNECTOR TUBE 44775C - HOSE, CONNECTOR TO WAY 44775E - HOSE, WAY TO CONNECTOR 44776 - HOSE, BRAKE BOOSTER 44778 - HOSE, CONNECTOR TO CHECK VALVE 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE 44781 - BRACKET, HOSE 44799 - WAY, BRAKE VACUUM HOSE 44912G - TUBE, 3 WAY TO MAGNETIC VALVE 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
