TOYOTA PREVIA TARAGO ACR30R-MFSEKQ / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

HEATING AIR CONDITIONING COOLER UNIT

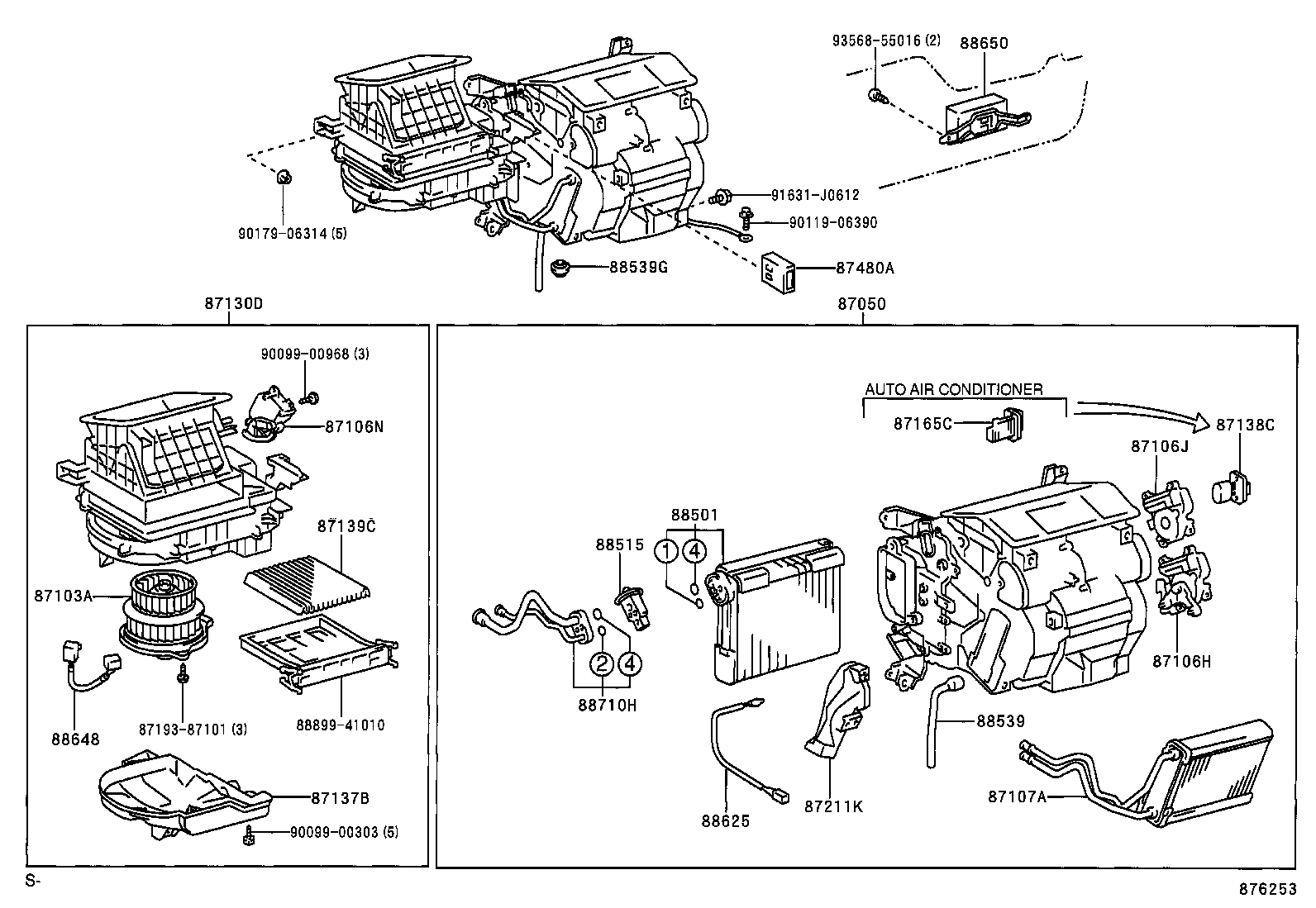

FRONT ILLUST NO. 1 OF 3(0304- )RHD

PREVIA TARAGO | HEATING AIR CONDITIONING COOLER UNIT 87050 - RADIATOR ASSY, AIR CONDITIONER 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) 87107A - UNIT SUB-ASSY, HEATER RADIATOR 87130D - BLOWER ASSY 87137B - COVER, HEATER BLOWER 87138C - RESISTOR, BLOWER 87139C - FILTER, CLEAN AIR 87165C - CONTROL, BLOWER MOTOR ** Std Part 87211K - DUCT, AIR 87480A - AMPLIFIER ASSY, HEATER 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88515 - VALVE, COOLER EXPANSION 88539 - HOSE, COOLER UNIT DRAIN, NO.1 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) 88625 - THERMISTOR, COOLER, NO.1 88648 - WIRING, COOLER, NO.1 88650 - AMPLIFIER ASSY, COOLER STABILIZER 88710H - TUBE & ACCESSORY ASSY, AIRCONDITIONER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
