TOYOTA PREVIA TARAGO ACR50R-GRPDKQ / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FUEL TANK TUBE

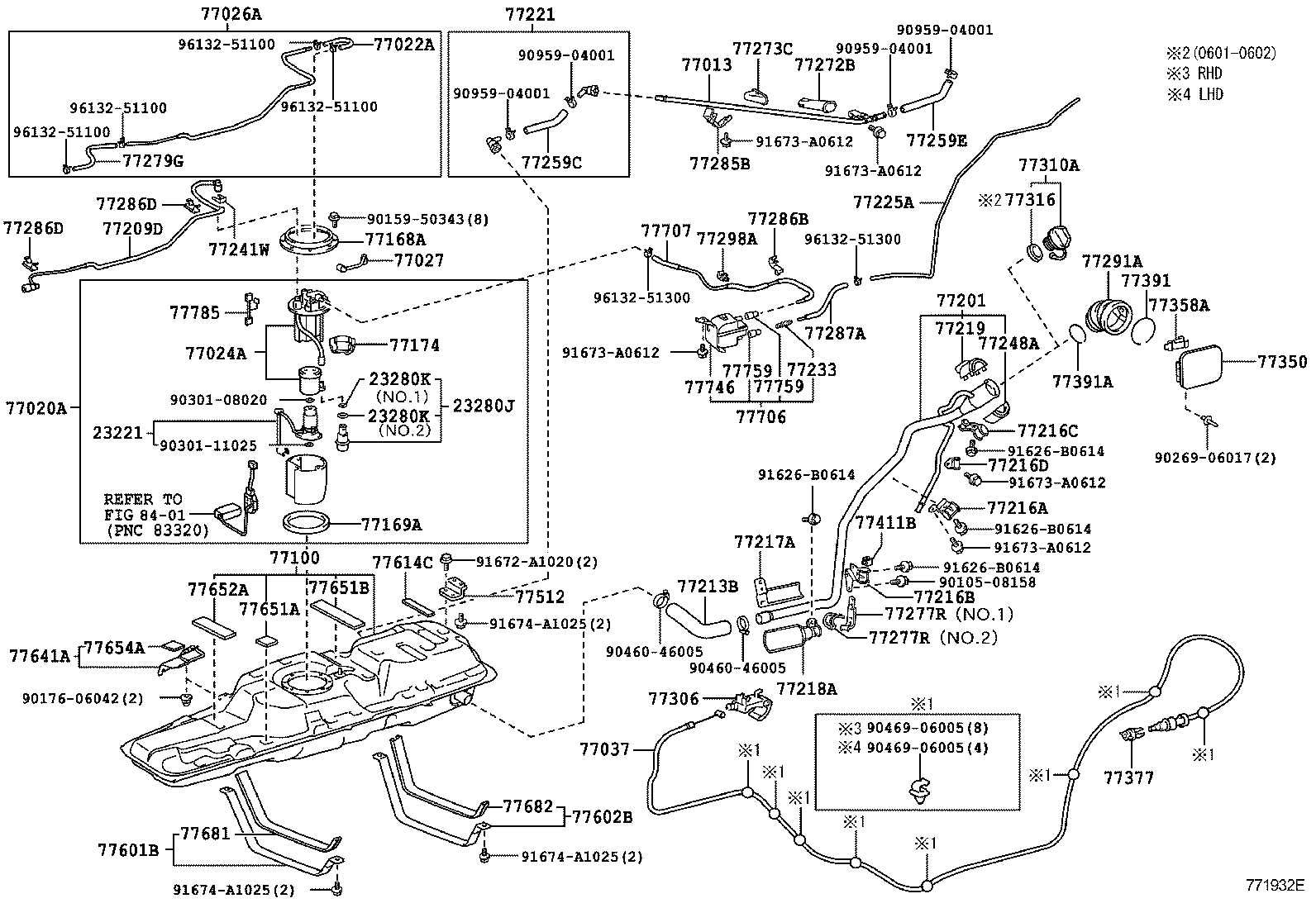

FUEL TANK ILLUST NO. 1 OF 2(0601-0604)

PREVIA TARAGO | FUEL TANK TUBE 23221 - PUMP, FUEL 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77024A - PLATE SUB-ASSY, FUEL SUCTION 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID 77100 - TANK ASSY, FUEL 77168A - PLATE, FUEL TANK VENT TUBE SET 77169A - GASKET, FUEL SUCTION TUBE SET 77174 - SUPPORT, FUEL SUCTION, NO.1 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77209D - TUBE SUB-ASSY, FUEL TANK MAIN 77213B - HOSE, FUEL TANK TO FILLER PIPE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77216B - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77216C - SUPPORT, FUEL TANK FILLER PIPE NO.3 77216D - SUPPORT, FUEL TANK FILLER PIPE NO.4 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 77219 - COVER, FUEL TANK FILLER PIPE 77221 - TUBE, FUEL TANK BREATHER, NO.1 77225A - TUBE, FUEL TANK BREATHER, NO.5 77233 - JOINT, FUEL HOSE 77241W - CLIP, TUBE JOINT 77248A - HOLDER, FUEL TANK FILLER PIPE COVER 77259C - HOSE, FUEL 77259E - HOSE, FUEL 77272B - SUPPORT, BREATHER TUBE, NO.1 77273C - SUPPORT, BREATHER TUBE, NO.2 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77279G - HOSE, FUEL, NO.2 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77286D - CLAMP, FUEL TUBE, NO.2 77286D - CLAMP, FUEL TUBE, NO.2 77287A - HOSE, FUEL 77291A - SHIELD, FUEL TANK FILLER PIPE 77298A - CLAMP, FUEL TUBE, NO.4 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77358A - STOPPER, FUEL FILLER OPENING LID 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77512 - BRACKET, FUEL TANK, REAR 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77614C - SEAL, FUEL TANK COVER 77641A - PROTECTOR, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77651B - CUSHION, FUEL TANK 77652A - CUSHION, FUEL TANK, NO.2 77654A - CUSHION, FUEL TANK, NO.4 77681 - SEAT, FUEL TANK BAND, RH 77682 - SEAT, FUEL TANK BAND, LH 77706 - FILTER SUB-ASSY, CHARCOAL CANISTER 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET 77746 - FILTER, CHARCOAL CANISTER, NO.2 77759 - HOSE, CHARCOAL CANISTER 77759 - HOSE, CHARCOAL CANISTER 77785 - HARNESS, FUEL PUMP ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
