TOYOTA COASTER BZB40R-ZCMSC / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FUEL TANK TUBE

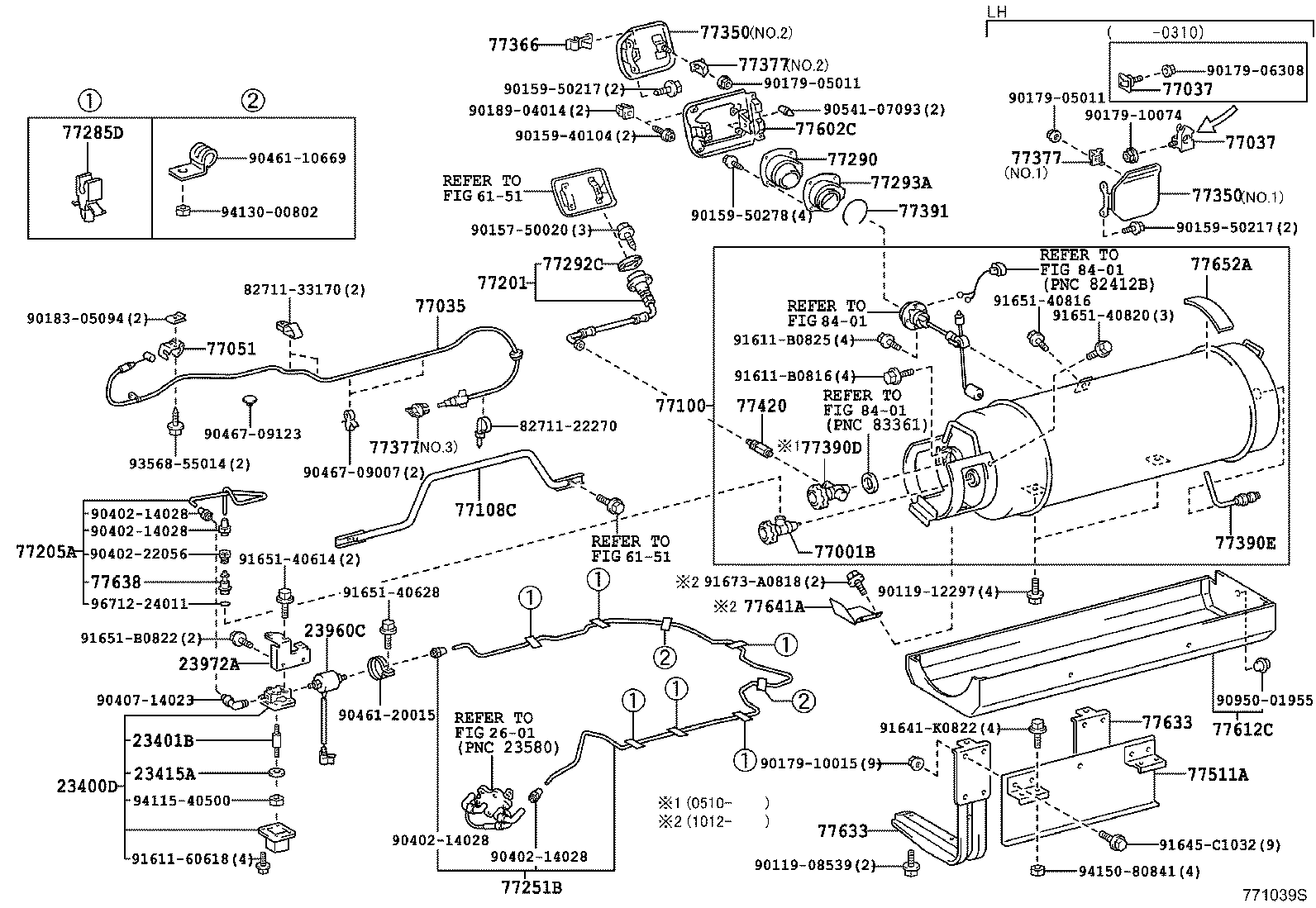

FUEL TANK(LPG) ILLUST NO. 1 OF 4(0108- )BZB40,50

COASTER | FUEL TANK TUBE 23400D - FILTER ASSY, LPG 23401B - BOLT 23415A - PLATE 23960C - VALVE ASSY, SOLENOID LPG 23972A - BRACKET, FILTER & SOLENOID VALVE ** Refer Fig ** Refer Fig ** Refer Fig 77001B - VALVE (FOR LPG TANK) 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID 77051 - LEVER SUB-ASSY, FUEL LID OPEN 77100 - TANK ASSY, FUEL 77108C - PROTECTOR SUB-ASSY, FUEL TANK 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77205A - TUBE SUB-ASSY, FUEL MAIN 77251B - TUBE, FUEL MAIN 77285D - CLAMP, FUEL TUBE, NO.1 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77292C - SHIELD, FUEL TANK FILLER PIPE, NO.2 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 77350 - LID ASSY, FUEL FILLER OPENING 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77390D - VALVE ASSY, FUEL TANK OVER FILL CHECK 77390E - VALVE, FUEL(FOR LPG) 77391 - RING, FUEL INLET BOX 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 77511A - BRACKET, FUEL TANK 77602C - COVER SUB-ASSY, FUEL TANK, LOWER 77612C - COVER, FUEL TANK, LOWER 77633 - STAY, FUEL TANK 77633 - STAY, FUEL TANK 77638 - SLEEVE, TANK VALVE JOINT 77641A - PROTECTOR, FUEL TANK, NO.1 77652A - CUSHION, FUEL TANK, NO.2 ** Std Part ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
