TOYOTA COASTER BZB40R-ZCMSC / TOOL-ENGINE-FUEL / LPG CARBURETOR FUEL PIPE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

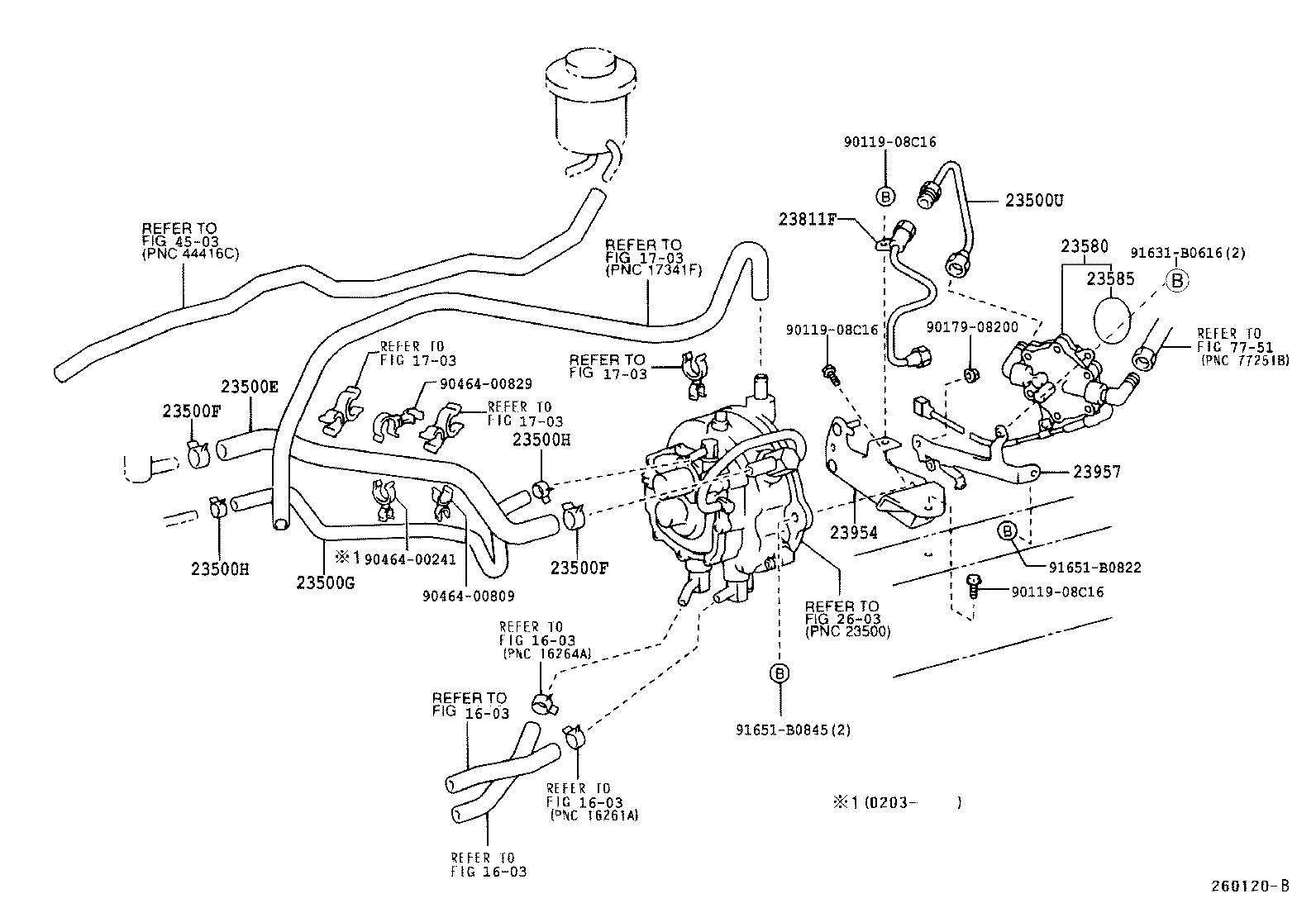

LPG CARBURETOR FUEL PIPE

(0108- )1BZFPE

COASTER | LPG CARBURETOR FUEL PIPE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 23500E - HOSE, WATER(FOR LPG REGULATOR INLET) 23500F - CLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE) 23500F - CLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE) 23500G - HOSE, WATER(FOR LPG REGULATOR OUTLET) 23500H - CLAMP OR CLIP(FOR LPG REGULATOR OUTLET WATER HOSE) 23500H - CLAMP OR CLIP(FOR LPG REGULATOR OUTLET WATER HOSE) 23500U - PIPE, WATER BY-PASS, NO.2(FOR LPG) 23580 - PREHEATER ASSY, LPG 23585 - RING, O(FOR PREHEATER) 23811F - PIPE, FUEL, NO.1 23954 - BRACKET, LPG REGULATOR 23957 - STAY, LPG REGULATOR ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
