TOYOTA DYNA XZU412L-TKFRW3 / BODY / FRONT FLOOR PANEL FRONT FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

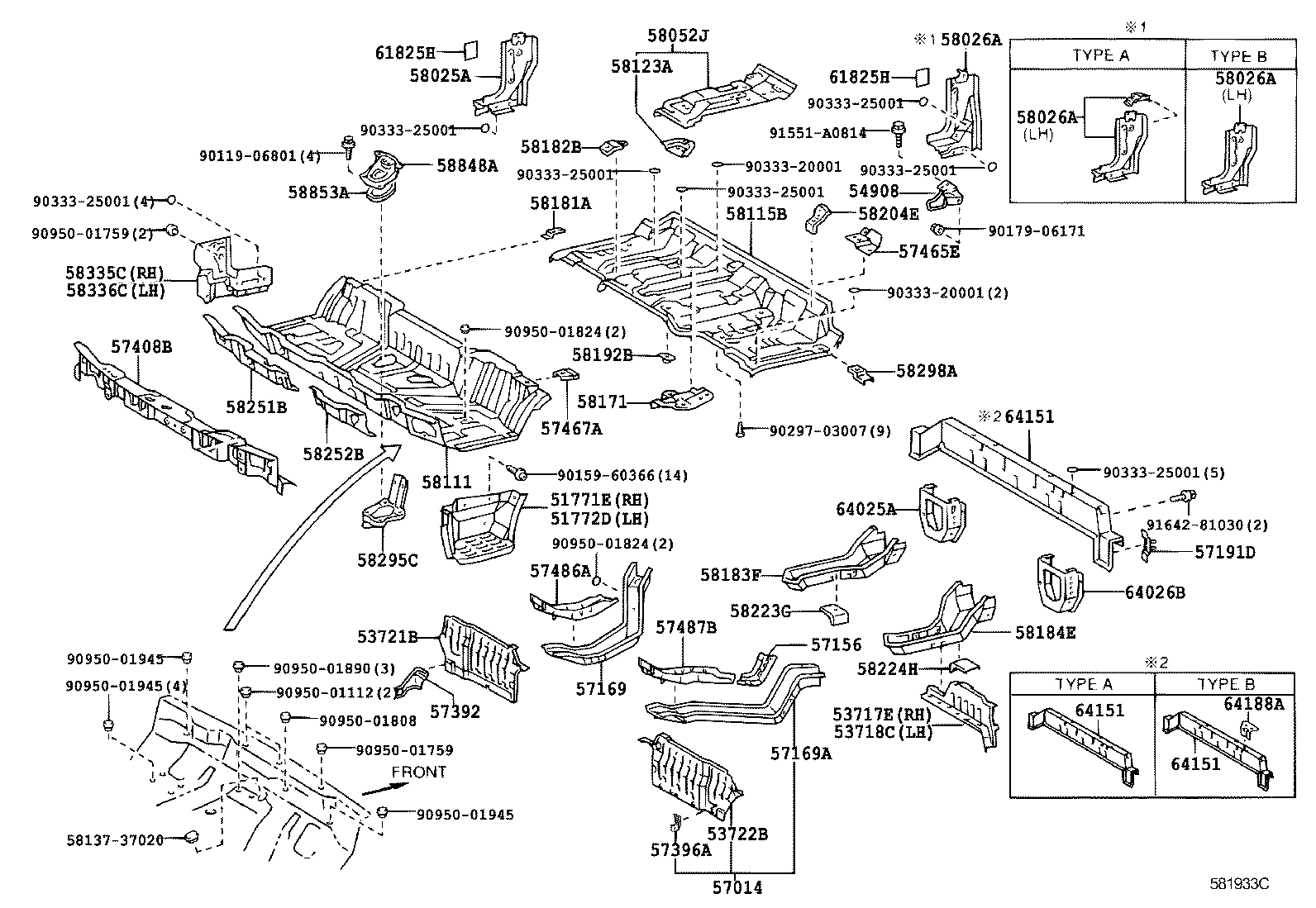

FRONT FLOOR PANEL FRONT FLOOR MEMBER

CKD PACKAGE ILLUST NO. 1 OF 2(0309-0610)WU410,XZU412,422..RHD..GEN..IV3 ; (04

DYNA | FRONT FLOOR PANEL FRONT FLOOR MEMBER 51771E - PLATE, STEP, RH 51772D - PLATE, STEP, LH 53717E - APRON, FRONT FENDER, NO.2 RH 53718C - APRON, FRONT FENDER, NO.2 LH 53721B - APRON SUB-ASSY, FENDER SIDE, RH 53722B - APRON SUB-ASSY, FENDER SIDE, LH 54908 - BRACKET SUB-ASSY, TILT CAB GRIP 57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH 57169 - MEMBER, FRONT FLOOR, FRONT RH 57169A - MEMBER, FRONT FLOOR, FRONT LH 57191D - BRACKET, FLOOR NO.1 CROSSMEMBER 57392 - PLATE, FRONT STEP, NO.2 RH 57396A - PLATE, FRONT STEP, NO.2 LH 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS 57465E - RETAINER, BELT ANCHOR, NO.2 57467A - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH 57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH 57487B - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH 58052J - REINFORCEMENT SUB-ASSY, ENGINE SUB COVER 58111 - PAN, FRONT FLOOR 58115B - PANEL, FRONT FLOOR, REAR 58123A - SUPPORT, SHIFT & SELECT LEVER ** Std Part 58171 - REINFORCEMENT, PARKING BRAKE BASE 58181A - RETAINER, SEAT RAIL, FRONT 58182B - RETAINER, SEAT RAIL, FRONT LH 58183F - REINFORCEMENT, REAR MOUNTING, RH 58184E - REINFORCEMENT, REAR MOUNTING, LH 58192B - PLATE, FRONT FLOOR, REAR 58204E - BRACKET SUB-ASSY, FRONT SEAT 58223G - REINFORCEMENT, SEAT SET, NO.1 58224H - REINFORCEMENT, SEAT SET, NO.2 58251B - BRACE, FLOOR PANEL, FRONT 58252B - BRACE, FLOOR PANEL, FRONT LH 58295C - BRACKET, FLOOR SHIFT LEVER, NO.1 58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH 58335C - PLATE, FLOOR SIDE, FRONT RH 58336C - PLATE, FLOOR SIDE, FRONT LH 58848A - COVER, SHIFT LEVER HOLE 58853A - PACKING, SHIFT LEVER HOLE 61825H - PAD, NOISE SHUTTER, NO.2 61825H - PAD, NOISE SHUTTER, NO.2 64025A - BRACKET SUB-ASSY, REAR MOUNTING, RH 64026B - BRACKET SUB-ASSY, REAR MOUNTING, LH 64151 - FRAME, BACK 64151 - FRAME, BACK 64151 - FRAME, BACK 64188A - BRACKET, SEAT SET FRAME ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
