TOYOTA LAND CRUISER 120 KDJ120R-GKAEYW / POWERTRAIN-CHASSIS / REAR AXLE SHAFT HUB

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

REAR AXLE SHAFT HUB

(0209-0908)

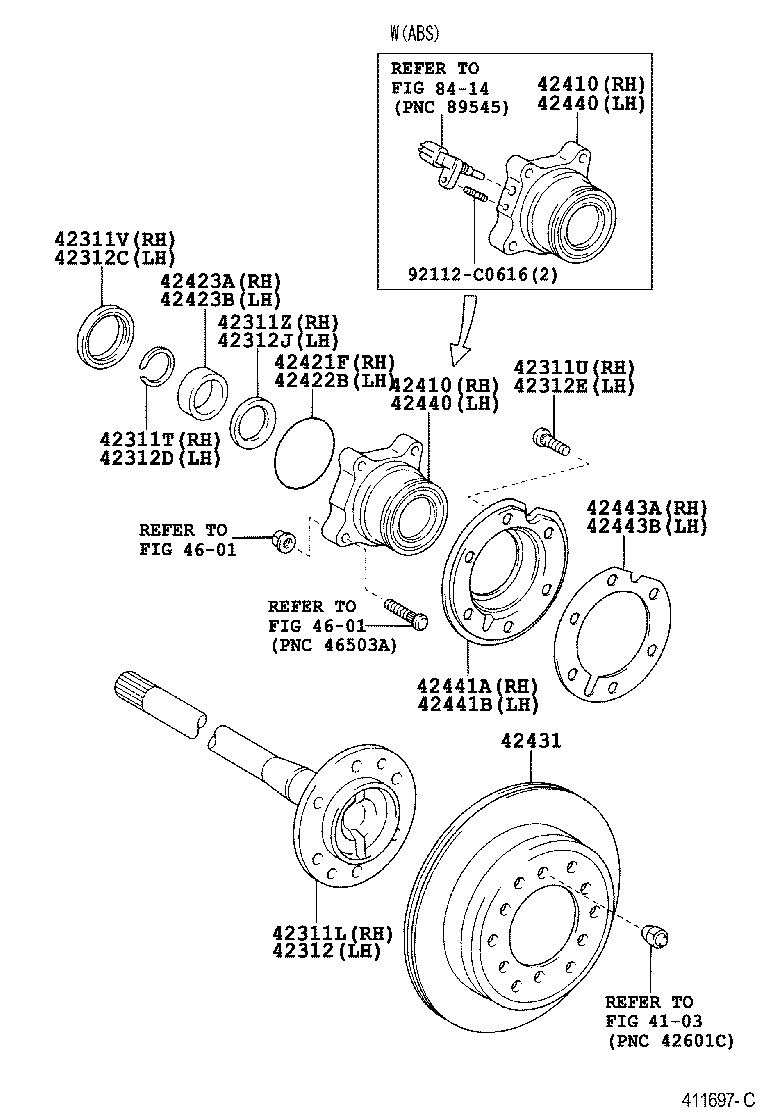

LAND CRUISER 120 | REAR AXLE SHAFT HUB ** Refer Fig 42311L - SHAFT, REAR AXLE, RH 42311T - RING, SNAP (FOR REAR AXLE SHAFT RH) 42311U - BOLT, HUB (FOR REAR AXLE RH) 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) 42311Z - WASHER(FOR REAR AXLE SHAFT RH) 42312 - SHAFT, REAR AXLE, LH 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) 42312D - RING, SNAP (FOR REAR AXLE SHAFT LH) 42312E - BOLT, HUB (FOR REAR AXLE LH) 42312J - WASHER (FOR REAR AXLE SHAFT LH) 42410 - HUB & BEARING ASSY, REAR AXLE, RH 42410 - HUB & BEARING ASSY, REAR AXLE, RH 42421F - RING, O (FOR REAR AXLE BEARING CASE RH) 42422B - RING, O (FOR REAR AXLE BEARING CASE LH) 42423A - RETAINER, REAR AXLE BEARING, INNER RH 42423B - RETAINER, REAR AXLE BEARING, INNER LH 42431 - DISC, REAR 42440 - HUB & BEARING ASSY, REAR AXLE, LH 42440 - HUB & BEARING ASSY, REAR AXLE, LH 42441A - DEFLECTOR, BRAKE DRUM OIL RH 42441B - DEFLECTOR, BRAKE DRUM OIL LH 42443A - GASKET, BRAKE DRUM OIL DEFLECTOR, RH 42443B - GASKET, BRAKE DRUM OIL DEFLECTOR, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part
