TOYOTA LAND CRUISER 200 202 VDJ200L-GMTEZW / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

REAR SPRING SHOCK ABSORBER

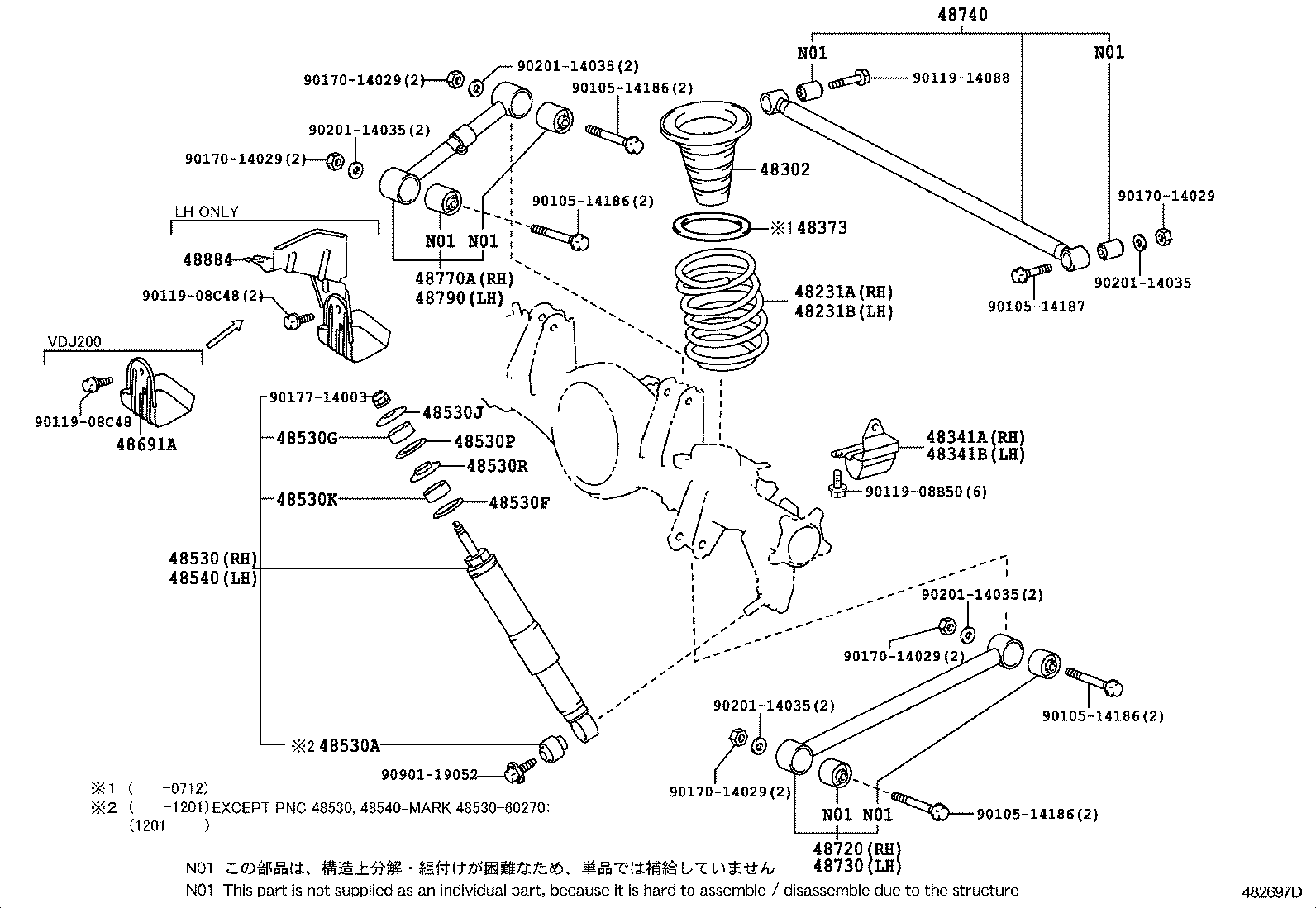

ILLUST NO. 1 OF 2(0709- )

LAND CRUISER 200 202 | REAR SPRING SHOCK ABSORBER 48231A - SPRING, COIL, REAR RH 48231B - SPRING, COIL, REAR LH 48302 - SPRING SUB-ASSY, HOLLOW 48341A - BUMPER, REAR SPRING, NO.1 RH 48341B - BUMPER, REAR SPRING, NO.1 LH 48373 - SPACER, REAR SPRING 48530 - ABSORBER ASSY, SHOCK, REAR RH 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530F - RETAINER, SHOCK ABSORBER CUSHION(FOR REAR) 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) 48530R - RETAINER, CUSHION, NO.3(FOR REAR SHOCK ABSORBER) 48540 - ABSORBER ASSY, SHOCK, REAR LH 48691A - INSULATOR, UPPER ARM BUSH, HEAT 48720 - ARM ASSY, LOWER CONTROL, RH 48730 - ARM ASSY, LOWER CONTROL, LH 48740 - ROD ASSY, REAR LATERAL CONTROL 48770A - ARM ASSY, UPPER CONTROL, REAR RH 48790 - ARM ASSY, UPPER CONTROL, REAR LH 48884 - INSULATOR, REAR STABILIZER CONTROL TUBE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
