TOYOTA LAND CRUISER 200 202 UZJ200R-GNAEKW / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

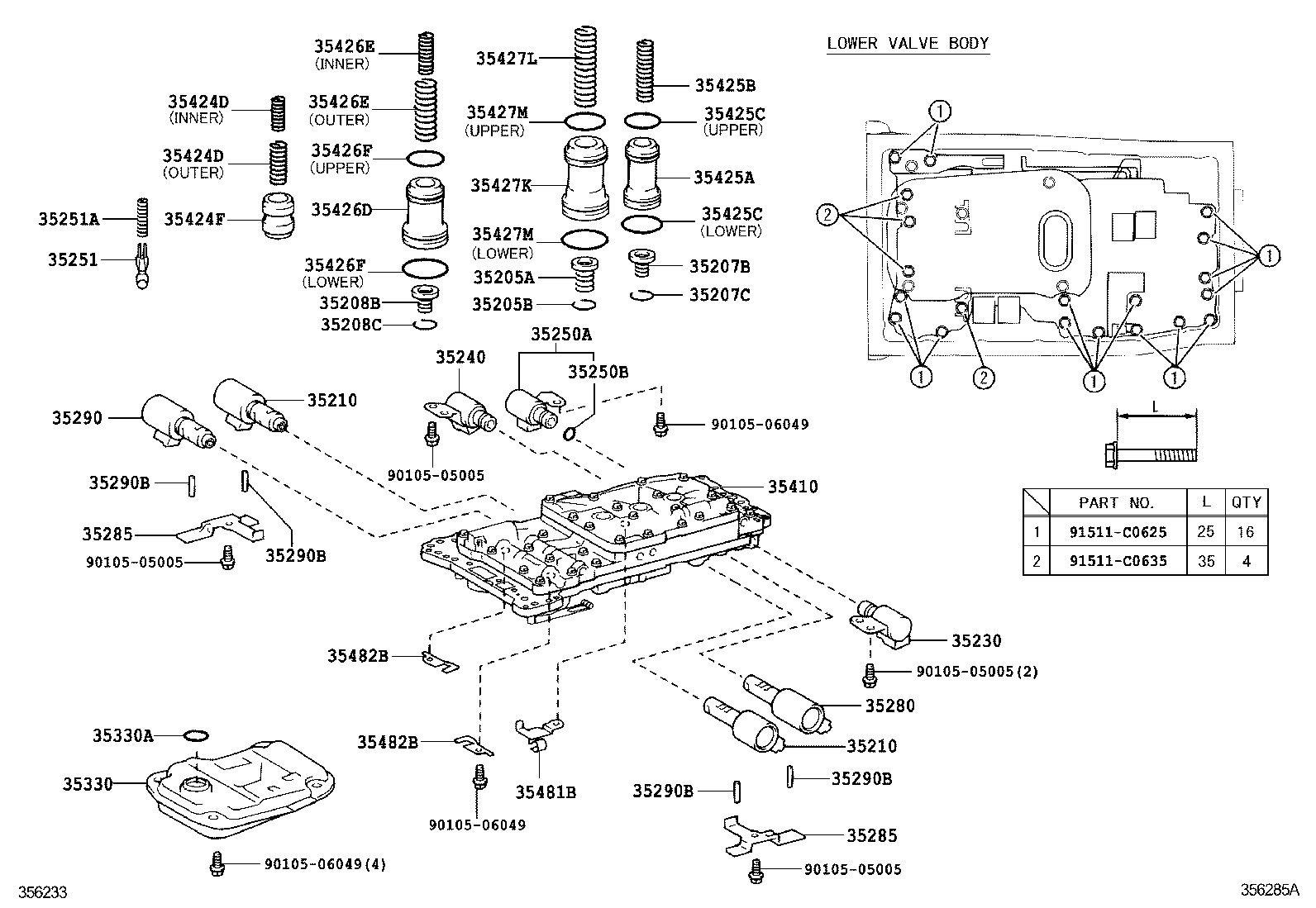

VALVE BODY OIL STRAINER ATM

A750F ILLUST NO. 1 OF 2(0709-1201)UZJ200

LAND CRUISER 200 202 | VALVE BODY OIL STRAINER ATM 35205A - SPRING SUB-ASSY, B-3 ACCUMULATOR 35205B - RING, HOLE SNAP (FOR B-3 ACCUMULATOR SPRING) 35207B - SPRING SUB-ASSY, C-2 ACCUMULATOR 35207C - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) 35208B - SPRING SUB-ASSY, C-3 ACCUMULATOR 35208C - RING, HOLE SNAP (FOR C-3 ACCUMULATOR SPRING) 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY 35250A - SOLENOID ASSY, TRANSMISSION, NO.3 35250B - RING, O NO.3(FOR TRANSMISSION SOLENOID) 35251 - BODY, CHECK BALL 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) 35280 - SOLENOID ASSY, LOCK UP CONTROL 35285 - PLATE, SOLENOID LOCK 35285 - PLATE, SOLENOID LOCK 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) 35330 - STRAINER ASSY, VALVE BODY OIL 35330A - RING, O (FOR OIL STRAINER) 35410 - BODY ASSY, TRANSMISSION VALVE 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) 35424F - VALVE, C-1 ACCUMULATOR 35425A - PISTON, C-2 ACCUMULATOR 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35426D - PISTON, C-3 ACCUMULATOR 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) 35427K - PISTON, B-3 ACCUMULATOR 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) 35427M - RING, O (FOR B-3 ACCUMULATOR PISTON) 35427M - RING, O (FOR B-3 ACCUMULATOR PISTON) 35481B - CLAMP, VALVE BODY WIRE HARNESS 35482B - CLAMP, TEMPERATURE SENSOR 35482B - CLAMP, TEMPERATURE SENSOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
