TOYOTA PRIUS NHW20R-AHEEBQ / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FLOOR PAN LOWER BACK PANEL

(0308- )

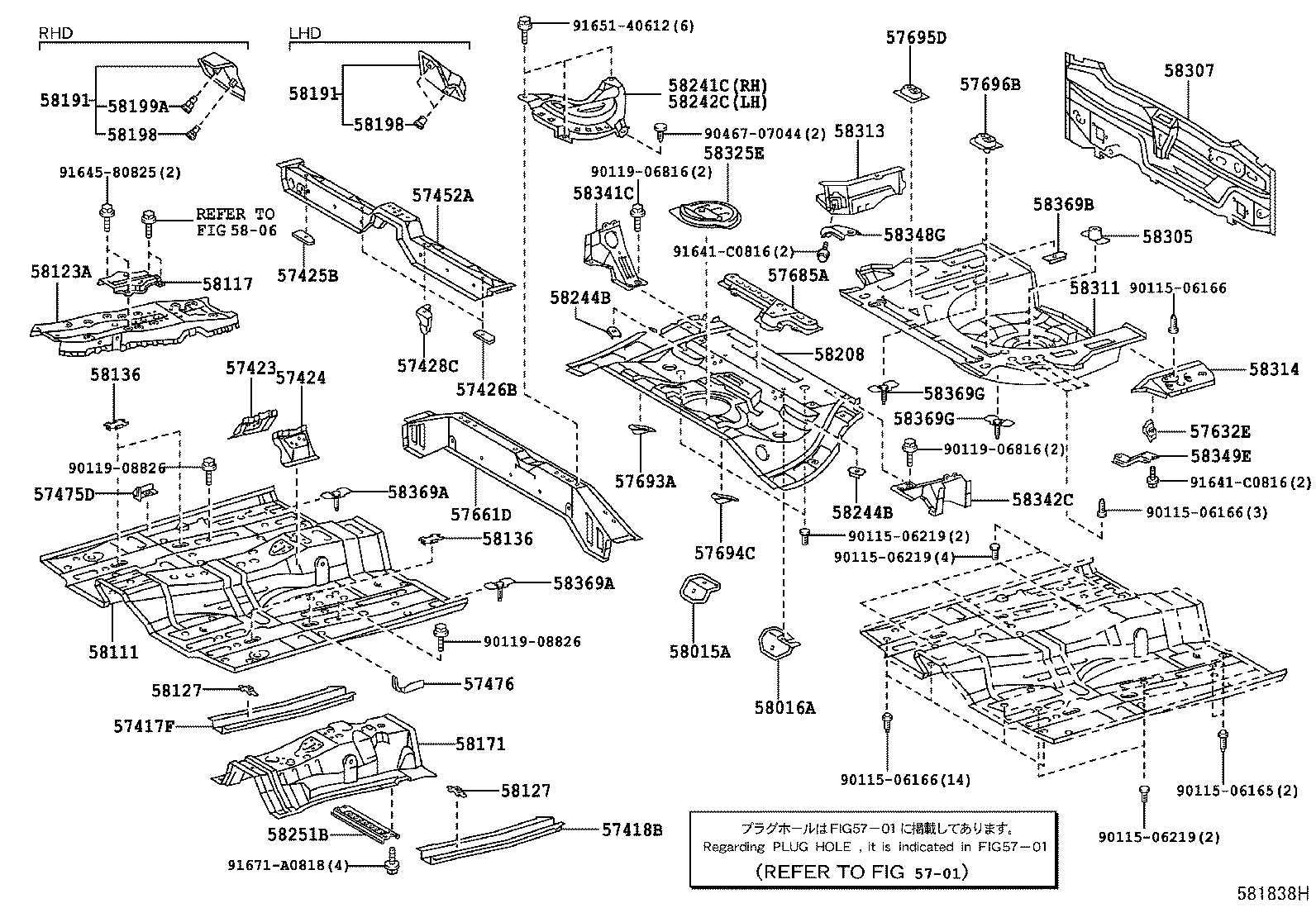

PRIUS | FLOOR PAN LOWER BACK PANEL ** Refer Fig 57417F - REINFORCEMENT, FRONT FLOOR UNDER, RH 57418B - REINFORCEMENT, FRONT FLOOR UNDER, LH 57423 - BRACKET, FRONT FLOOR REINFORCEMENT, RH 57424 - BRACKET, FRONT FLOOR REINFORCEMENT, LH 57425B - REINFORCEMENT, FRONT FLOOR, NO.2 RH 57426B - REINFORCEMENT, FRONT FLOOR, NO.2 LH 57428C - REINFORCEMENT, FRONT FLOOR, NO.3 LH 57452A - MEMBER, FRONT FLOOR CROSS, NO.2 57475D - PLATE, FRONT FLOOR CROSSMEMBER, RH 57476 - PLATE, FRONT FLOOR CROSSMEMBER, LH 57632E - EXTENSION, REAR FLOOR SIDE MEMBER, FR LH 57661D - MEMBER, REAR FLOOR CROSS, FRONT 57685A - BRACKET, REAR FLOOR MOUNTING, NO.1 RH 57693A - REINFORCEMENT, FUEL TANK MOUNTING BRACKET, RH 57694C - REINFORCEMENT, FUEL TANK MOUNTING BRACKET, LH 57695D - BRACKET, REAR FLOOR MOUNTING, NO.2 RH 57696B - BRACKET, REAR FLOOR MOUNTING, NO.2 LH 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH ** Refer Fig 58111 - PAN, FRONT FLOOR 58117 - REINFORCEMENT, FRONT FLOOR SIDE, NO.1 58123A - SUPPORT, SHIFT & SELECT LEVER 58127 - PATCH, FRONT FLOOR PANEL 58127 - PATCH, FRONT FLOOR PANEL 58136 - COVER, FRONT FLOOR HOLE 58136 - COVER, FRONT FLOOR HOLE 58171 - REINFORCEMENT, PARKING BRAKE BASE 58191 - FOOTREST, FRONT FLOOR 58191 - FOOTREST, FRONT FLOOR 58198 - CLIP, FOOTREST 58198 - CLIP, FOOTREST 58199A - CLIP, FOOTREST, NO.2 58208 - PAN, CENTER FLOOR 58241C - PANEL, FLOOR SIDE, RH 58242C - PANEL, FLOOR SIDE, LH 58244B - BRACKET, REAR SEAT CUSHION MOUNTING 58244B - BRACKET, REAR SEAT CUSHION MOUNTING 58251B - BRACE, FLOOR PANEL, FRONT 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58313 - PANEL, REAR FLOOR SIDE, RH 58314 - PANEL, REAR FLOOR SIDE, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58341C - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH 58342C - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH 58348G - PLATE, REAR FLOOR SIDE, RH 58349E - PLATE, REAR FLOOR SIDE, LH 58369A - BRACKET, FUEL TUBE, NO.3 58369A - BRACKET, FUEL TUBE, NO.3 58369B - BRACKET, FUEL TUBE, NO.3 58369G - BRACKET, FUEL TUBE, NO.3 58369G - BRACKET, FUEL TUBE, NO.3 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
